R11207 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

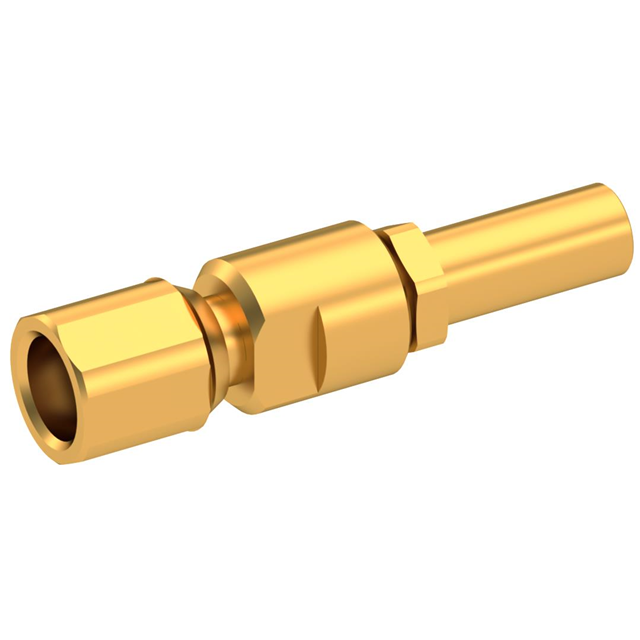

SMC / STRAIGHT PLUG CRIMP TYPE C
| Part | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Center Contact Plating | Insertion Loss | Connector Type | Shield Termination | Frequency - Max [Max] | Mounting Type | Connector Style | Impedance | Center Contact Material | Number of Ports | Contact Termination | Cable Group | Housing Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | 500 | Brass | Gold | 0.25 dB | Female Socket Plug | Crimp | 10 GHz | Free Hanging (In-Line) | SMC | 50 Ohms | Beryllium Copper | 1 | Crimp | 187 188 316 RG-179 | Gold | Threaded |
