PTC09 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 18POS 2.54MM

Part	Mounting Type	Style	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Type	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Contact Material	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Number of Positions Loaded	Insulation Color	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Length - Mating	Contact Length - Mating	Contact Shape	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Overall Contact Length	Overall Contact Length	Fastening Type	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows
Sullins Connector Solutions PTC09DAEN	Through Hole	Board to Board Cable	0.52 in	13.21 mm	3 A	Male Pin	2	0.1 "	2.54 mm	0.1 in	2.54 mm	18	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic	0.85 in	21.59 mm	Push-Pull
Sullins Connector Solutions PTC09DBEN	Right Angle Through Hole	Board to Board Cable	0.52 in	13.21 mm	3 A	Male Pin	2	0.1 "	2.54 mm			18	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic			Push-Pull	6.1 mm	0.24 in
Sullins Connector Solutions PTC09SAAN	Through Hole	Board to Board Cable	0.12 in	3.05 mm	3 A	Male Pin		0.1 "	2.54 mm	0.1 in	2.54 mm	9	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0			Solder	0.23 in	5.84 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic			Push-Pull			11.43 mm	0.45 in	1
Sullins Connector Solutions PTC09DABN	Through Hole	Board to Board Cable	0.23 "	5.84 mm	3 A	Male Pin	2	0.1 "	2.54 mm	0.1 in	2.54 mm	18	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic	0.56 in	14.22 mm	Push-Pull
Sullins Connector Solutions PTC09DADN	Through Hole	Board to Board Cable	0.42 in	10.67 mm	3 A	Male Pin	2	0.1 "	2.54 mm	0.1 in	2.54 mm	18	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic			Push-Pull			19.05 mm	0.75 in
Sullins Connector Solutions PTC09DBAN	Right Angle Through Hole	Board to Board Cable	0.12 in	3.05 mm	3 A	Male Pin	2	0.1 "	2.54 mm			18	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic			Push-Pull	6.1 mm	0.24 in
Sullins Connector Solutions PTC09SBBN	Right Angle Through Hole	Board to Board Cable	0.23 "	5.84 mm	3 A	Male Pin		0.1 "	2.54 mm	0.14 in	3.56 mm	9	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0			Solder	0.23 in	5.84 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic			Push-Pull					1
Sullins Connector Solutions PTC09DBCN	Right Angle Through Hole	Board to Board Cable	0.32 in	8.13 mm	3 A	Male Pin	2	0.1 "	2.54 mm			18	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0	0.1 in	2.54 mm	Solder	0.23 in	5.84 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic			Push-Pull	6.1 mm	0.24 in

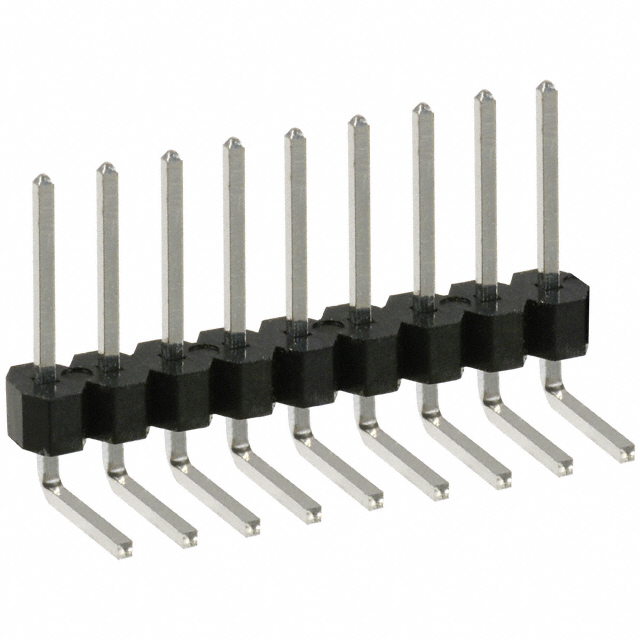

Sullins Connector Solutions PTC09SGBN	Right Angle Through Hole	Board to Board Cable	0.22 in	5.58 mm	3 A	Male Pin		0.1 "	2.54 mm	0.14 in	3.56 mm	9	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0			Solder	0.318 in	8.08 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic			Push-Pull					1
Sullins Connector Solutions PTC09SAEN	Through Hole	Board to Board Cable	0.52 in	13.21 mm	3 A	Male Pin		0.1 "	2.54 mm	0.1 in	2.54 mm	9	Copper Alloy	Tin	2.54 µm	100 µin	Header	All	Black	UL94 V-0			Solder	0.23 in	5.84 mm	Square	Unshrouded	100 çin	2.54 çm	Polyester Thermoplastic	0.85 in	21.59 mm	Push-Pull					1
