7700 Series

Manufacturer: 3M (TC)

Catalog

RIBBON CABLE, CONTROLLED IMPEDANCE, SPLICE FREE, SHIELDED, 50 CONDUCTOR, 30 AWG, 100 FT, 30.5 M

Part	Length	Length	Jacket (Insulation) Material	Voltage	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Pitch [x]	Pitch [x]	Wire Gauge	Number of Conductors	Cable Type	Jacket Color	Features	Shielding	Conductor Strand	Conductor Material	Insulation Resistance	Ribbon Width	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]

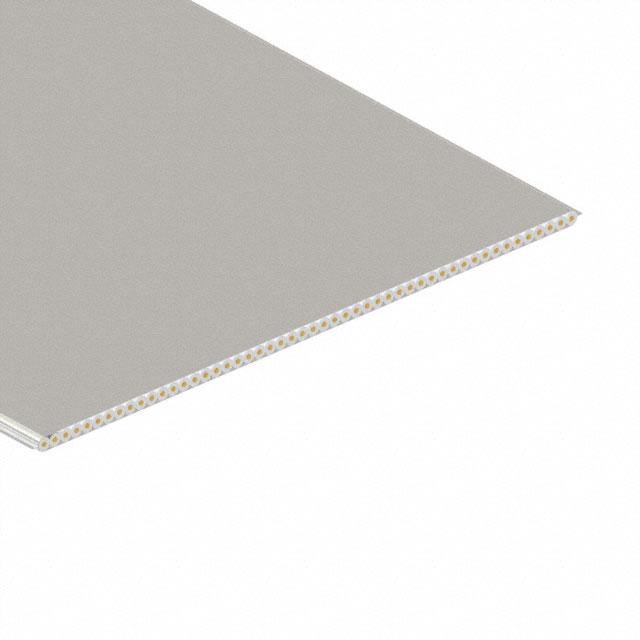

3M (TC) 7700/50 100'SF	1 ft 50 ft	15.24 m 304.8 mm	Polyolefin (PO)	30 V	3.05 m	10 ft	-20 C	80 C	0.03 in	0.76 mm	0.64 mm	0.025 in	30 AWG	50	Flat Cable	Silver	Splice Free	Unshielded	Solid	Copper Tinned	1 GOhms	1.3 "	33.02 mm
3M (TC) 7700/30 100'			Polyolefin (PO)	30 V	30.48 m	100 ft	-20 C	80 C	0.03 in	0.76 mm	0.64 mm	0.025 in	30 AWG	30	Flat Cable	Silver		Unshielded	Solid	Copper Tinned	1 GOhms			20.32 mm	0.8 in

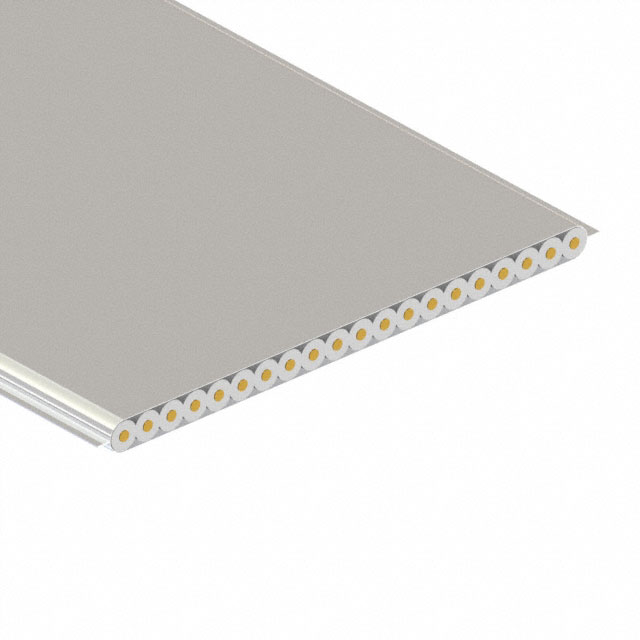

3M (TC) 7700/20 100'SF	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Polyolefin (PO)	30 V	3.05 m 30.48 m	10 ft 100 ft	-20 C	80 C	0.03 in	0.76 mm	0.64 mm	0.025 in	30 AWG	20	Flat Cable	Silver	Splice Free	Unshielded	Solid	Copper Tinned	1 GOhms	0.55 in	13.97 mm
3M (TC) 7700/100 100'			Polyolefin (PO)	30 V	30.48 m	100 ft	-20 C	80 C	0.03 in	0.76 mm	0.64 mm	0.025 in	30 AWG	100	Flat Cable	Silver		Unshielded	Solid	Copper Tinned	1 GOhms		64.77 mm			2.55 in
3M (TC) 7700/10 100'	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Polyolefin (PO)	30 V	3.05 m	10 ft	-20 C	80 C	0.03 in	0.76 mm	0.64 mm	0.025 in	30 AWG	10	Flat Cable	Silver		Unshielded	Solid	Copper Tinned	1 GOhms	0.3 in	7.62 mm

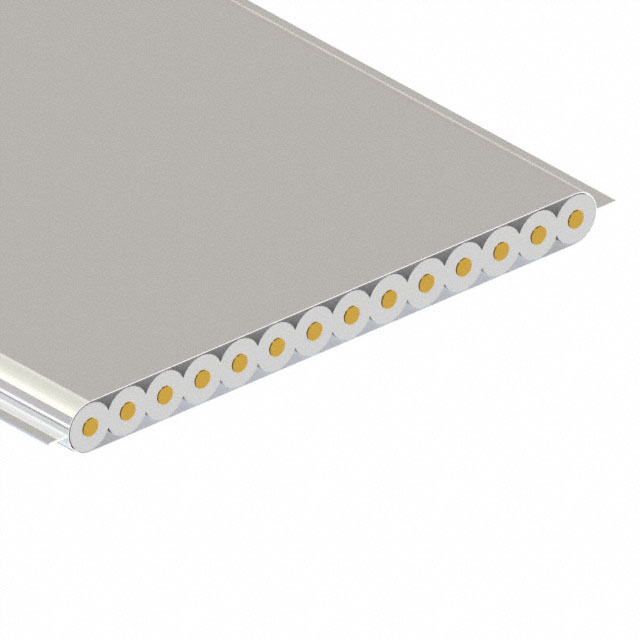

3M (TC) 7700/14 100'			Polyolefin (PO)	30 V	30.48 m	100 ft	-20 C	80 C	0.03 in	0.76 mm	0.64 mm	0.025 in	30 AWG	14	Flat Cable	Silver		Unshielded	Solid	Copper Tinned	1 GOhms	0.4 in	10.16 mm

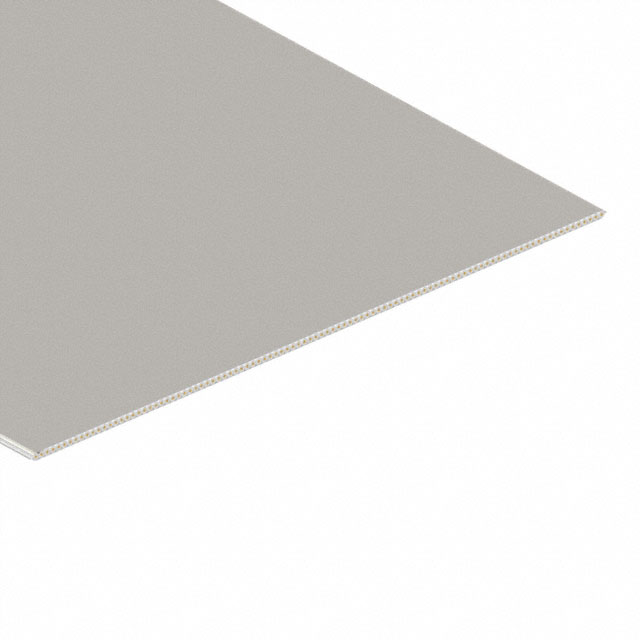

3M (TC) 7700/100 100'SF	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Polyolefin (PO)	30 V	3.05 m 30.48 m	10 ft 100 ft	-20 C	80 C	0.03 in	0.76 mm	0.64 mm	0.025 in	30 AWG	100	Flat Cable	Silver	Splice Free	Unshielded	Solid	Copper Tinned	1 GOhms		64.77 mm			2.55 in

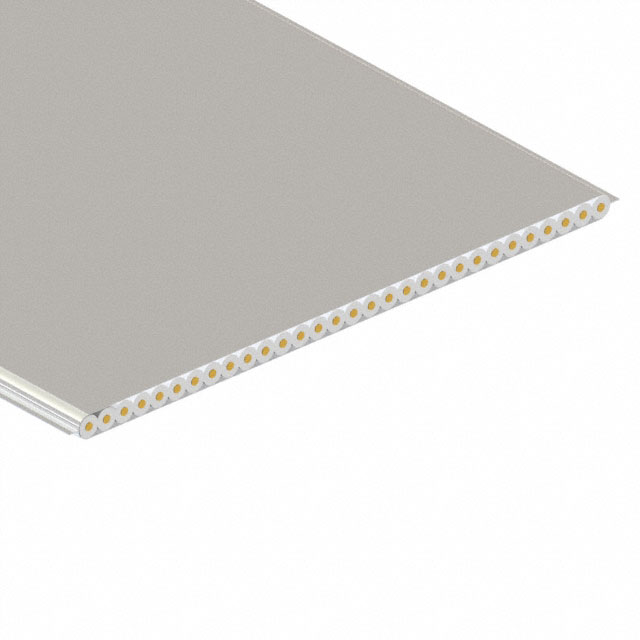

3M (TC) 7700/30 100'SF	1 ft	304.8 mm	Polyolefin (PO)	30 V			-20 C	80 C	0.03 in	0.76 mm	0.64 mm	0.025 in	30 AWG	30	Flat Cable	Silver	Splice Free	Unshielded	Solid	Copper Tinned	1 GOhms			20.32 mm	0.8 in

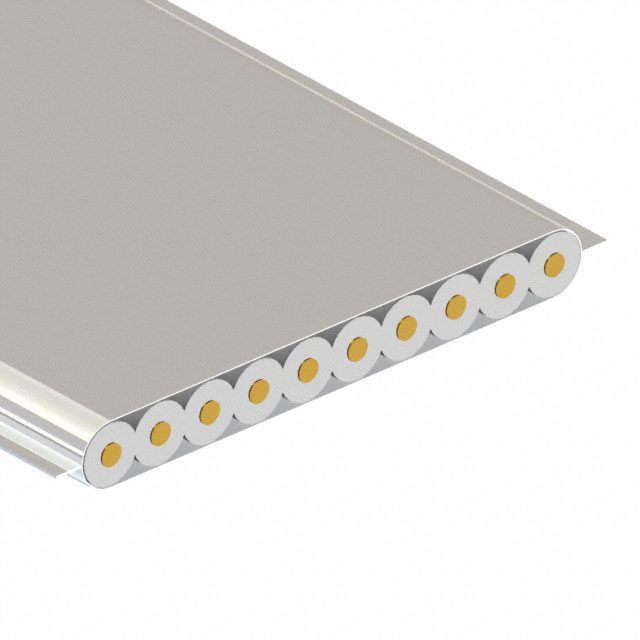

3M (TC) 7700/10 100'SF	50 ft	15.24 m	Polyolefin (PO)	30 V			-20 C	80 C	0.03 in	0.76 mm	0.64 mm	0.025 in	30 AWG	10	Flat Cable	Silver	Splice Free	Unshielded	Solid	Copper Tinned	1 GOhms	0.3 in	7.62 mm
