M1223 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

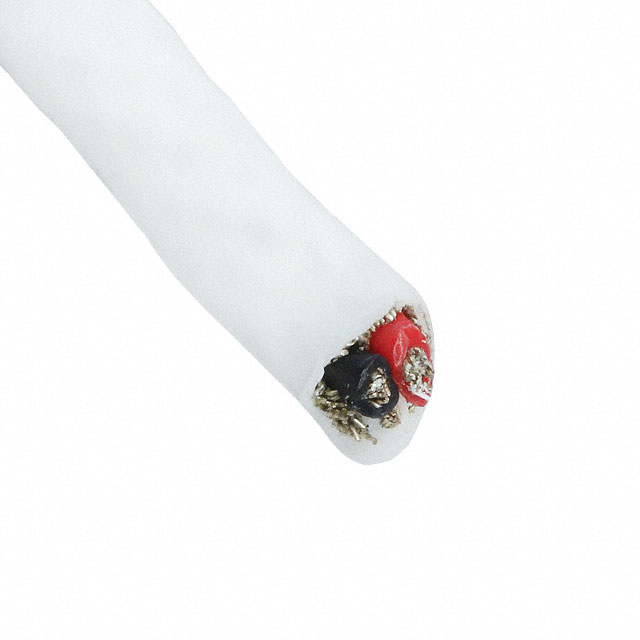

CABLE 3CON 22AWG WHT SHLD 100'
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Number of Conductors | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Length [x] | Length [x] | Cable Type | Shield Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Silver Coated | 200 °C | -55 C | 600 V | 3 | Copper Tinned | Polytetrafluoroethylene (PTFE) | 0.0118 in | 0.3 mm | Polytetrafluoroethylene (PTFE) | 34 AWG | 19 | White | 100 ft | 30.5 m | Multi-Conductor | Braid | 22 AWG |
