207615 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

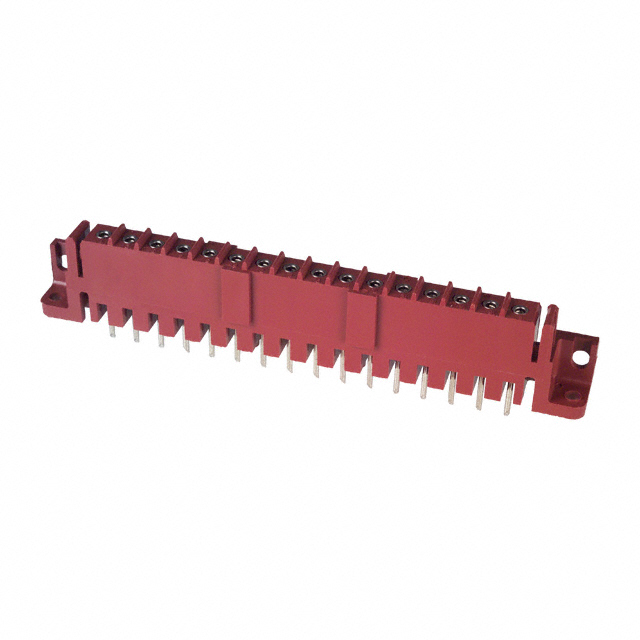

SKT HDR ASSY,16P,MMATE LF ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Positions Loaded | Contact Type | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Finish - Post | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Insulation Color | Number of Rows | Contact Shape | Current Rating (Amps) | Features | Fastening Type | Voltage Rating | Number of Positions | Termination | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 130 °C | -55 °C | Phosphor Bronze | All | Female Socket | Gold | 5 mm | 0.197 " | Through Hole | Tin | Header | 30 Áin | 0.76 Ám | 0.768 " | 19.5 mm | Board to Cable/Wire | 150 Áin | 3.81 Ám | Thermoplastic | Black Red | 1 | Circular | 7.5 A | Mounting Flange | Latch Holder | 600 V | 16 | Solder | UL94 V-0 |
 TE Connectivity Raychem Cable Protection | 130 °C | -55 °C | Phosphor Bronze | All | Female Socket | Tin-Lead | 5 mm | 0.197 " | Through Hole | Tin-Lead | Header | 150 Áin | 3.81 Ám | 0.768 " | 19.5 mm | Board to Cable/Wire | 150 Áin | 3.81 Ám | Thermoplastic | Black Red | 1 | Circular | 7.5 A | Mounting Flange | Latch Holder | 600 V | 16 | Solder | UL94 V-0 |
