234465 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

ANTENNA, EMBEDDED, PCB, 5.15 GHZ - 5.85 GHZ, 7 DBI, LINEAR, ADHESIVE, 150MM CABLE, MHF4 CONNECTOR

Part	Features	Frequency (Center/Band)	Gain	Height (Max)	Height (Max) [Max]	Number of Bands	VSWR	Frequency Range [Max]	Frequency Range [Min]	Termination	Antenna Type	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Mounting Type	Applications	RF Family/Standard	Features	Height (Max) [Max] [z]	Height (Max) [Max] [z]

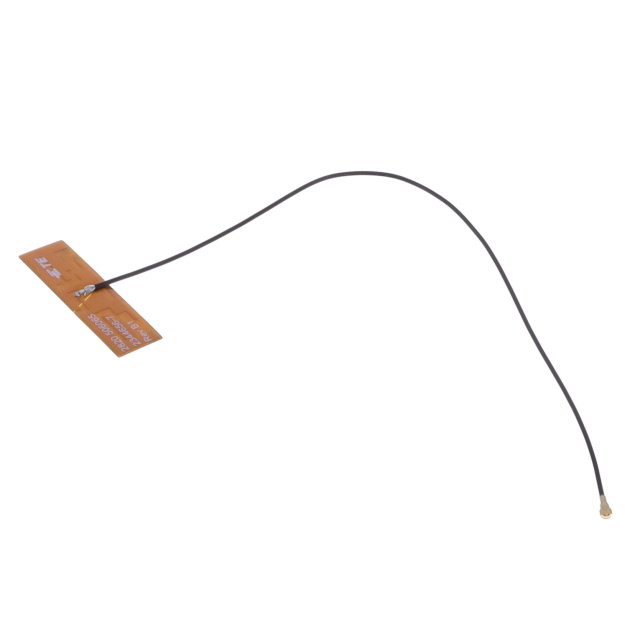

TE Connectivity Raychem Cable Protection 2344656-7	Cable - 150mm	2.45 GHz 5.5125 GHz	5 dBi	0.19 mm	0.007 in	2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi
TE Connectivity Raychem Cable Protection 2344656-8	Cable	2.45 GHz 5.5125 GHz	5 dBi	0.19 mm	0.007 in	2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi	200 mm
TE Connectivity Raychem Cable Protection 2344655-6	Cable	2.45 GHz 5.5125 GHz	5 dBi			2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi	100 mm	1 mm	0.039 in

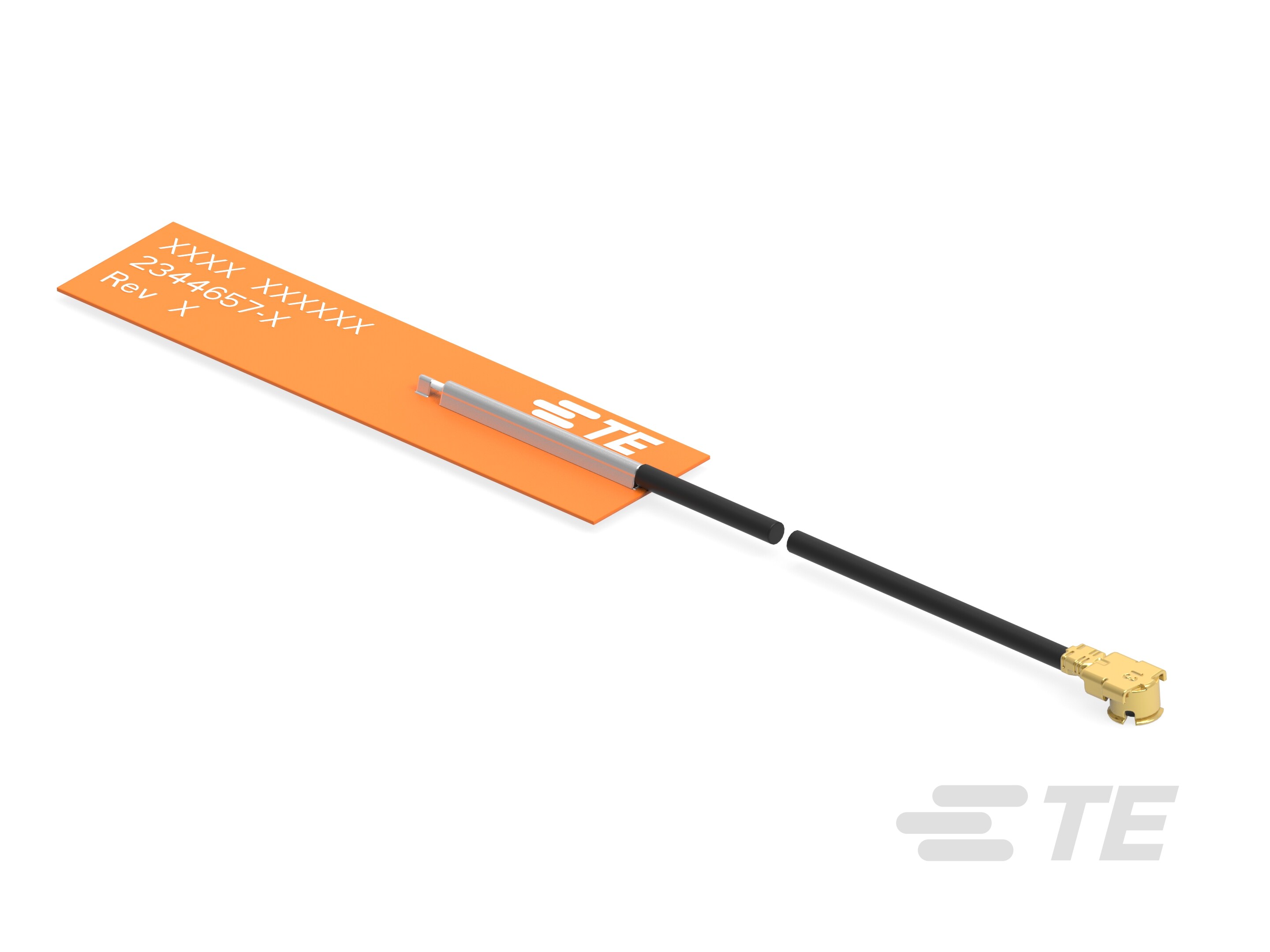

TE Connectivity Raychem Cable Protection 2344657-7	Cable - 150mm	2.45 GHz 5.5125 GHz	5 dBi	0.19 mm	0.007 in	2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi
TE Connectivity Raychem Cable Protection 2344654-8	Cable	2.45 GHz 5.5125 GHz	5 dBi			2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi	200 mm	1 mm	0.039 in

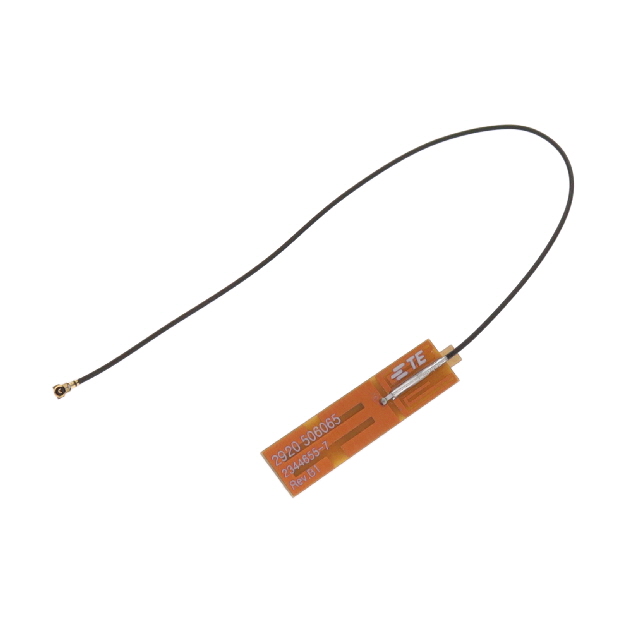

TE Connectivity Raychem Cable Protection 2344655-7	Cable - 150mm	2.45 GHz 5.5125 GHz	5 dBi			2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi		1 mm	0.039 in

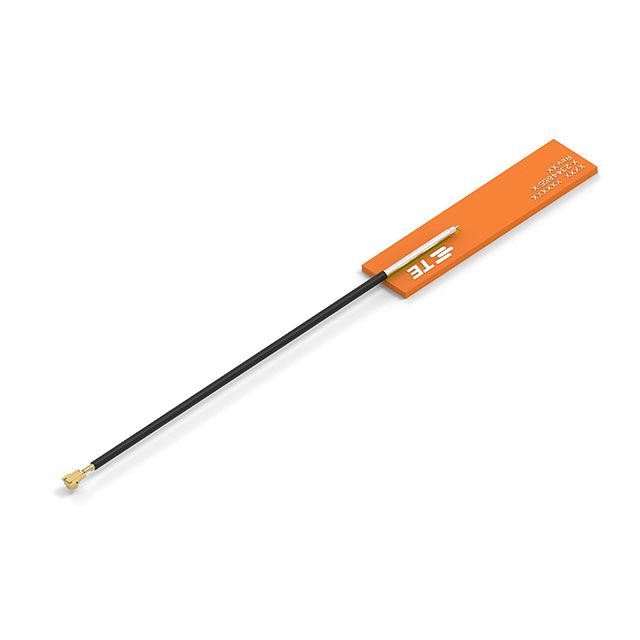

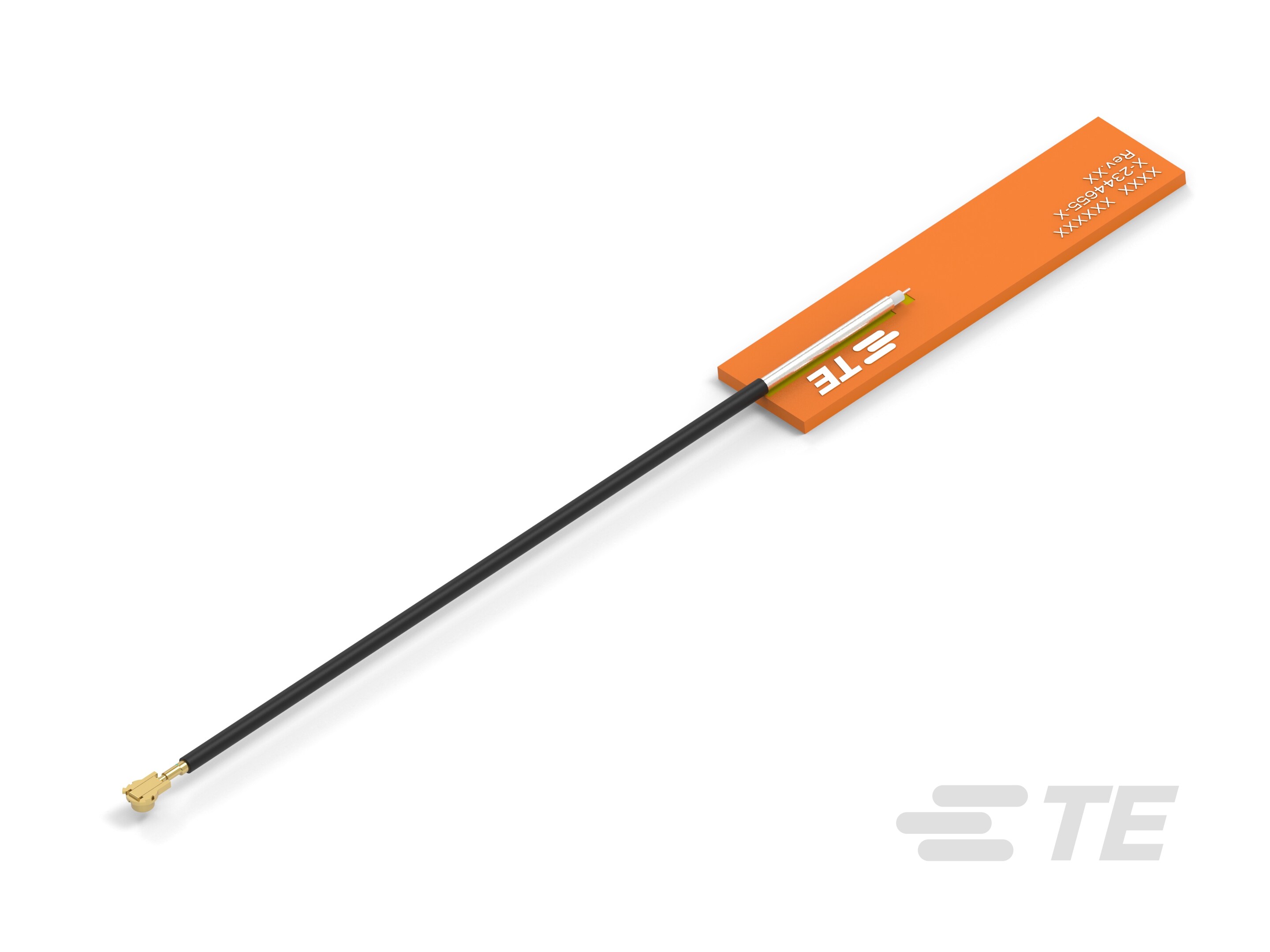

TE Connectivity Raychem Cable Protection 2344655-5	Cable	2.45 GHz 5.5125 GHz	5 dBi			2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi	50 mm	1 mm	0.039 in

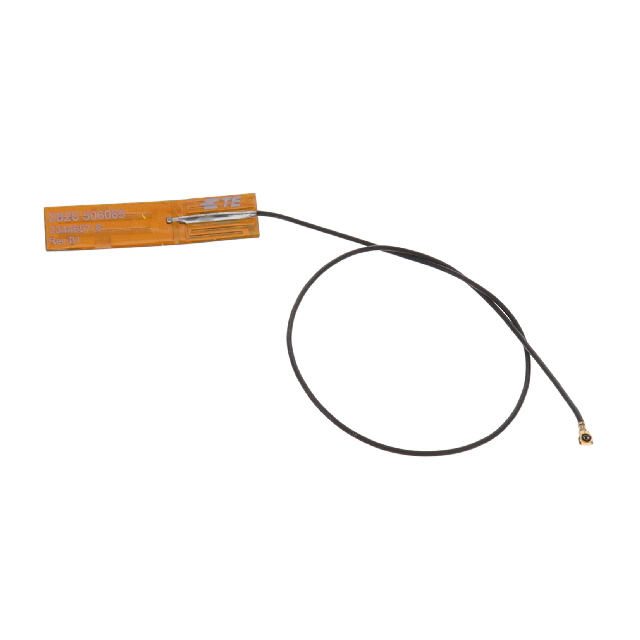

TE Connectivity Raychem Cable Protection 2344657-8	Cable	2.45 GHz 5.5125 GHz	5 dBi	0.19 mm	0.007 in	2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi	200 mm

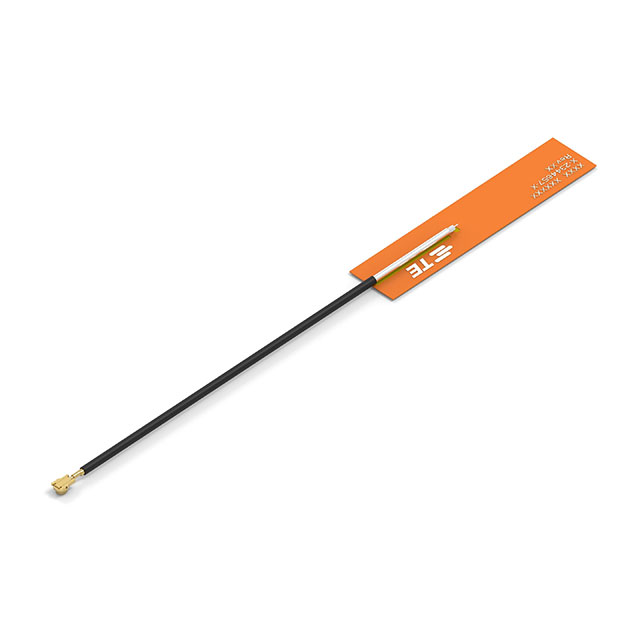

TE Connectivity Raychem Cable Protection 2344657-5	Cable	2.45 GHz 5.5125 GHz	5 dBi	0.19 mm	0.007 in	2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi	50 mm
TE Connectivity Raychem Cable Protection 2344654-7	Cable - 150mm	2.45 GHz 5.5125 GHz	5 dBi			2	2	2.5 GHz 5.875 GHz	2.4 GHz 5.15 GHz	IPEX MHF4 U.FL (UMCC)	PCB Trace	4 GHz	2 GHz	3 GHz	Adhesive	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi		1 mm	0.039 in
