0489-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter	Mounting Hole Diameter	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Termination	Contact Material	Contact Finish
Mill-Max Manufacturing Corp. 0489-1-15-80-11-27-04-0	-55 C	125 °C	Standard Tail	8.46 mm	0.333 in	0.041 in	1.04 mm	0.46 mm	0.018 in	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	30 Áin	0.76 Ám	3.05 mm	0.12 in	Press-Fit	Beryllium Copper	Gold
Mill-Max Manufacturing Corp. 0489-1-15-01-11-27-04-0	-55 C	125 °C	Standard Tail	8.46 mm	0.333 in	0.041 in	1.04 mm	0.46 mm	0.018 in	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	30 Áin	0.76 Ám	3.05 mm	0.12 in	Press-Fit	Beryllium Copper	Gold
Mill-Max Manufacturing Corp. 0489-1-15-01-11-14-04-0	-55 C	125 °C	Standard Tail	8.46 mm	0.333 in	0.041 in	1.04 mm	0.46 mm	0.018 in	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	10 Áin	0.25 Ám	3.05 mm	0.12 in	Press-Fit	Beryllium Copper	Gold
Mill-Max Manufacturing Corp. 0489-1-15-01-11-02-04-0	-55 C	125 °C	Standard Tail	8.46 mm	0.333 in	0.041 in	1.04 mm	0.46 mm	0.018 in	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	100 µin	2.54 µm	3.05 mm	0.12 in	Press-Fit	Beryllium Copper	Tin-Lead
Mill-Max Manufacturing Corp. 0489-1-15-15-11-14-04-0	-55 C	125 °C	Standard Tail	8.46 mm	0.333 in	0.041 in	1.04 mm	0.46 mm	0.018 in	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	10 Áin	0.25 Ám	3.05 mm	0.12 in	Press-Fit	Beryllium Copper	Gold

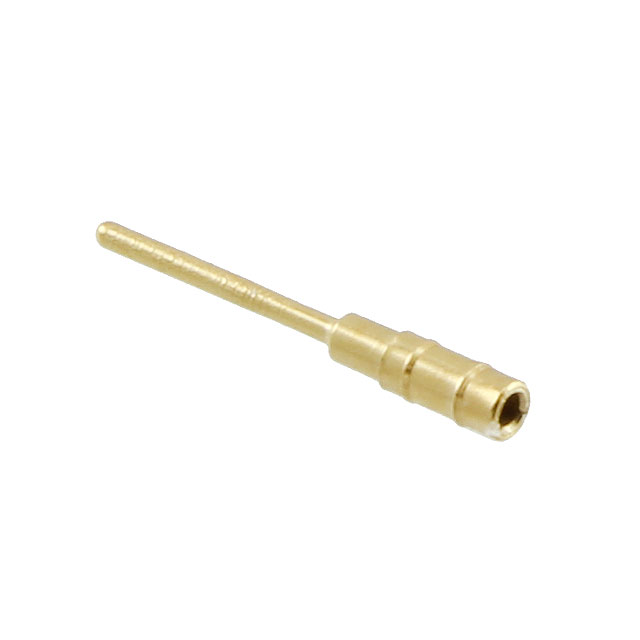

Mill-Max Manufacturing Corp. 0489-1-15-15-11-27-04-0	-55 C	125 °C	Standard Tail	8.46 mm	0.333 in	0.041 in	1.04 mm	0.46 mm	0.018 in	0.031 in	0.79 mm	0.02 in	0.38 mm	0.015 "	0.51 mm	30 Áin	0.76 Ám	3.05 mm	0.12 in	Press-Fit	Beryllium Copper	Gold
