CDTA28 Series
Manufacturer: ChromeLED
Beta
⌘K

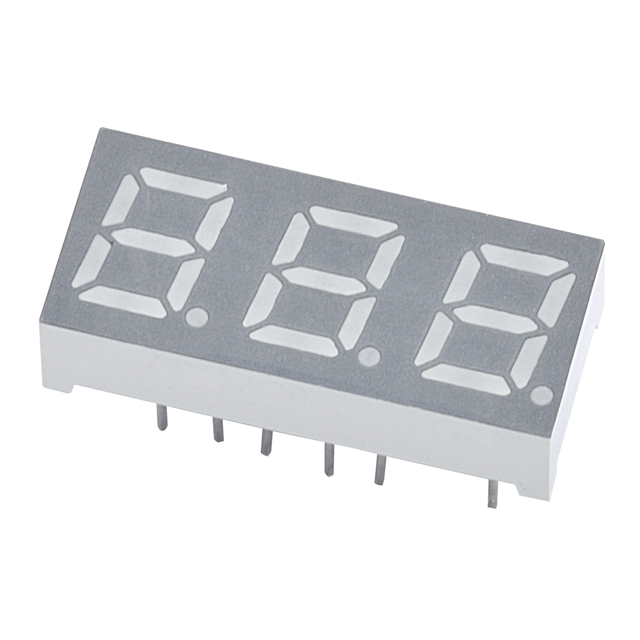

DISPLAY 7SEG 0.28" TRI RED 12DIP
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Current - Test | Power Dissipation (Max) [Max] | Wavelength - Peak | Digit/Alpha Size | Digit/Alpha Size | Package / Case | Common Pin | Display Type | Color | Number of Characters | Millicandela Rating | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ChromeLED | 22.6 mm | 0.236 in | 0.394 in | 0.89 in | 10 mm | 6 mm | 20 mA | 70 mW | 639 nm | 7 mm | 0.28 in | 12-DIP | Common Anode | 7-Segment | Red | 3 | 12 mcd | 2 V |
