PBC02 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 2POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Style	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish - Post	Material Flammability Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Type	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Number of Positions Loaded	Number of Rows	Insulation Color	Connector Type	Number of Positions	Shrouding	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PBC02SAGN	2.54 µm	100 µin	Solder	Board to Board Cable	0.72 "	18.29 mm	Gold	Tin	UL94 V-0	Through Hole	-65 ░C	125 °C	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	26.67 mm	1.05 in	0.23 in	5.84 mm	3 A	All	1	Black	Header Breakaway	2	Unshrouded	Square	0.25 µm	10 µin

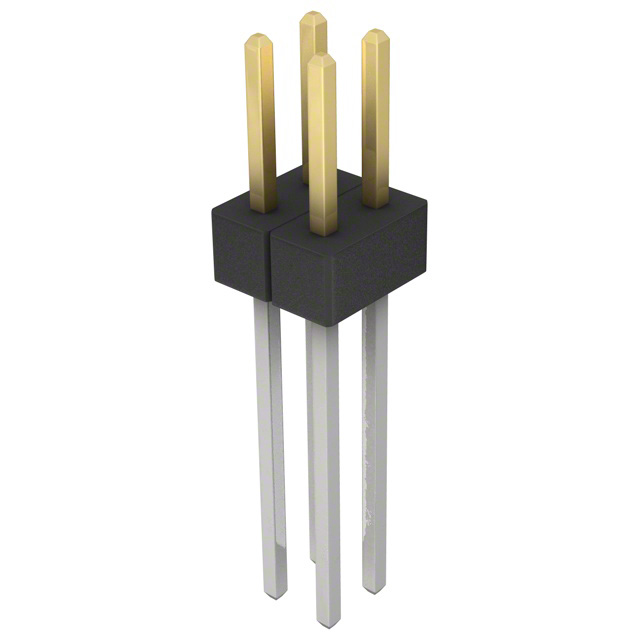

Sullins Connector Solutions PBC02DAEN	2.54 µm	100 µin	Solder	Board to Board Cable	0.52 in	13.21 mm	Gold	Tin	UL94 V-0	Through Hole	-65 ░C	125 °C	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	21.59 mm	0.85 in	0.23 in	5.84 mm	3 A	All		Black	Header Breakaway	4	Unshrouded	Square	0.25 µm	10 µin	2	0.1 in	2.54 mm

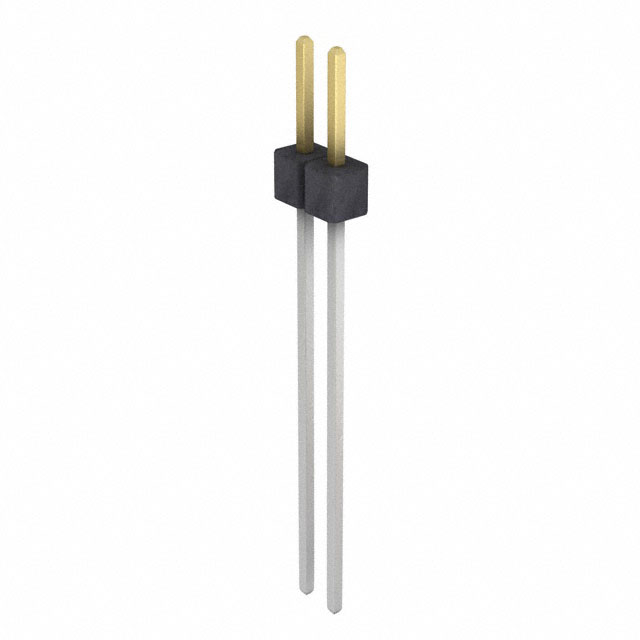

Sullins Connector Solutions PBC02SAFN	2.54 µm	100 µin	Solder	Board to Board Cable			Gold	Tin	UL94 V-0	Through Hole	-65 ░C	125 °C	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	24.13 mm	0.95 in	0.23 in	5.84 mm	3 A	All	1	Black	Header Breakaway	2	Unshrouded	Square	0.25 µm	10 µin				15.75 mm	0.62 "

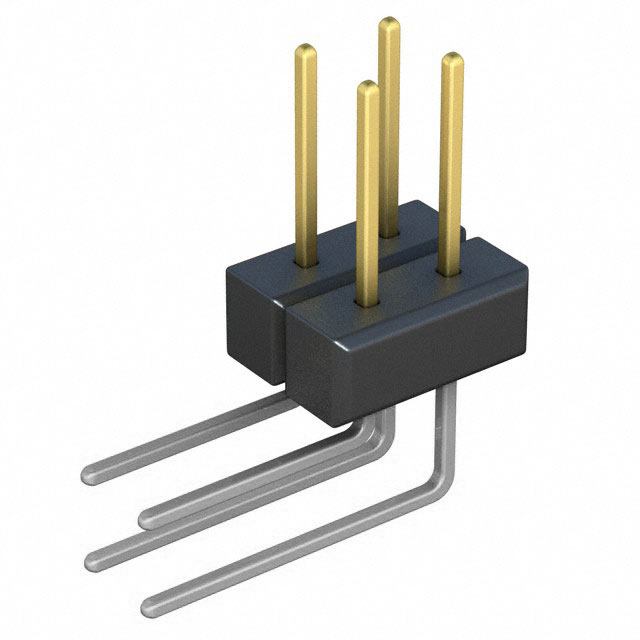

Sullins Connector Solutions PBC02DBBN	2.54 µm	100 µin	Solder	Board to Board Cable			Gold	Tin	UL94 V-0	Right Angle Through Hole	-65 ░C	125 °C	Phosphor Bronze			0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull			0.23 in	5.84 mm	3 A	All		Black	Header Breakaway	4	Unshrouded	Square	0.25 µm	10 µin	2	0.1 in	2.54 mm	5.08 mm	0.2 "	6.1 mm	0.24 in

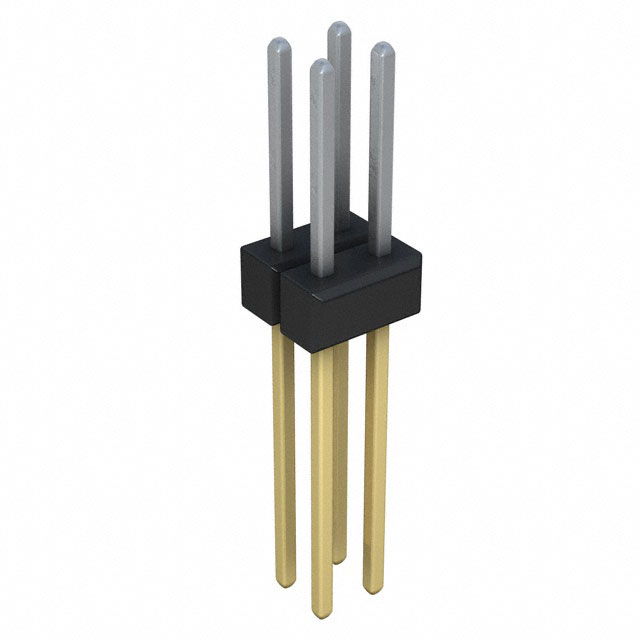

Sullins Connector Solutions PBC02DFEN	2.54 µm	100 µin	Solder	Board to Board Cable	0.52 in	13.21 mm	Gold	Tin	UL94 V-0	Through Hole	-65 ░C	125 °C	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	23.83 mm	0.938 in	0.318 in	8.08 mm	3 A	All		Black	Header Breakaway	4	Unshrouded	Square	0.25 µm	10 µin	2	0.1 in	2.54 mm

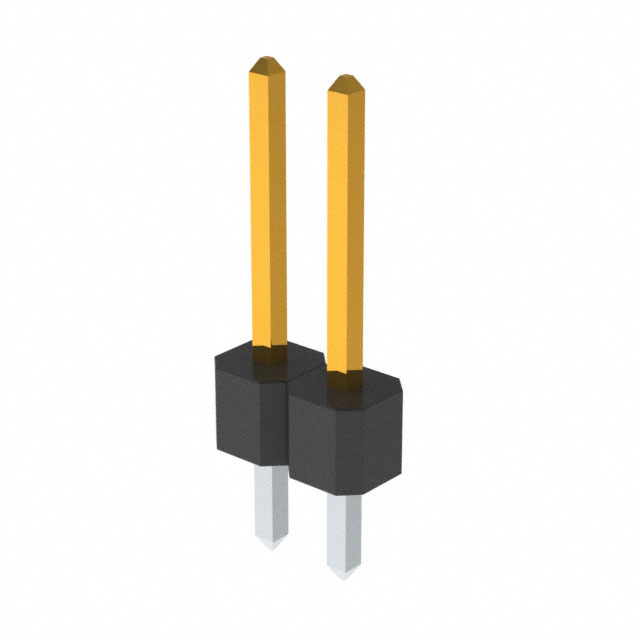

Sullins Connector Solutions PBC02SFAN	2.54 µm	100 µin	Solder	Board to Board Cable	0.12 in	3.05 mm	Gold	Tin	UL94 V-0	Through Hole	-65 ░C	125 °C	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull			0.318 in	8.08 mm	3 A	All	1	Black	Header Breakaway	2	Unshrouded	Square	0.25 µm	10 µin								13.67 mm	0.538 in

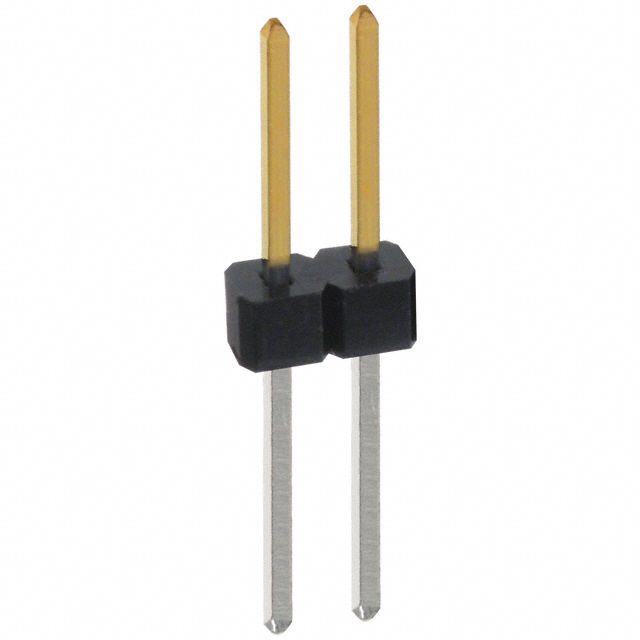

Sullins Connector Solutions PBC02SFBN	2.54 µm	100 µin	Solder	Board to Board Cable	0.22 in	5.58 mm	Gold	Tin	UL94 V-0	Through Hole	-65 ░C	125 °C	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	16.21 mm	0.638 in	0.318 in	8.08 mm	3 A	All	1	Black	Header Breakaway	2	Unshrouded	Square	0.25 µm	10 µin

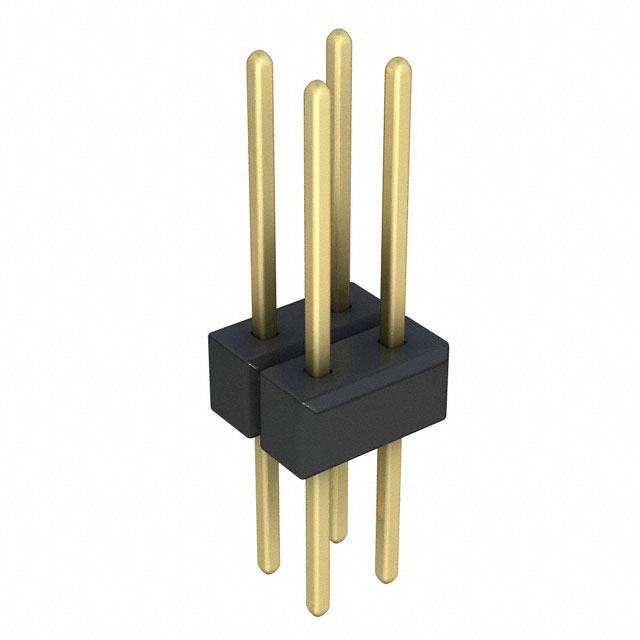

Sullins Connector Solutions PBC02DFBN	2.54 µm	100 µin	Solder	Board to Board Cable	0.22 in	5.58 mm	Gold	Tin	UL94 V-0	Through Hole	-65 ░C	125 °C	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	16.21 mm	0.638 in	0.318 in	8.08 mm	3 A	All		Black	Header Breakaway	4	Unshrouded	Square	0.25 µm	10 µin	2	0.1 in	2.54 mm

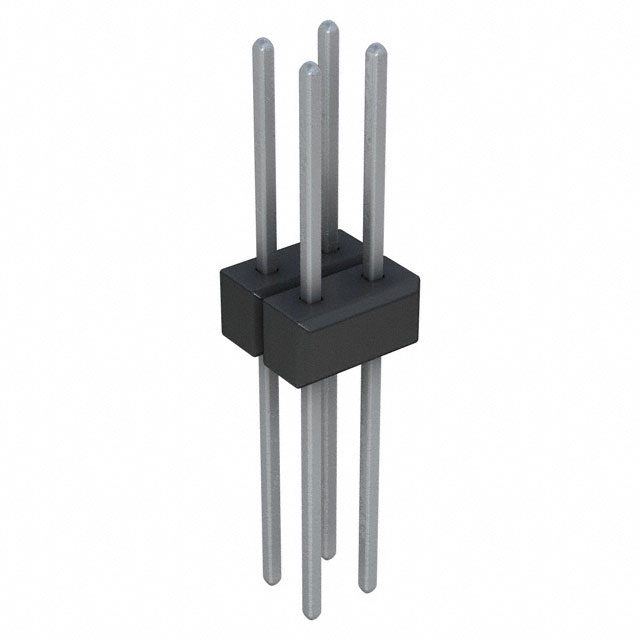

Sullins Connector Solutions PBC02DFDN	2.54 µm	100 µin	Solder	Board to Board Cable	0.42 in	10.67 mm	Gold	Tin	UL94 V-0	Through Hole	-65 ░C	125 °C	Phosphor Bronze	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull	21.29 mm	0.838 in	0.318 in	8.08 mm	3 A	All		Black	Header Breakaway	4	Unshrouded	Square	0.25 µm	10 µin	2	0.1 in	2.54 mm

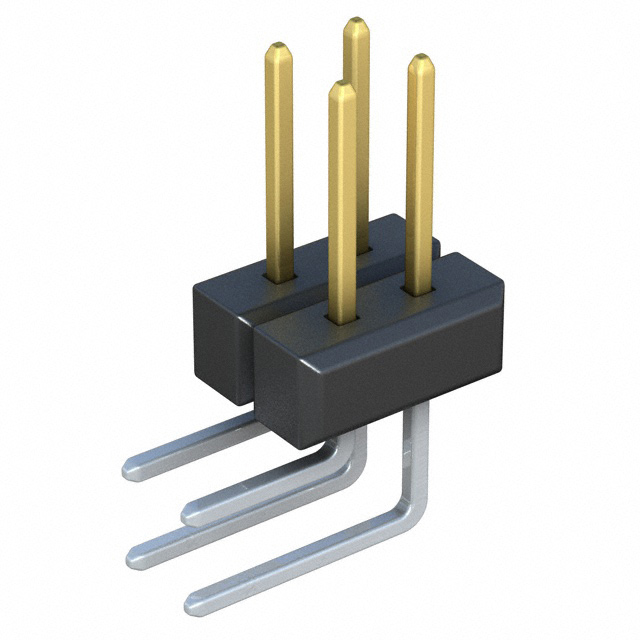

Sullins Connector Solutions PBC02DBAN	2.54 µm	100 µin	Solder	Board to Board Cable	0.1 in	2.54 mm	Gold	Tin	UL94 V-0	Right Angle Through Hole	-65 ░C	125 °C	Phosphor Bronze			0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	Male Pin	Push-Pull			0.23 in	5.84 mm	3 A	All		Black	Header Breakaway	4	Unshrouded	Square	0.25 µm	10 µin	2	0.1 in	2.54 mm			6.1 mm	0.24 in
