GWJCLPS2.E Series

Catalog

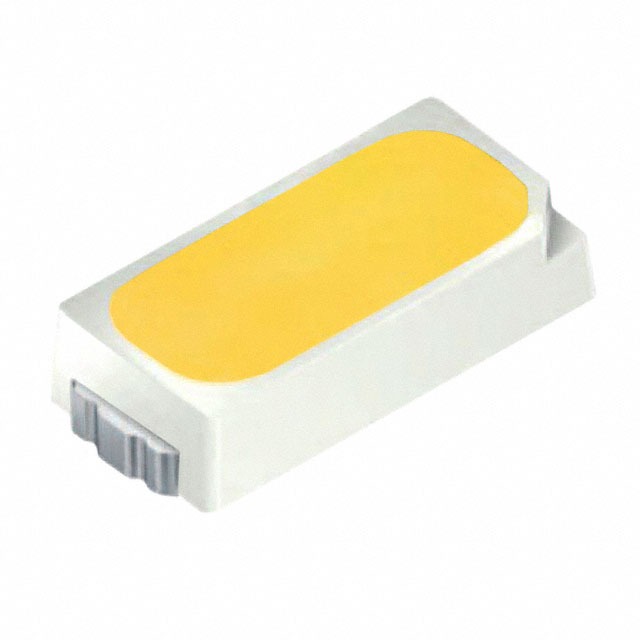

LED DURIS E2 WHITE SMD

Part	Viewing Angle	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Package / Case	Mounting Type	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Supplier Device Package	Thermal Resistance of Package	CCT (K)
ams-OSRAM USA INC. GW JCLPS2.EM-GUHQ-XX37-1-65-R18-XX	120 °	153 lm/W	80	1106 (2815 Metric)	Surface Mount	65 mA	0.7 mm	0.028 "	30 lm	1.4 mm	0.055 in	2.8 mm	0.11 in	White	3.02 V	150 mA	SMD
ams-OSRAM USA INC. GW JCLPS2.EM-HPHR-XX32-1-65-R18-XX	120 °	163 lm/W	80	1106 (2815 Metric)	Surface Mount	65 mA	0.7 mm	0.028 "	32 lm	1.4 mm	0.055 in	2.8 mm	0.11 in	White	3.02 V	150 mA	SMD
ams-OSRAM USA INC. GW JCLPS2.EM-HPHR-XX35-1-65-R18-XX	120 °	163 lm/W	80	1106 (2815 Metric)	Surface Mount	65 mA	0.7 mm	0.028 "	32 lm	1.4 mm	0.055 in	2.8 mm	0.11 in	White	3.02 V	150 mA	SMD
ams-OSRAM USA INC. GW JCLPS2.EM-HPHR-XX31-1-65-R18-XX	120 °	163 lm/W	80	1106 (2815 Metric)	Surface Mount	65 mA	0.7 mm	0.028 "	32 lm	1.4 mm	0.055 in	2.8 mm	0.11 in	White	3.02 V	150 mA	SMD
ams-OSRAM USA INC. GW JCLPS2.EM-GTHP-XX38-1-65-R18-XX	120 °	138 lm/W	80	1106 (2815 Metric)	Surface Mount	65 mA	0.7 mm	0.028 "	27 lm	1.4 mm	0.055 in	2.8 mm	0.11 in	White	3.02 V	150 mA	SMD
ams-OSRAM USA INC. GW JCLPS2.EM-H3H8-XX53-1-65-2-R33	120 °	193 lm/W	80	1106 (2815 Metric)	Surface Mount	65 mA	0.7 mm	0.028 "	37 lm	1.4 mm	0.055 in	2.8 mm	0.11 in	Neutral White	2.95 V	150 mA	SMD	34 °C/W	4000 K
