316-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN SOCKET 13POS 0.1 GOLD PCB

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Mounting Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Termination	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Number of Positions	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Finish - Mating	Number of Positions Loaded	Insulation Height [custom]	Insulation Height [custom]
Mill-Max Manufacturing Corp. 316-43-113-61-007000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	13	10.2 mm	0.402 in	0.118 in	3 mm	Push-Pull	Gold	All

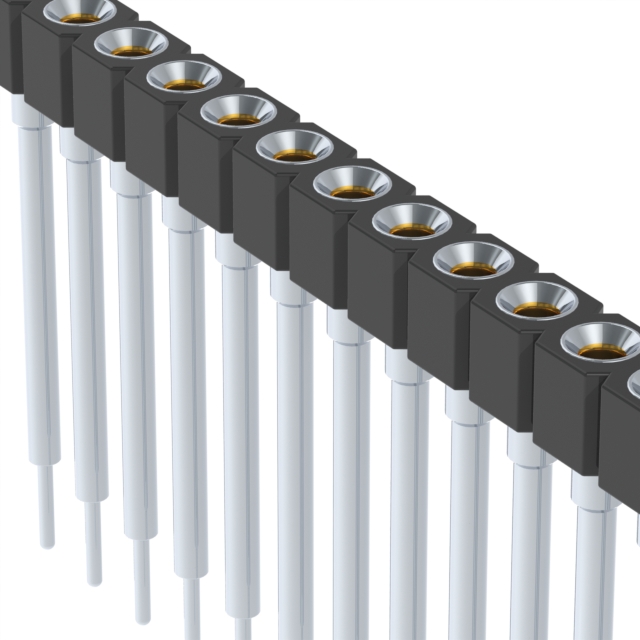

Mill-Max Manufacturing Corp. 316-43-123-61-001000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	23	15.09 mm	0.594 in	0.118 in	3 mm	Push-Pull	Gold	All
Mill-Max Manufacturing Corp. 316-43-152-61-001000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	52	15.09 mm	0.594 in	0.118 in	3 mm	Push-Pull	Gold	All
Mill-Max Manufacturing Corp. 316-43-136-41-001000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	36	15.09 mm	0.594 in	0.118 in	3 mm	Push-Pull	Gold	All
Mill-Max Manufacturing Corp. 316-43-157-61-003000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	57	8 mm	0.315 in	0.118 in	3 mm	Push-Pull	Gold	All
Mill-Max Manufacturing Corp. 316-43-153-61-006000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	53			0.118 in	3 mm	Push-Pull	Gold	All	0.236 "	6 mm

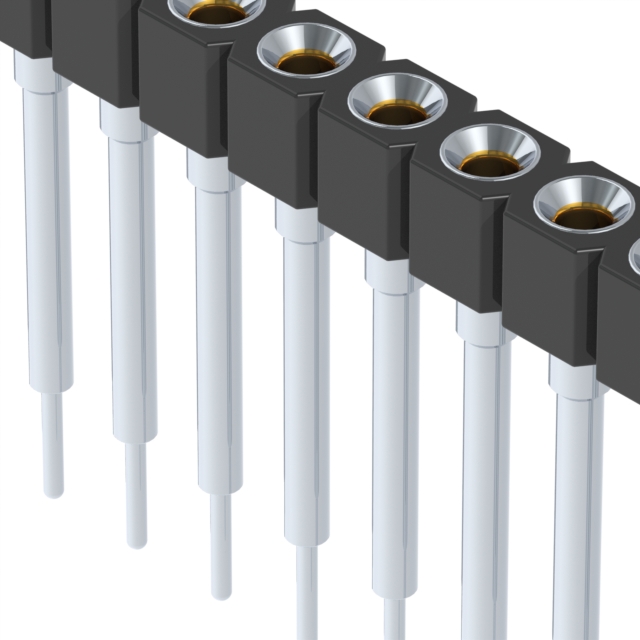

Mill-Max Manufacturing Corp. 316-43-110-61-008000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	10	12 mm	0.472 "	0.118 in	3 mm	Push-Pull	Gold	All
Mill-Max Manufacturing Corp. 316-43-162-41-001000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	62	15.09 mm	0.594 in	0.118 in	3 mm	Push-Pull	Gold	All
Mill-Max Manufacturing Corp. 316-43-154-61-006000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	54			0.118 in	3 mm	Push-Pull	Gold	All	0.236 "	6 mm

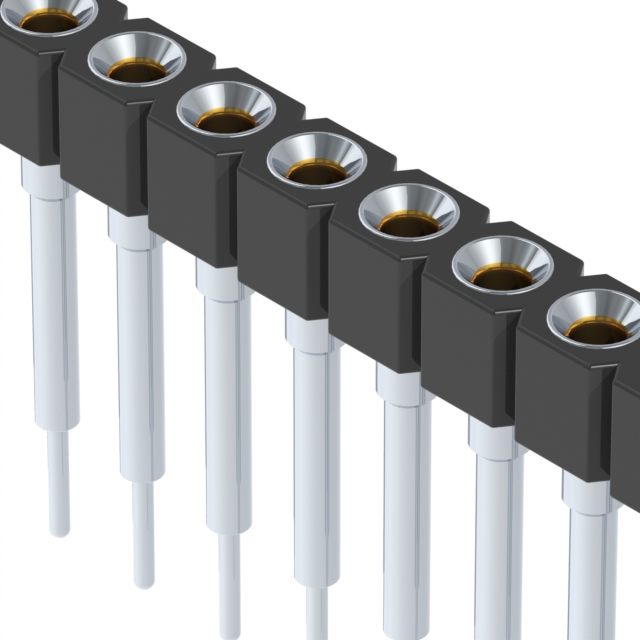

Mill-Max Manufacturing Corp. 316-43-120-41-007000	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Through Hole	UL94 V-0	0.1 "	2.54 mm	Female Socket	Tin	Solder	1	0.76 Ám	30 Áin	3 A	-55 C	125 °C	Elevated Socket	Black	20	10.2 mm	0.402 in	0.118 in	3 mm	Push-Pull	Gold	All
