M2022E2 Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Electrical Life	Actuator Material	Termination Style	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Features	Mounting Type	Circuit	Current Rating (Amps)	Bushing Thread	Illumination	Actuator Length [x]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC
NKK Switches M2022E2S1W01	25000 Steps	Brass Chrome Plated	Solder Lug	125 V	6.5 mm	Epoxy Sealed Terminals	Panel Mount	DPDT	4 A 6 A	1/4-40	Non-Illuminated	6.5 mm	Flatted	85 °C	-30 ░C	On-On	30 V
NKK Switches M2022E2S1W30	25000 Steps	Brass Chrome Plated	PC Pin	125 V	6.5 mm	Epoxy Sealed Terminals	Right Angle Through Hole	DPDT	4 A 6 A	1/4-40	Non-Illuminated	6.5 mm	Flatted	85 °C	-30 ░C	On-On	30 V

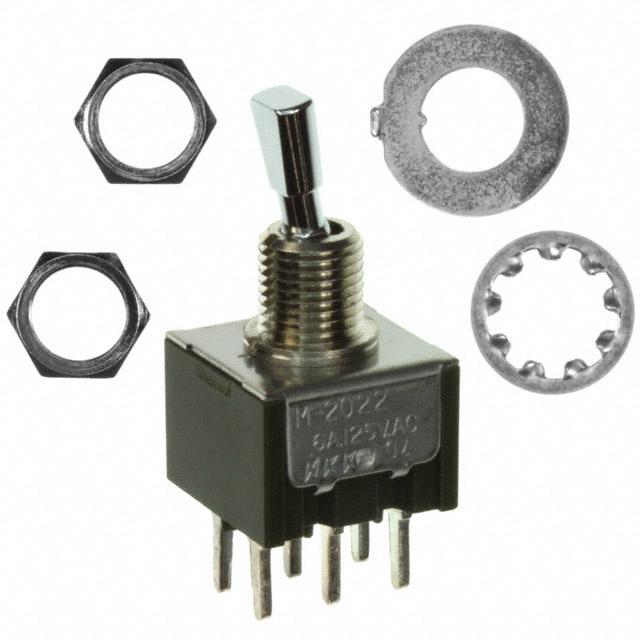

NKK Switches M2022E2A1W03	25000 Steps	Brass Chrome Plated	PC Pin	125 V	6.5 mm	Epoxy Sealed Terminals	Panel Mount	DPDT	4 A 6 A	1/4-40	Non-Illuminated	6.5 mm	Flatted	85 °C	-30 ░C	On-On	30 V
