9402 Series
Manufacturer: Belden Inc.
Beta
⌘K

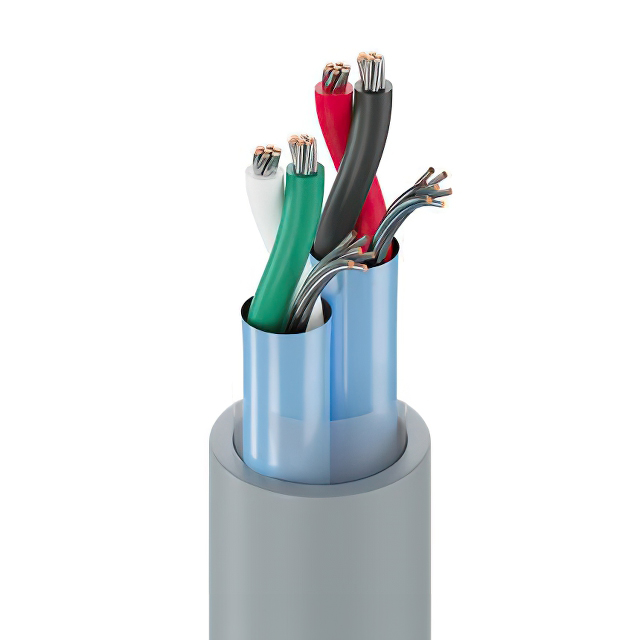

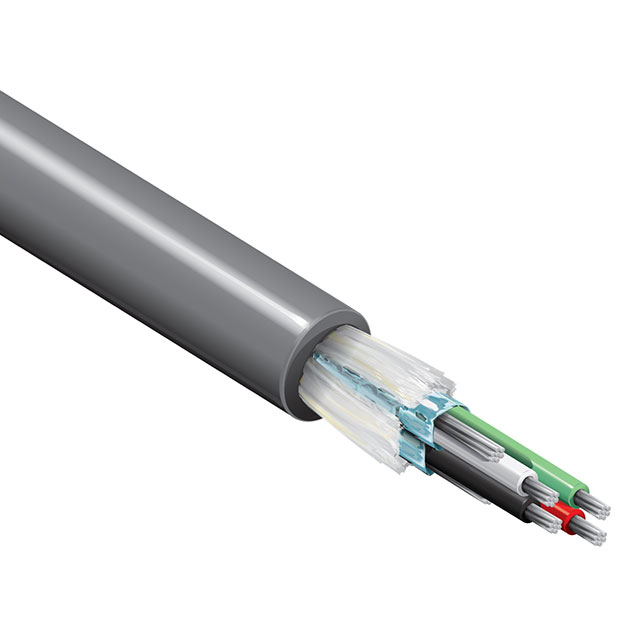

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 2 PAIR, 20 AWG, 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Features | Wire Gauge | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Conductor Insulation | Jacket Color | Length | Length | Cable Type | Voltage | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 28 AWG | 7 | Drain Wire | 20 AWG | Foil | 1.041 mm | 0.041 in | Copper Tinned | Audio Control Instrumentation | 7.62 mm | 0.3 in | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 4 | Poly-Vinyl Chloride (PVC) | Chrome | 152.4 m | 500 ft | Multi-Pair | ||
 Belden Inc. | 100 % | Aluminum | 28 AWG | 7 | Drain Wire | 20 AWG | Foil | 1.041 mm | 0.041 in | Copper Tinned | Audio Control Instrumentation | 7.62 mm | 0.3 in | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 4 | Poly-Vinyl Chloride (PVC) | Chrome | 304.8 m | 1000 ft | Multi-Pair | 300 VDC | UL Style 2937 |
