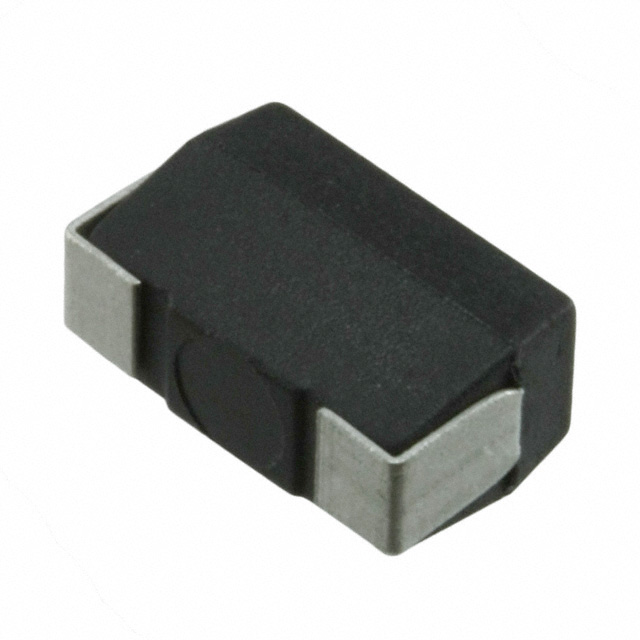

PWR3014 Series

Catalog

SMD CHIP RESISTOR, 1.5 OHM, ± 5%, 1 W, SMD, WIREWOUND, HIGH POWER

Part	Package / Case	Power (Watts)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Terminations [custom]	Supplier Device Package	Tolerance	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Resistance
Bourns Inc. PWR3014WA1R50JE	3014 J-Lead	1 W	Current Sense Pulse Withstanding	155 C	-55 C	Wirewound	0.203 in	5.15 mm	2	3014	5 %	50 ppm/░C	0.295 "	7.5 mm	3.5 mm	0.138 in	1.5 Ohms
Bourns Inc. PWR3014WA2R20JE	3014 J-Lead	1 W	Current Sense Pulse Withstanding	155 C	-55 C	Wirewound	0.203 in	5.15 mm	2	3014	5 %	50 ppm/░C	0.295 "	7.5 mm	3.5 mm	0.138 in	2.2 Ohms
Bourns Inc. PWR3014WR500JE	3014 J-Lead	1 W	Current Sense Pulse Withstanding	155 C	-55 C	Wirewound	0.203 in	5.15 mm	2	3014	5 %	90 ppm/°C	0.295 "	7.5 mm	3.5 mm	0.138 in	500 mOhms
Bourns Inc. PWR3014W33R0JE	3014 J-Lead	1 W	Current Sense Pulse Withstanding	155 C	-55 C	Wirewound	0.203 in	5.15 mm	2	3014	5 %	20 ppm/°C	0.295 "	7.5 mm	3.5 mm	0.138 in	33 Ohms
Bourns Inc. PWR3014W20R0JE	3014 J-Lead	1 W	Current Sense Pulse Withstanding	155 C	-55 C	Wirewound	0.203 in	5.15 mm	2	3014	5 %	20 ppm/°C	0.295 "	7.5 mm	3.5 mm	0.138 in	20 Ohms
Bourns Inc. PWR3014W5R00JE	3014 J-Lead	1 W	Current Sense Pulse Withstanding	155 C	-55 C	Wirewound	0.203 in	5.15 mm	2	3014	5 %	50 ppm/░C	0.295 "	7.5 mm	3.5 mm	0.138 in	5 Ohms
Bourns Inc. PWR3014W24R0JE	3014 J-Lead	1 W	Current Sense Pulse Withstanding	155 C	-55 C	Wirewound	0.203 in	5.15 mm	2	3014	5 %	20 ppm/°C	0.295 "	7.5 mm	3.5 mm	0.138 in	24 Ohms
Bourns Inc. PWR3014W47R0FE	3014 J-Lead	1 W	Current Sense Pulse Withstanding	155 C	-55 C	Wirewound	0.203 in	5.15 mm	2	3014	1 %	20 ppm/°C	0.295 "	7.5 mm	3.5 mm	0.138 in	47 Ohms
Bourns Inc. PWR3014W2R00JE	3014 J-Lead	1 W	Current Sense Pulse Withstanding	155 C	-55 C	Wirewound	0.203 in	5.15 mm	2	3014	5 %	50 ppm/░C	0.295 "	7.5 mm	3.5 mm	0.138 in	2 Ohms
