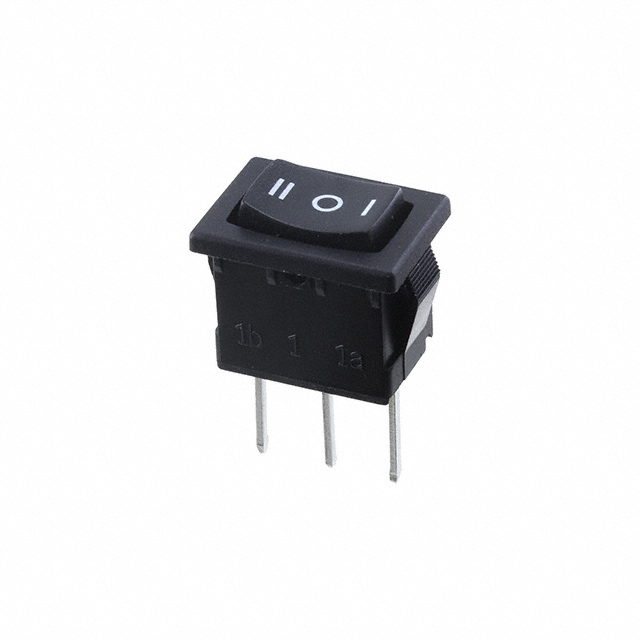

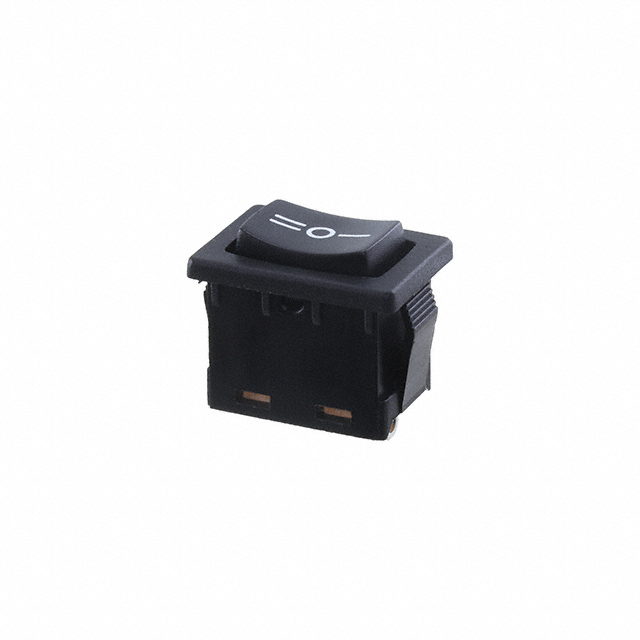

R1966DBL Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER SPDT 15A 125V

Part	Mechanical Life	Electrical Life	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Color - Actuator/Cap	Circuit	Actuator Marking	Current Rating (Amps)	Switch Function	Actuator Type

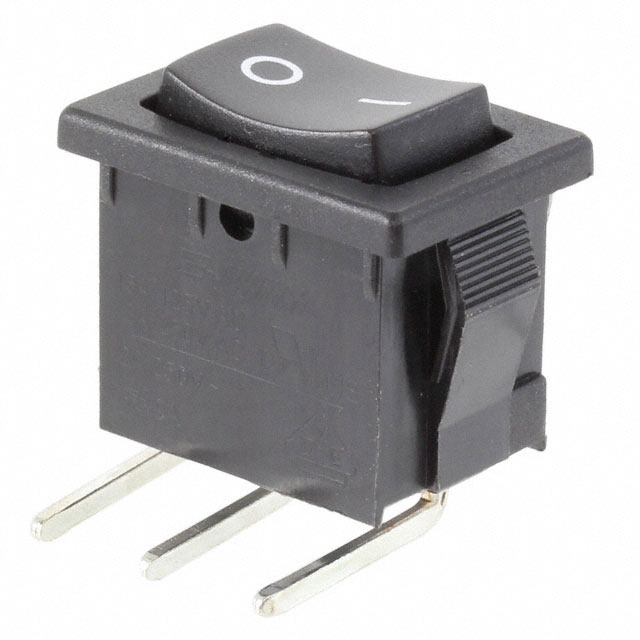

E-Switch R1966DBLKBLKFR	30000 Steps	10000 Cycles	PC Pin	Panel Mount Right Angle Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Black	SPDT	O -	15 A	On-Off-On	Concave (Curved)
E-Switch R1966DBLKBLKHS	30000 Steps	10000 Cycles	Solder Lug	Panel Mount Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Black	SPDT	Triangular Arrows with O	15 A	On-Off-On	Concave (Curved)
E-Switch R1966DBLKBLKBR	30000 Steps	10000 Cycles	PC Pin	Panel Mount Right Angle Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Black	SPDT	I O II	15 A	On-Off-On	Concave (Curved)

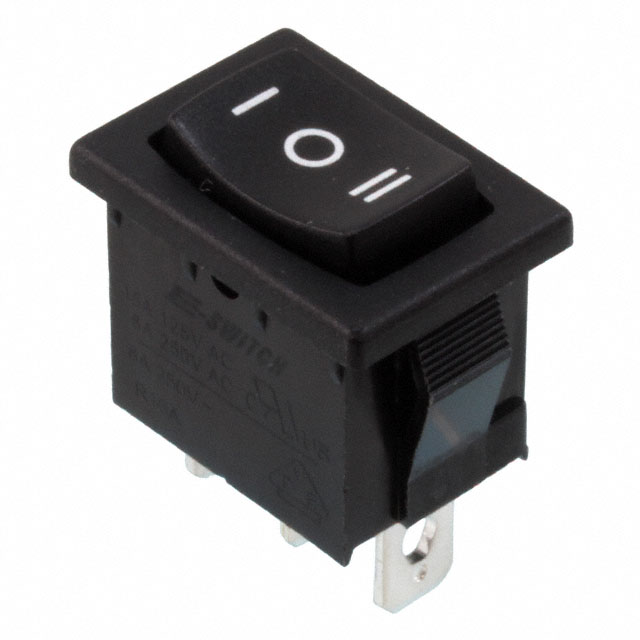

E-Switch R1966DBLKBLKBF	30000 Steps	10000 Cycles	Quick Connect	Panel Mount Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Black	SPDT	I O II	15 A	On-Off-On	Concave (Curved)
E-Switch R1966DBLKBLKBP	30000 Steps	10000 Cycles	PC Pin	Panel Mount Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Black	SPDT	I O II	15 A	On-Off-On	Concave (Curved)

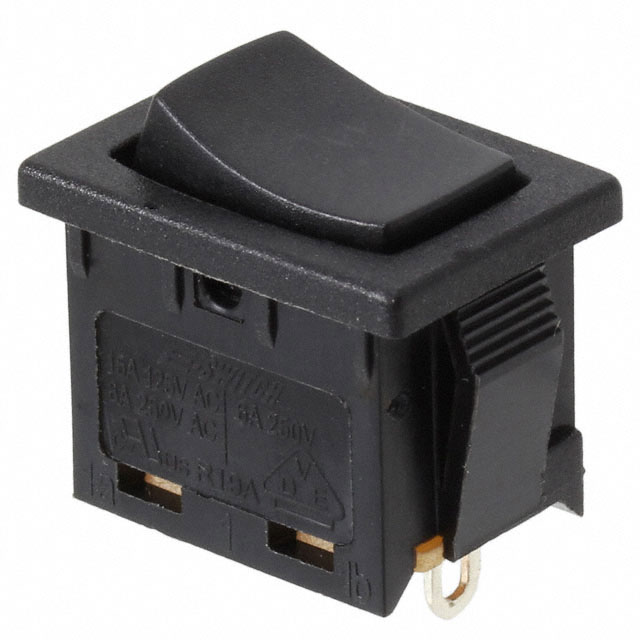

E-Switch R1966DBLKBLKES	30000 Steps	10000 Cycles	Solder Lug	Panel Mount Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Black	SPDT	No Marking	15 A	On-Off-On	Concave (Curved)

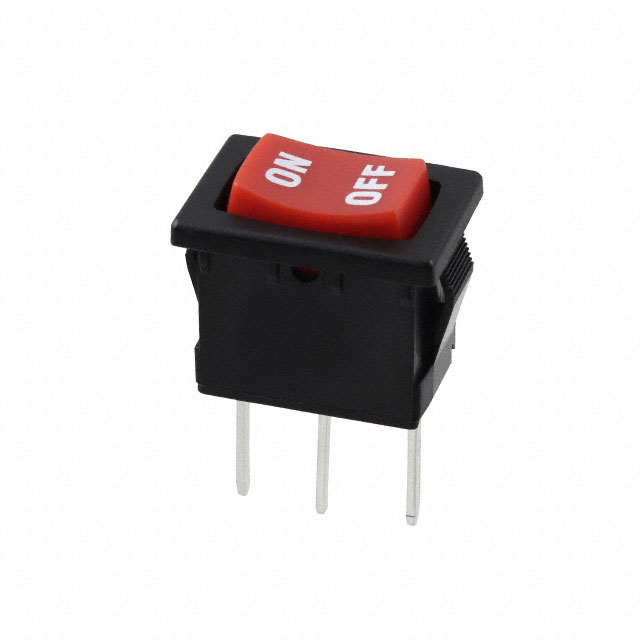

E-Switch R1966DBLKREDIP	30000 Steps	10000 Cycles	PC Pin	Panel Mount Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Red	SPDT	ON OFF	15 A	On-Off-On	Concave (Curved)
E-Switch R1966DBLKBLKBS	30000 Steps	10000 Cycles	Solder Lug	Panel Mount Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Black	SPDT	I O II	15 A	On-Off-On	Concave (Curved)
E-Switch R1966DBLKBLKCS	30000 Steps	10000 Cycles	Solder Lug	Panel Mount Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Black	SPDT	- O =	15 A	On-Off-On	Concave (Curved)

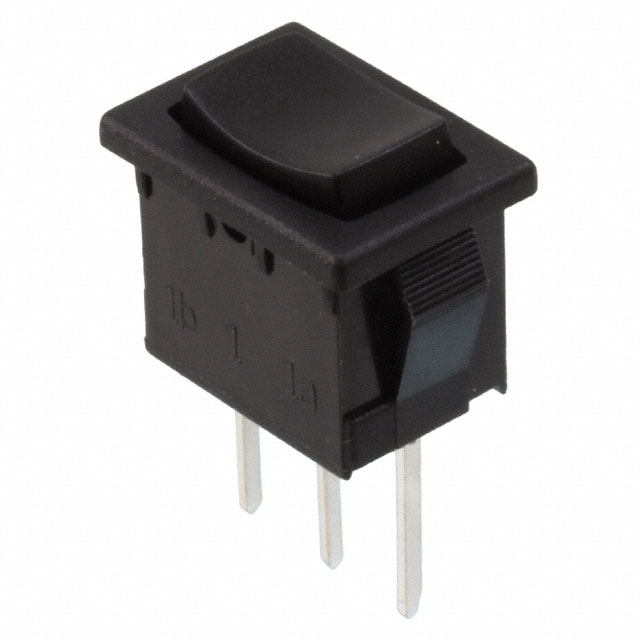

E-Switch R1966DBLKBLKEP	30000 Steps	10000 Cycles	PC Pin	Panel Mount Snap-In	-30 ░C	65 °C	19.4 mm	13 mm	125 V	Black	SPDT	No Marking	15 A	On-Off-On	Concave (Curved)
