39122 Series

Catalog

HOOK-UP STRND 22AWG ORANGE

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Length	Length	Ratings	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Material	Wire Gauge	Length [x]	Length [x]
Belden Inc. 39122 0031000	0.3 mm	0.012 in	Copper Tinned	304.8 m	1000 ft	UL Style 11028	Orange	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG

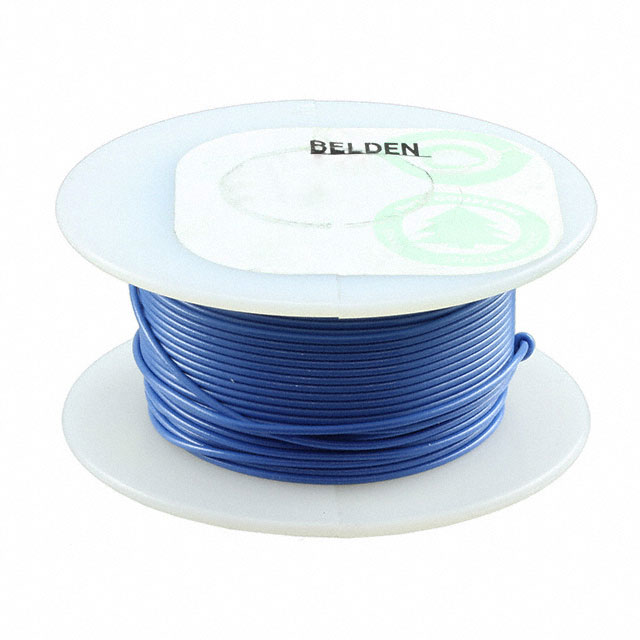

Belden Inc. 39122 013100	0.3 mm	0.012 in	Copper Tinned			UL Style 11028	Blue	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG	100 ft	30.5 m
Belden Inc. 39122 0135000	0.3 mm	0.012 in	Copper Tinned			UL Style 11028	Blue	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG
Belden Inc. 39122 0131000	0.3 mm	0.012 in	Copper Tinned	304.8 m	1000 ft	UL Style 11028	Blue	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG
Belden Inc. 39122 003100	0.3 mm	0.012 in	Copper Tinned			UL Style 11028	Orange	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG	100 ft	30.5 m

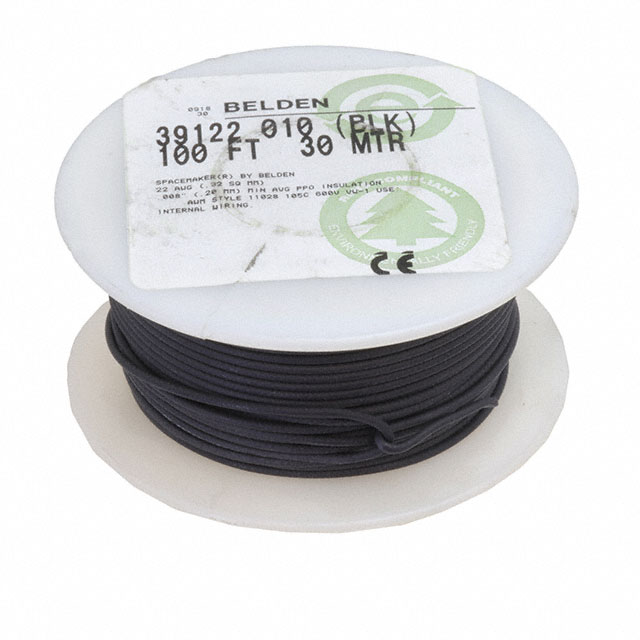

Belden Inc. 39122 010100	0.3 mm	0.012 in	Copper Tinned			UL Style 11028	Black	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG	100 ft	30.5 m
Belden Inc. 39122 0105000	0.3 mm	0.012 in	Copper Tinned			UL Style 11028	Black	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG
Belden Inc. 39122 008100	0.3 mm	0.012 in	Copper Tinned			UL Style 11028	Gray	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG	100 ft	30.5 m
Belden Inc. 39122 0041000	0.3 mm	0.012 in	Copper Tinned	304.8 m	1000 ft	UL Style 11028	Yellow	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG
Belden Inc. 39122 004100	0.3 mm	0.012 in	Copper Tinned			UL Style 11028	Yellow	1.35 mm	0.053 in	-40 C	105 ░C	Hook-Up	30 AWG	7	600 V	Polyphenylene Oxide (PPO)	22 AWG	100 ft	30.5 m
