H Series Series

4 & 6 Tumbler Power Switchlock

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

4 & 6 Tumbler Power Switchlock

Part	Voltage Rating - AC	Features	Angle of Throw	Contact Timing	Depth Behind Flange	Key Removable Positions	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Electrical Life	Contact Material	Contact Finish	Actuator Type	Voltage Rating - DC	Termination Style	Switch Function	Circuit	Actuator Type [diameter]	Index Stops	Number of Poles per Deck	Number of Decks [custom]	Circuit per Deck	Actuator Length [x]	Depth Behind Panel [z]	Number of Positions
Littelfuse/Commercial Vehicle Products H200AA2F205NQ	125 V	Epoxy Sealed Terminals	45 °	Not Specified	36.61 mm	All	-30 ░C	85 °C	19.3 mm	1 A 12 A	10000 Cycles	Copper	Silver	Flat Key	125 VDC	Quick Connect - 0.110" (2.8mm)	On-On-On	DP3T
Littelfuse/Commercial Vehicle Products H20407RR05Q	125 V		45 °	Non-Shorting					9.78 mm	1 A 12 A		Copper	Silver	Flatted	125 VDC	Quick Connect - 0.110" (2.8mm)			6.35 mm	Fixed	2	1	DP4T	7.29 mm	15.25 mm	4

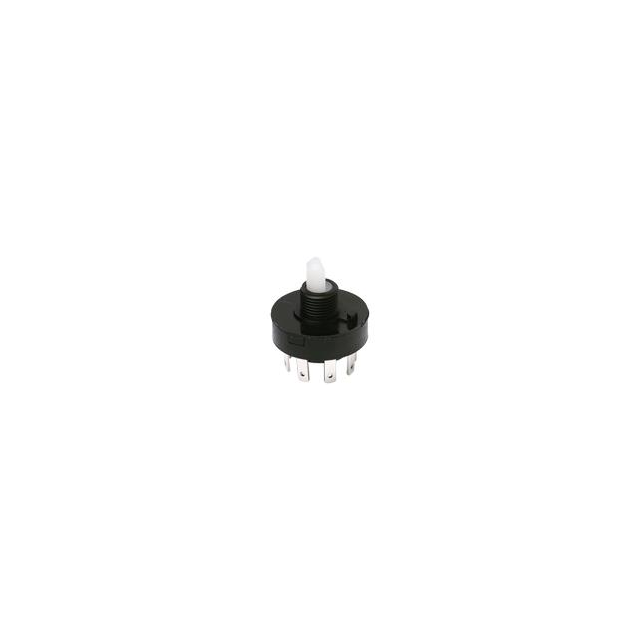

Littelfuse/Commercial Vehicle Products H20207RR05Q	125 V		45 °	Non-Shorting					9.78 mm	1 A 12 A		Copper	Silver	Flatted	125 VDC	Quick Connect - 0.110" (2.8mm)			6.35 mm	Fixed	2	1	DPDT	7.29 mm	15.25 mm	2
Littelfuse/Commercial Vehicle Products H20207RR01Q	125 V		45 °	Non-Shorting					9.78 mm	1 A 12 A		Copper	Silver	Flatted	125 VDC	Solder Lug			6.35 mm	Fixed	2	1	DPDT	7.29 mm	14.61 mm	2
Littelfuse/Commercial Vehicle Products H201132F205NQ	125 V	Epoxy Sealed Terminals	90 °	Not Specified	36.61 mm	1 only	-30 ░C	85 °C	19.3 mm	1 A 12 A	10000 Cycles	Copper	Silver	Flat Key	125 VDC	Quick Connect - 0.110" (2.8mm)	On-On	DPDT								2

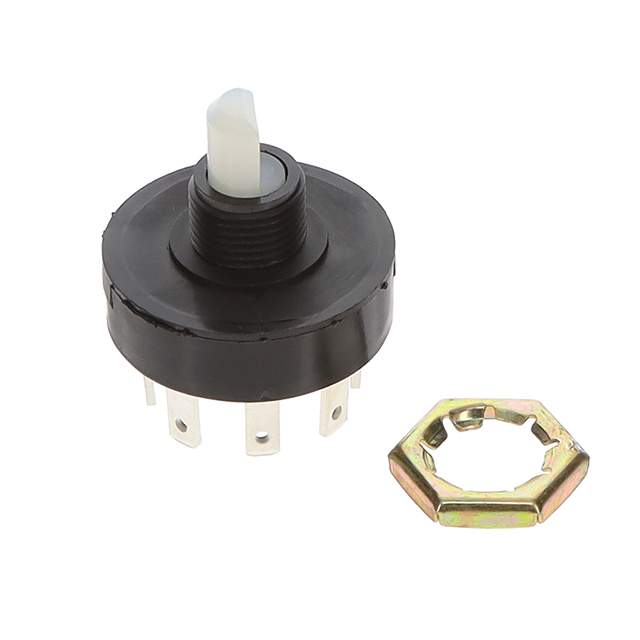

Littelfuse/Commercial Vehicle Products H20307RR05Q	125 V		45 °	Non-Shorting					9.78 mm	1 A 12 A		Copper	Silver	Flatted	125 VDC	Quick Connect - 0.110" (2.8mm)			6.35 mm	Fixed	2	1	DP3T Adjacent Contact	7.29 mm	15.25 mm
Littelfuse/Commercial Vehicle Products H101132F2WCNQ	125 V	Epoxy Sealed Terminals	90 °	Not Specified	28.35 mm	1 only	-30 ░C	85 °C	19.3 mm	1 A 12 A	10000 Cycles	Copper	Silver	Flat Key	125 VDC	Wire Leads	On-On	SPDT								2
Littelfuse/Commercial Vehicle Products H10107RR05Q	125 V		45 °	Non-Shorting					9.78 mm	1 A 12 A		Copper	Silver	Flatted	125 VDC	Quick Connect - 0.110" (2.8mm)			6.35 mm	Fixed	1	1	SPST	7.29 mm	15.25 mm	2
Littelfuse/Commercial Vehicle Products H10113TF805NQ2	125 V	Epoxy Sealed Terminals	90 °	Not Specified	36.61 mm	1 only	-30 ░C	85 °C	19.3 mm	1 A 12 A	10000 Cycles	Copper	Silver	Flat Key	125 VDC	Quick Connect - 0.110" (2.8mm)	On-On	SPDT								2
Littelfuse/Commercial Vehicle Products H101132F205NQ	125 V	Epoxy Sealed Terminals	90 °	Not Specified	36.61 mm	1 only	-30 ░C	85 °C	19.3 mm	1 A 12 A	10000 Cycles	Copper	Silver	Flat Key	125 VDC	Quick Connect - 0.110" (2.8mm)	On-On	SPDT								2

Catalog

4 & 6 Tumbler Power Switchlock

Key Features

• Positive detent

• Snap-together assembly

• Power switching

Description

The H series 4 & 6 tumbler power switchlock from C&K is designed for use in machine controls and elevators. With positive detent, snap-together assembly and power switching, designers turn to C&K’s H series when they need a switchlock that’s both reliable and long-lasting.
