87346 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

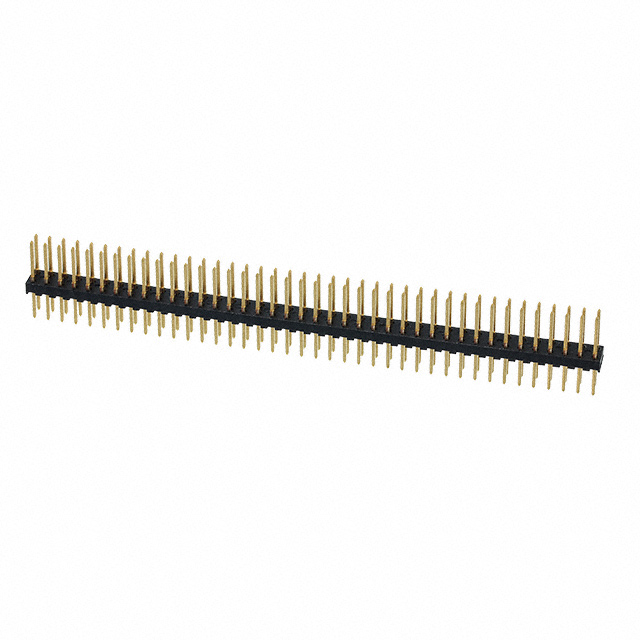

CONN HEADER VERT 80POS 2.54MM

Part	Termination	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Insulation Height [z]	Insulation Height [z]	Style	Number of Positions Loaded	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish - Mating	Number of Rows [custom]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Mounting Type	Insulation Material	Insulation Color	Contact Length - Mating	Contact Length - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Type
TE Connectivity AMP Connectors 4-87346-0	Solder	Unshrouded	0.1 in	2.54 mm	Header	0.09 in	2.29 mm	Board to Board Cable	All	Square	5.58 mm	0.22 in	Phosphor Bronze	Gold	2	80	0.38 µm	15 µin	15.95 mm	0.628 in	Through Hole	Glass Filled Nylon Polyamide (PA)	Black	8.08 mm	0.318 in	Push-Pull	0.1 "	2.54 mm	Male Pin
TE Connectivity AMP Connectors 87346-4	Solder	Unshrouded	0.1 in	2.54 mm	Header	0.09 in	2.29 mm	Board to Board Cable	All	Square	5.58 mm	0.22 in	Phosphor Bronze	Gold	2	50	0.38 µm	15 µin	15.95 mm	0.628 in	Through Hole	Glass Filled Nylon Polyamide (PA)	Black	8.08 mm	0.318 in	Push-Pull	0.1 "	2.54 mm	Male Pin
TE Connectivity AMP Connectors 87346-6	Solder	Unshrouded	0.1 in	2.54 mm	Header	0.09 in	2.29 mm	Board to Board Cable	All	Square	5.58 mm	0.22 in	Phosphor Bronze	Gold	2	40	0.38 µm	15 µin	15.95 mm	0.628 in	Through Hole	Glass Filled Nylon Polyamide (PA)	Black	8.08 mm	0.318 in	Push-Pull	0.1 "	2.54 mm	Male Pin
TE Connectivity AMP Connectors 87346-5	Solder	Unshrouded	0.1 in	2.54 mm	Header	0.09 in	2.29 mm	Board to Board Cable	All	Square	5.58 mm	0.22 in	Phosphor Bronze	Gold	2	10	0.38 µm	15 µin	15.95 mm	0.628 in	Through Hole	Glass Filled Nylon Polyamide (PA)	Black	8.08 mm	0.318 in	Push-Pull	0.1 "	2.54 mm	Male Pin
