MC19LOR Series

Catalog

SWITCH CAPACITIVE DPST OFF-ON

Part	Mechanical Life	Electrical Life	Color - Actuator/Cap	Termination Style	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - DC	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Switch Function	Circuit	Mounting Type	Ingress Protection	Illumination Voltage (Nominal)	Actuator Marking

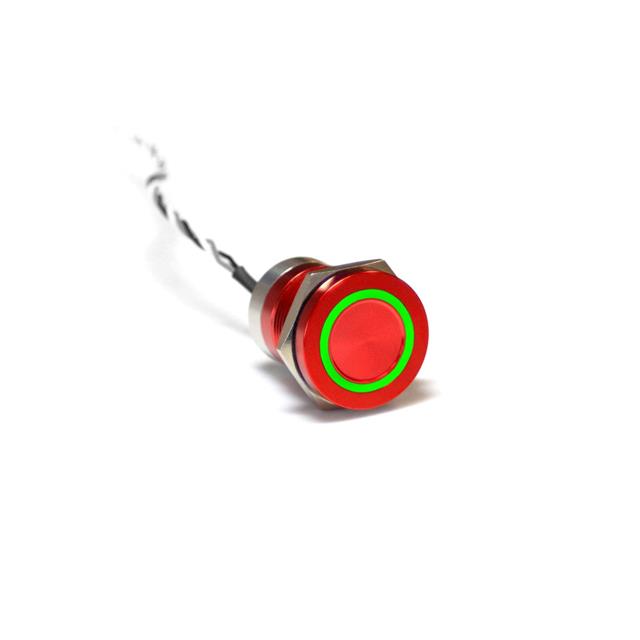

BULGIN LIMITED MC19LORGN	50000000 Cycles	50 000 000	Red	Wire Leads	Capacitive Illuminated	55 °C	-25 °C	500 mA	24 V	Button Flush Round	19.2 mm	Green LED	Off-On	SPST-NO	Panel Mount Front	IP68 IP69K	12 VDC
BULGIN LIMITED MC19LORRG	50000000 Cycles	50 000 000	Red	Wire Leads	Capacitive Illuminated	55 °C	-25 °C	500 mA	12 V	Button Flush Round	19.2 mm	Green/Red LED	Off-On	SPST-NO	Panel Mount Front	IP68 IP69K		No Marking

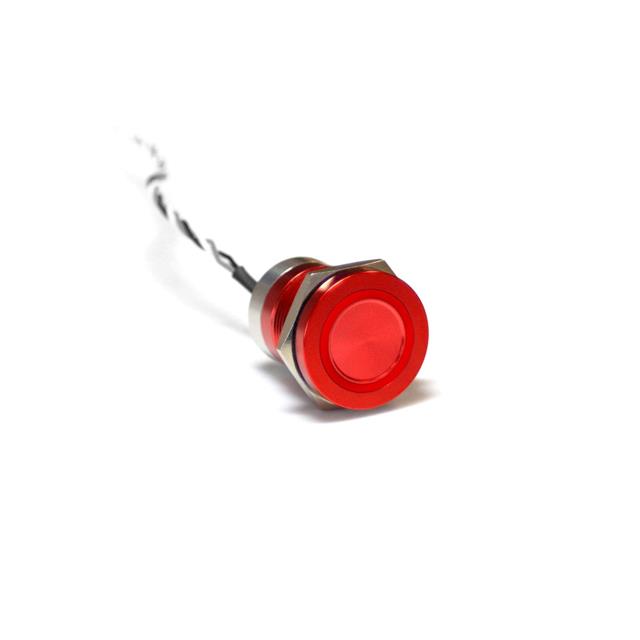

BULGIN LIMITED MC19LORRD	50000000 Cycles	50 000 000	Red	Wire Leads	Capacitive Illuminated	55 °C	-25 °C	500 mA	24 V	Button Flush Round	19.2 mm	LED Red	Off-On	SPST-NO	Panel Mount Front	IP68 IP69K	12 VDC
