FTE-103 Series

Catalog

CONN HEADER SMD R/A 6POS 0.8MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Post	Contact Finish - Mating	Contact Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Connector Type	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Height	Insulation Height	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Mounting Type	Shrouding	Termination	Number of Rows	Insulation Height [z]	Insulation Height [z]

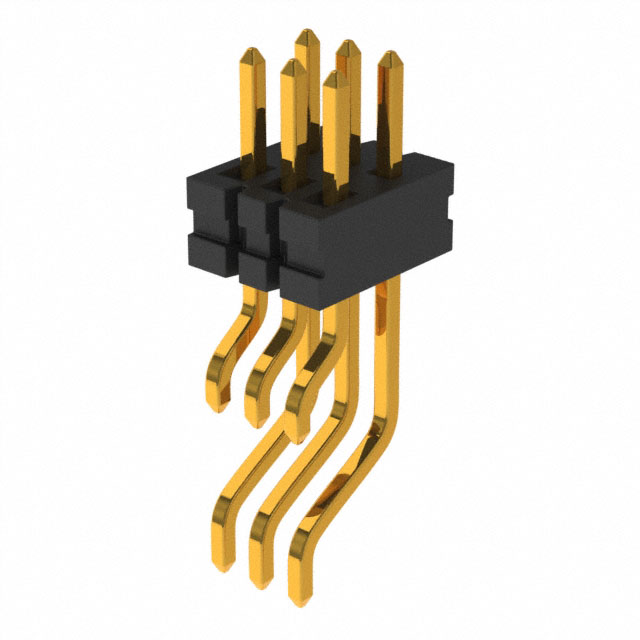

Samtec Inc. FTE-103-01-G-DH	3 µin	0.076 µm	Push-Pull	1.9 mm	0.075 in	Gold	Gold	Male Pin	Square	-55 °C	125 °C	Black	Phosphor Bronze	1.2 mm	0.047 in	6	Header	All	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	3.05 mm	0.12 in	2.7 A	0.031 in	0.8 mm	Surface Mount Right Angle	Unshrouded	Solder	2

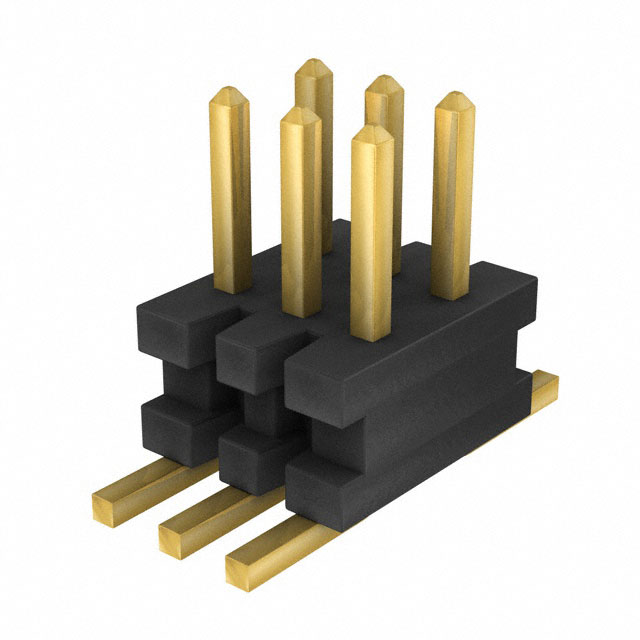

Samtec Inc. FTE-103-01-G-DV	3 µin	0.076 µm	Push-Pull	1.9 mm	0.075 in	Gold	Gold	Male Pin	Square	-55 °C	125 °C	Black	Phosphor Bronze	1.2 mm	0.047 in	6	Header	All	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0			2.7 A	0.031 in	0.8 mm	Surface Mount	Unshrouded	Solder	2	0.055 in	1.4 mm
