ADS5517 Series
Manufacturer: Texas Instruments
Beta
⌘K

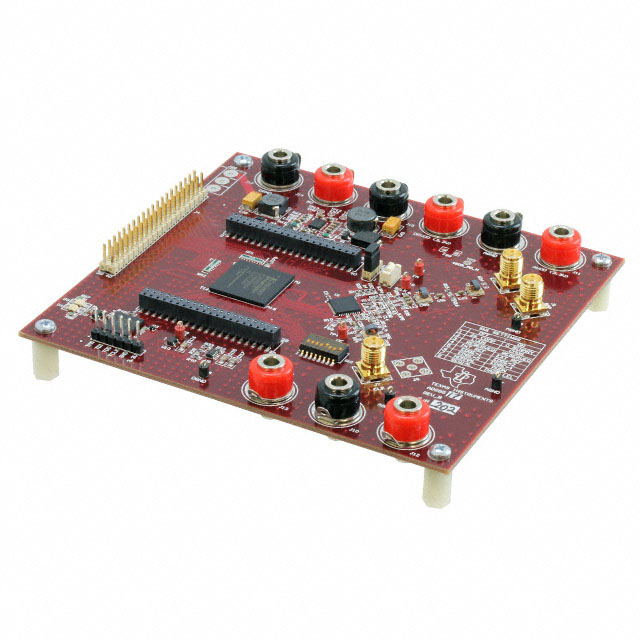

EVAL MODULE FOR ADS5517
| Part | Input Range | Supplied Contents | Data Interface | Power (Typ) @ Conditions | Number of Bits | Number of A/D Converters | Utilized IC / Part | Sampling Rate (Per Second) | Ratio - S/H:ADC | Supplier Device Package | Architecture | Package / Case | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Inputs | Mounting Type | Configuration | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Input Type | Reference Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 2 Vpp | Board(s) | Parallel Serial | 1.23 W | 11 | 1 | ADS5517 | 200 M | |||||||||||||||
 Texas Instruments | LVDS - Parallel Parallel | 11 | 1 | 200 M | 1:1 | 48-VQFN (7x7) | Pipelined | 48-VFQFN Exposed Pad | 3.6 V | 3 V | 85 °C | -40 °C | 1 | Surface Mount | S/H-ADC | 3.6 V | 3 V | Differential | External Internal | ||||
 Texas Instruments | LVDS - Parallel Parallel | 11 | 1 | 200 M | 1:1 | 48-VQFN (7x7) | Pipelined | 48-VFQFN Exposed Pad | 3.6 V | 3 V | 85 °C | -40 °C | 1 | Surface Mount | S/H-ADC | 3.6 V | 3 V | Differential | External Internal | ||||
Texas Instruments | LVDS - Parallel Parallel | 11 | 1 | 200 M | 1:1 | 48-VQFN (7x7) | Pipelined | 48-VFQFN Exposed Pad | 3.6 V | 3 V | 85 °C | -40 °C | 1 | Surface Mount | S/H-ADC | 3.6 V | 3 V | Differential | External Internal |
