M80-MH3 Series
Manufacturer: Harwin Inc.
Beta
⌘K
2 POS. MALE SIL COAX HORIZONTAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
| Part | Mounting Type | Termination | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Insulation Color | Number of Positions | Number of Rows | Shrouding | Number of Positions Loaded | Connector Type | Insulation Material | Contact Type | Contact Finish - Mating | Style | Material Flammability Rating | Contact Material | Contact Shape | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

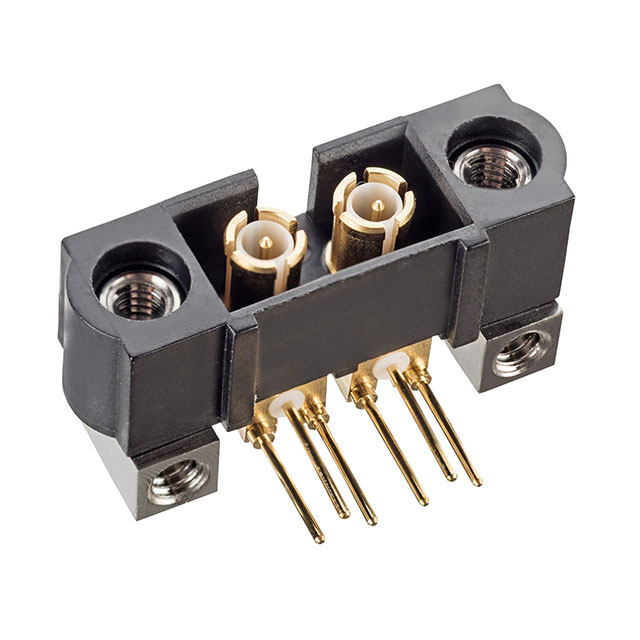

 Harwin Inc. | Right Angle Through Hole | Solder | Threaded | -55 C | 125 °C | 5.6 mm | 0.22 in | 4 mm | 0.157 in | Black | 2 | 1 | Shrouded - 4 Wall | All | Header | Polyphenylene Sulfide (PPS) Glass Filled | Coaxial Male Pin | Gold | Board to Board Cable | UL94 V-0 | Copper Alloy | Circular | Mating Flange Mounting Flange |

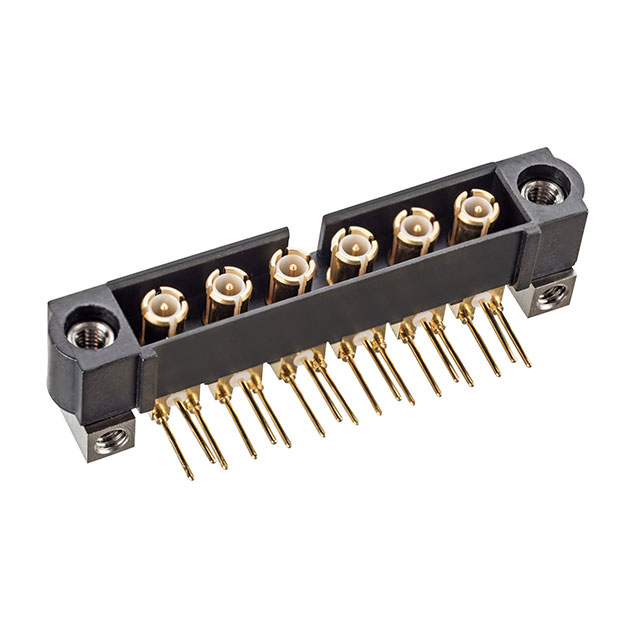

 Harwin Inc. | Right Angle Through Hole | Solder | Threaded | -55 C | 125 °C | 5.6 mm | 0.22 in | 4 mm | 0.157 in | Black | 6 | 1 | Shrouded - 4 Wall | All | Header | Polyphenylene Sulfide (PPS) Glass Filled | Coaxial Male Pin | Gold | Board to Board Cable | UL94 V-0 | Copper Alloy | Circular | Mating Flange Mounting Flange |

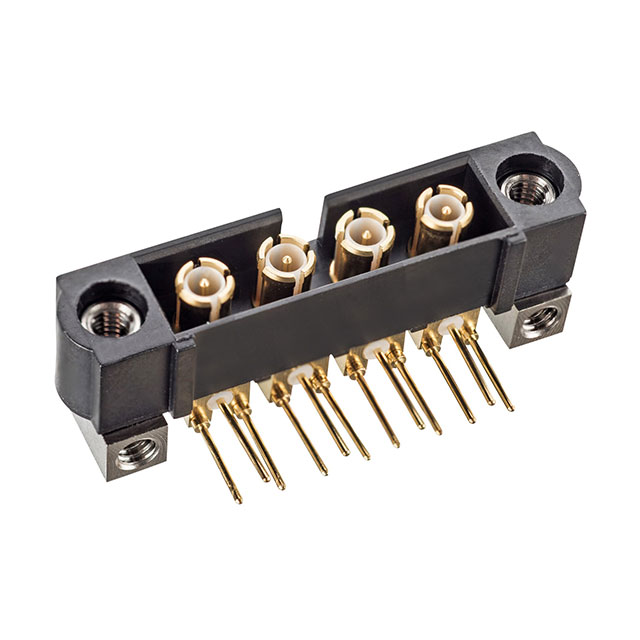

 Harwin Inc. | Right Angle Through Hole | Solder | Threaded | -55 C | 125 °C | 5.6 mm | 0.22 in | 4 mm | 0.157 in | Black | 4 | 1 | Shrouded - 4 Wall | All | Header | Polyphenylene Sulfide (PPS) Glass Filled | Coaxial Male Pin | Gold | Board to Board Cable | UL94 V-0 | Copper Alloy | Circular | Mating Flange Mounting Flange |

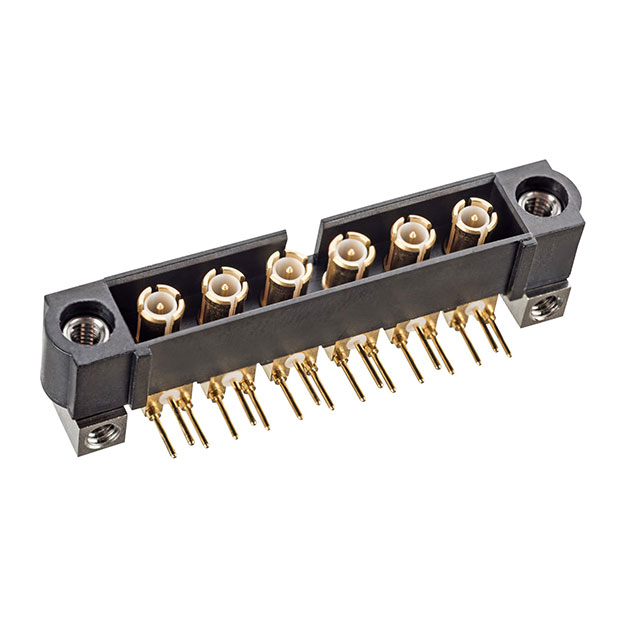

 Harwin Inc. | Right Angle Through Hole | Solder | Threaded | -55 C | 125 °C | 5.6 mm | 0.22 in | 4 mm | 0.157 in | Black | 6 | 1 | Shrouded - 4 Wall | All | Header | Polyphenylene Sulfide (PPS) Glass Filled | Coaxial Male Pin | Gold | Board to Board Cable | UL94 V-0 | Copper Alloy | Circular | Mating Flange Mounting Flange |

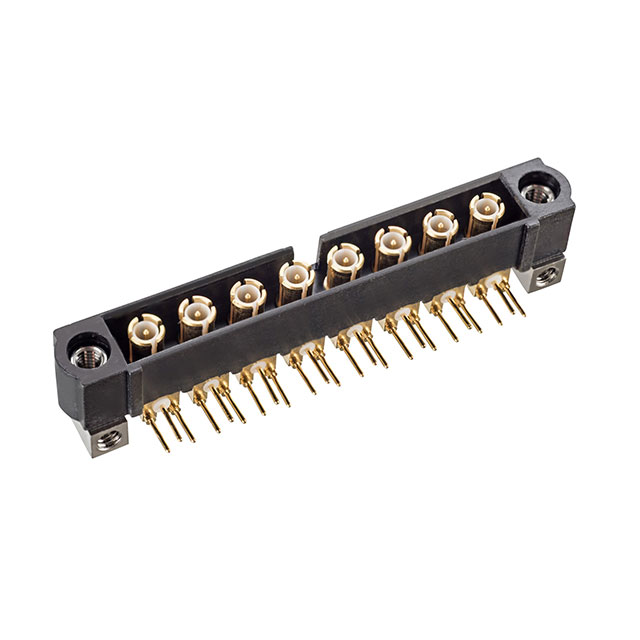

 Harwin Inc. | Right Angle Through Hole | Solder | Threaded | -55 C | 125 °C | 5.6 mm | 0.22 in | 4 mm | 0.157 in | Black | 8 | 1 | Shrouded - 4 Wall | All | Header | Polyphenylene Sulfide (PPS) Glass Filled | Coaxial Male Pin | Gold | Board to Board Cable | UL94 V-0 | Copper Alloy | Circular | Mating Flange Mounting Flange |
