07FMN-SM Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

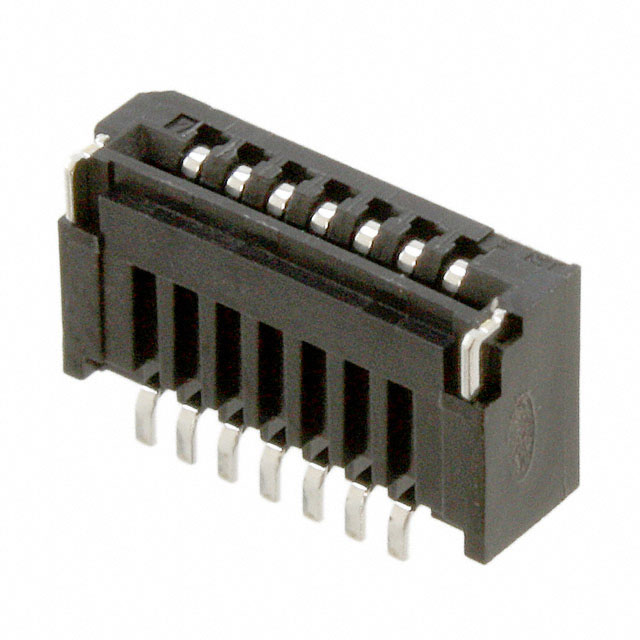

CONN FFC TOP 7POS 1MM R/A
| Part | Current Rating (Amps) | Housing Color | FFC, FCB Thickness | Features | Flat Flex Type | Mounting Type | Number of Positions | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board [z] | Height Above Board [z] | Connector/Contact Type | Cable End Type | Voltage Rating | Material Flammability Rating | Pitch | Pitch | Contact Material | Housing Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.5 A | Black | 0.3 mm | Low Insertion Force (LIF) | FFC | Right Angle Surface Mount | 7 | Tin | 85 °C | -25 °C | 0.118 in | 3 mm | Contacts Top | Straight | 50 V | UL94 V-0 | 1 mm | 0.039 in | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Solder |
