V7-2 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH V7 BASIC

Part	Overtravel [custom]	Overtravel [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Release Force	Voltage Rating - DC	Differential Travel [x]	Differential Travel [x]	Actuator Type	Current Rating (Amps)	Circuit	Mechanical Life	Pretravel	Pretravel	Switch Function	Electrical Life	Voltage Rating - AC	Termination Style	Operating Force	Operating Position	Operating Position	Differential Travel	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions V7-2A27D84
Honeywell Sensing and Productivity Solutions V7-2B17P02	1.27 mm	0.05 "	Right Angle Through Hole	85 °C	-40 C	10 gf	125 VDC	0.01 in	0.25 mm	Round (Pin Plunger)	11 A 500 mA	SPDT	10000000 Cycles	1.2 mm	0.047 in	On-Mom	100000 Cycles	125 V	PC Pin	75 gf	14.7 mm	0.579 in
Honeywell Sensing and Productivity Solutions V7-2E17E9-420	1 mm	0.039 "	Chassis Mount	85 °C	-40 C	6 gf	125 VDC			Lever Formed	0.5 mA 10 A	SPDT	10000000 Cycles	1.65 mm	0.065 in	On-Mom	100000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	76 gf	15.3 mm	0.602 in	0.015 in	0.38 mm
Honeywell Sensing and Productivity Solutions V7-2A27D84-000-1
Honeywell Sensing and Productivity Solutions V7-2B29E9-000-1
Honeywell Sensing and Productivity Solutions V7-2B29D8-000-1
Honeywell Sensing and Productivity Solutions V7-2A18D8-207

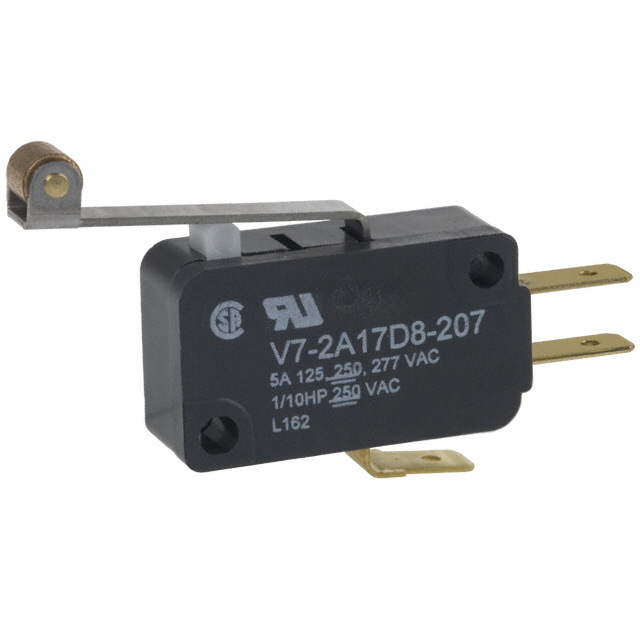

Honeywell Sensing and Productivity Solutions V7-2A17D8-207	1.5 mm	0.06 "	Chassis Mount	85 °C	-40 C	3 gf				Lever Roller	5 A	SPDT	10000000 Cycles	2.9 mm	0.114 in	On-Mom	100000 Cycles	125 V	Quick Connect	43 gf	20.6 mm	0.812 in	0.6 mm		0.025 in
Honeywell Sensing and Productivity Solutions V7-2B29E9	1.27 mm	0.05 "	Chassis Mount	85 °C	-40 C	10 gf	125 VDC	0.01 in	0.25 mm	Round (Pin Plunger)	11 A 500 mA	SPST-NO	10000000 Cycles	1.2 mm	0.047 in	Off-Mom	100000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	75 gf	14.7 mm	0.579 in
Honeywell Sensing and Productivity Solutions V7-2B29E9-000-1
