MSF 250 Series

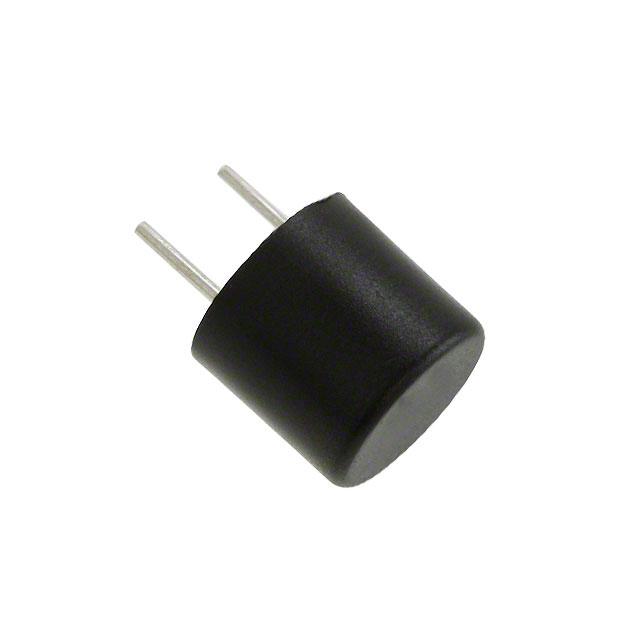

"MSF 250, 4 A, 250 VAC, QUICK-ACTING F, FUSE, SUBMINIATURE FUSE\/

Manufacturer: SCHURTER Inc.

Catalog

"MSF 250, 4 A, 250 VAC, QUICK-ACTING F, FUSE, SUBMINIATURE FUSE\/

Catalog

"MSF 250, 4 A, 250 VAC, QUICK-ACTING F, FUSE, SUBMINIATURE FUSE\/

Part	Melting I²t	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Fuse Type	Voltage Rating - AC	Mounting Type	Package / Case	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Approval Agency	Melting I˛t
SCHURTER Inc. 0034.6020	7.9	85 °C	-40 C	Fast Blow	40 A	4 A	Board Mount (Cartridge Style Excluded)	250 V	Through Hole	Can Radial Vertical	8.5 mm	8.5 mm	0.335 in	0.335 in
SCHURTER Inc. 0034.6015	0.68	85 °C	-40 C	Fast Blow	35 A	1.25 A	Board Mount (Cartridge Style Excluded)	250 V	Through Hole	Can Radial Vertical	8.5 mm	8.5 mm	0.335 in	0.335 in	CCC cURus VDE
SCHURTER Inc. 0034.6043	0.22	85 °C	-40 C	Fast Blow	35 A	800 mA	Board Mount (Cartridge Style Excluded)	250 V	Through Hole	Can Radial Vertical	8.5 mm	8.5 mm	0.335 in	0.335 in	CCC cURus VDE
SCHURTER Inc. 0034.6017	1.3	85 °C	-40 C	Fast Blow	35 A	2 A	Board Mount (Cartridge Style Excluded)	250 V	Through Hole	Can Radial Vertical	8.5 mm	8.5 mm	0.335 in	0.335 in	CCC cURus VDE	1.3
SCHURTER Inc. 0034.6013	0.22	85 °C	-40 C	Fast Blow	35 A	800 mA	Board Mount (Cartridge Style Excluded)	250 V	Through Hole	Can Radial Vertical	8.5 mm	8.5 mm	0.335 in	0.335 in	CCC cURus VDE
