HSD-04M Series
Manufacturer: Adam Tech
Beta
⌘K

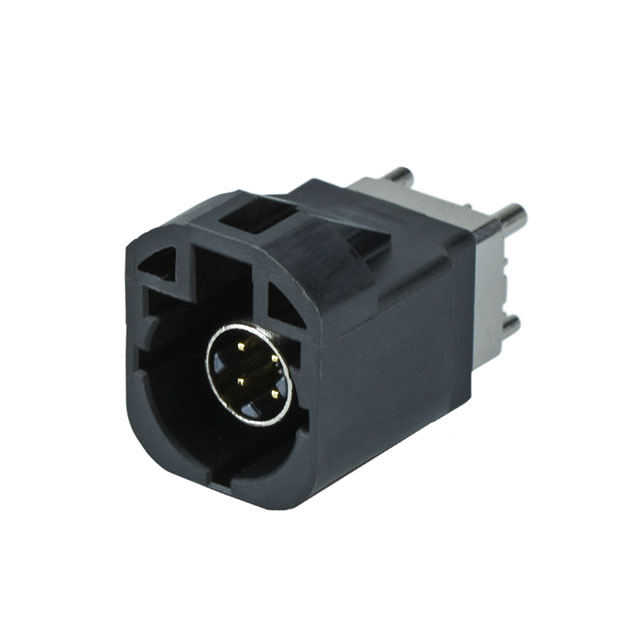

CONN FAKRA HIGH SPEED DATA 4POS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Center Contact Plating | Mating Cycles | Body Material | Connector Type | Contact Termination | Connector Style | Mounting Type | Frequency - Max [Max] | Features | Center Contact Material | Housing Color | Impedance | Shield Termination | Number of Ports | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | -40 C | 105 ░C | Polyamide (PA) Nylon | Tin | Gold | 25 | Zinc Alloy | Plug Male Pin | Solder | Fakra HSD® Quadraxial | Right Angle Through Hole | 2 GHz | Code M | Brass | Orange Pastel | 100 Ohms | Solder | 1 | Latch Lock |
