AD1120 Series
Manufacturer: ATOP Technologies
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 120W
| Part | Applications | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Features | Voltage - Output 1 | Input Type | Current - Output (Max) | Efficiency | Number of Outputs | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

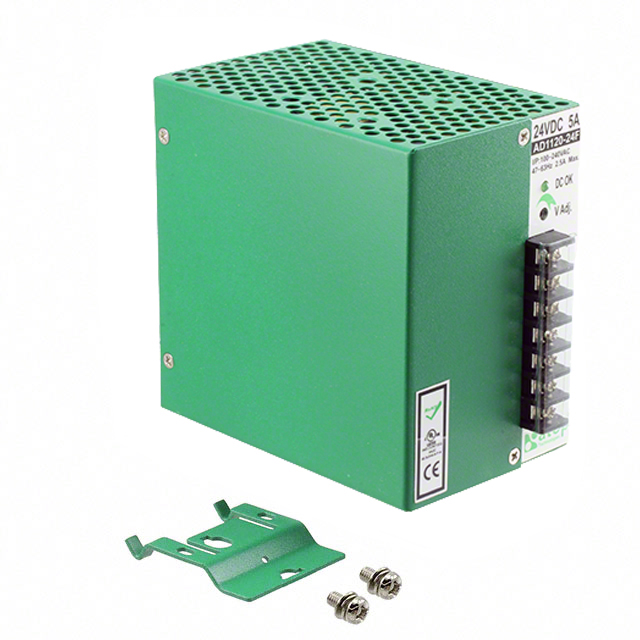

 ATOP Technologies | ITE (Commercial) | 120 W | -20 ░C | 50 °C | CB CE cULus | Adjustable Output | 24 V | AC | 5 A | 81 % | 1 | 100 VAC | 240 VAC | 2.2 " | 56 mm | 4.76 " | 121 mm | 110 mm | 4.33 " | |

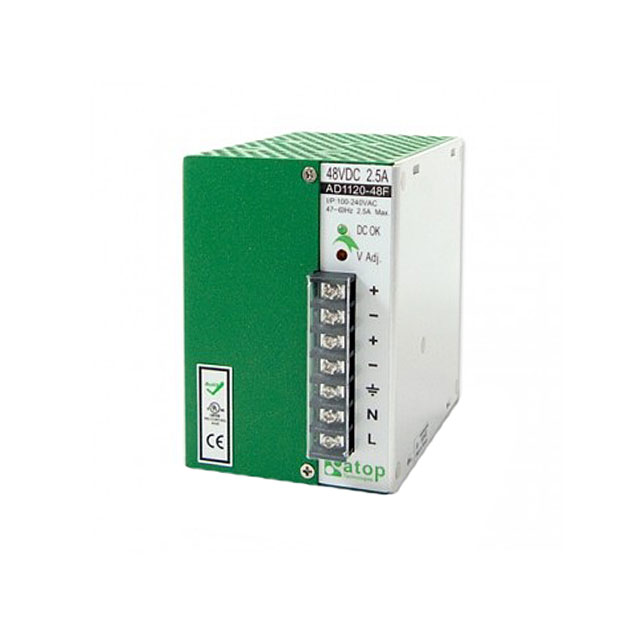

 ATOP Technologies | ITE (Commercial) | 120 W | -20 ░C | 50 °C | CB CE cULus | Adjustable Output | 48 V | AC | 1 | 100 VAC | 240 VAC | 2.95 " | 75 mm | 4.76 " | 121 mm | 110 mm | 4.33 " | 2.5 A |
