50.632 Series

Catalog

CABLE GLAND 14-20MM M32 S STEEL

Part	Includes	Ingress Protection	Thread Size	Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Outside Cable Diameter (Max)
Jacob GmbH 50.632 ES	O-Ring Seal	IP68 - Dust Tight Waterproof	M32x1.5	Stainless Steel	Silver	-40 C	100 °C	0.787 in	20 mm	0.315 "	8 mm	0.551 in	14 mm	Cable Gland

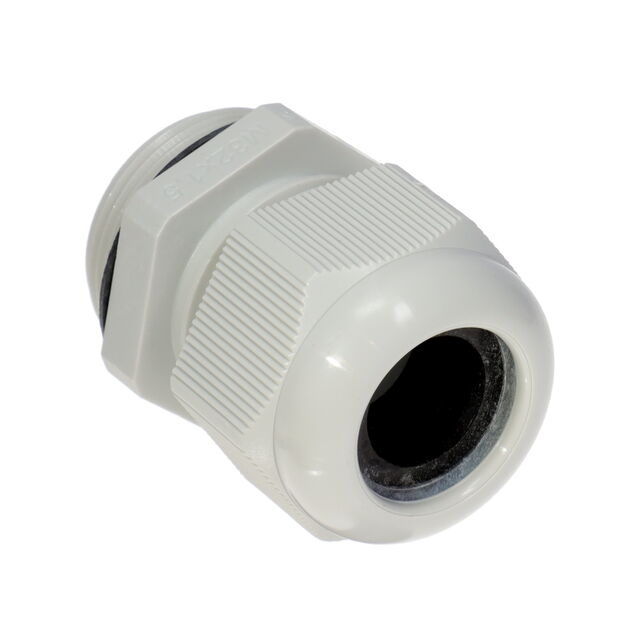

Jacob GmbH 50.632PA/R7035	Sealing Ring	IP68 - Dust Tight Waterproof	M32x1.5		Gray	-40 C	100 °C	0.827 in		0.394 in	10 mm	0.472 in	12 mm	Cable Gland	21 mm

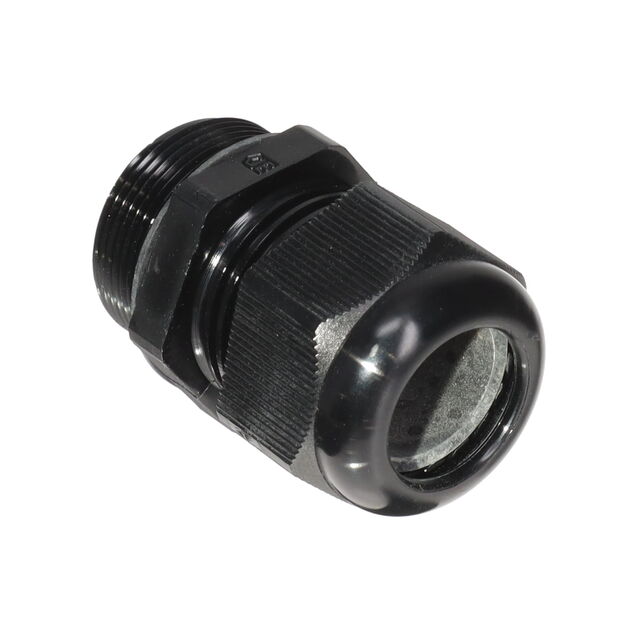

Jacob GmbH 50.632 PA/SWL	Sealing Ring	IP68 - Dust Tight Waterproof	M32x1.5		Black	-40 C	100 °C	0.827 in		0.591 in	15 mm	0.591 in	15 mm	Cable Gland	21 mm

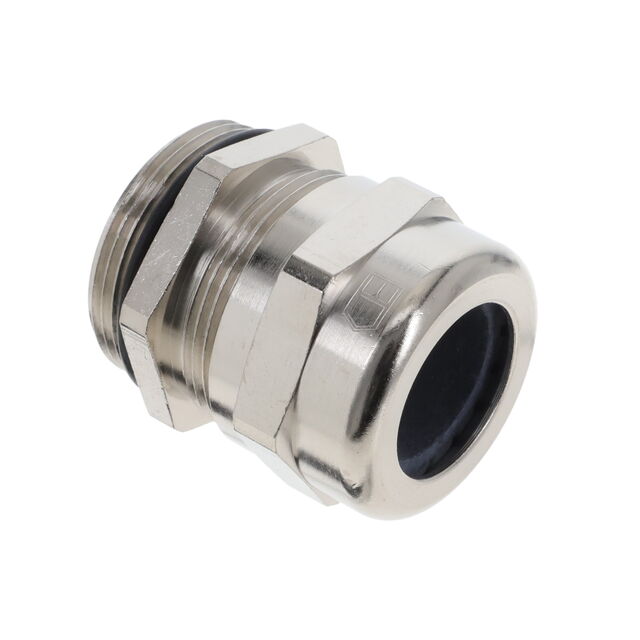

Jacob GmbH 50.632 M	O-Ring Seal	IP68 - Dust Tight Waterproof	M32x1.5	Brass Nickel Plated	Silver	-40 C	100 °C	0.787 in	20 mm	0.315 "	8 mm	0.551 in	14 mm	Cable Gland

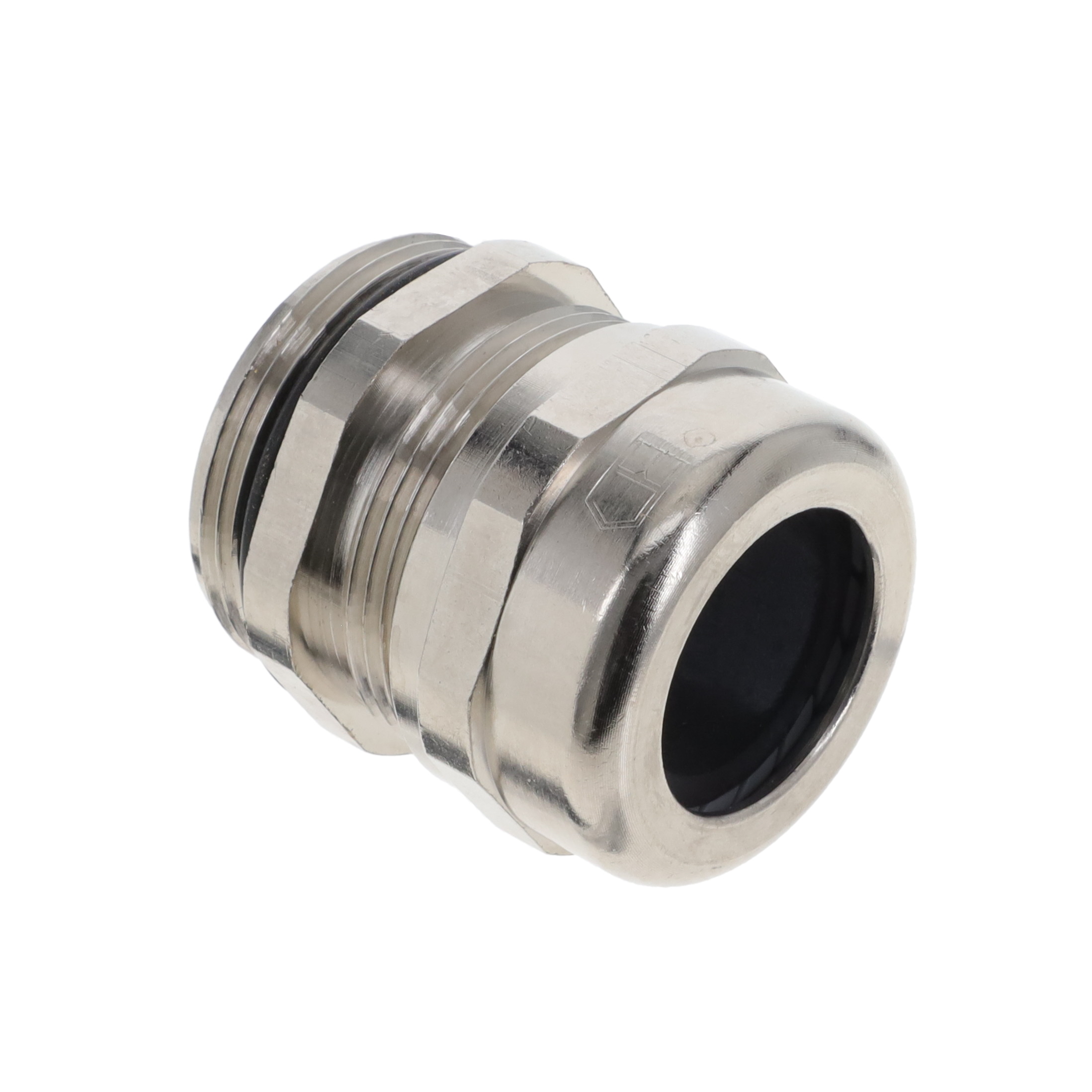

Jacob GmbH 50.632 M/EMVD	O-Ring Seal	IP68 - Dust Tight Waterproof	M32x1.5	Brass Nickel Plated	Silver	-40 C	100 °C	0.787 in	20 mm	0.315 "	8 mm	0.551 in	14 mm	Cable Gland
Jacob GmbH 50.632 PA7035L	Sealing Ring	IP68 - Dust Tight Waterproof	M32x1.5		Gray	-40 C	100 °C	0.827 in		0.591 in	15 mm	0.591 in	15 mm	Cable Gland	21 mm

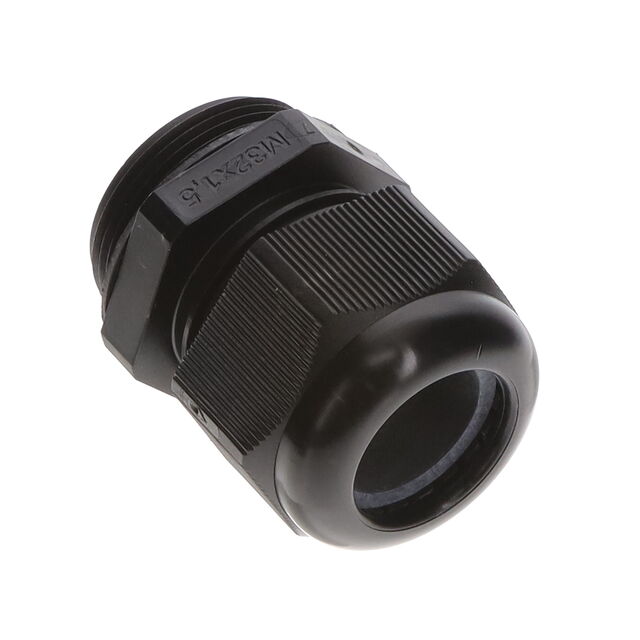

Jacob GmbH 50.632 PA/SW	Sealing Ring	IP68 - Dust Tight Waterproof	M32x1.5		Black	-40 C	100 °C	0.827 in		0.394 in	10 mm	0.591 in	15 mm	Cable Gland	21 mm

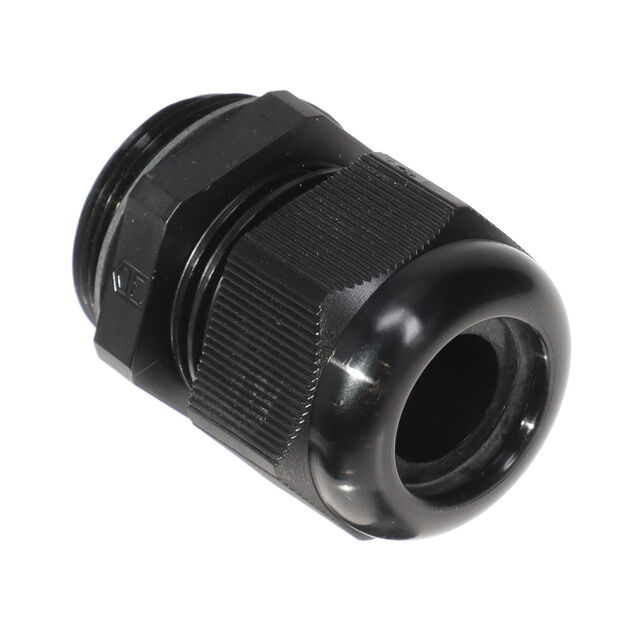

Jacob GmbH 50.632 PA/RSW	Sealing Ring	IP68 - Dust Tight Waterproof	M32x1.5		Black	-40 C	100 °C	0.827 in		0.394 in	10 mm	0.472 in	12 mm	Cable Gland	21 mm

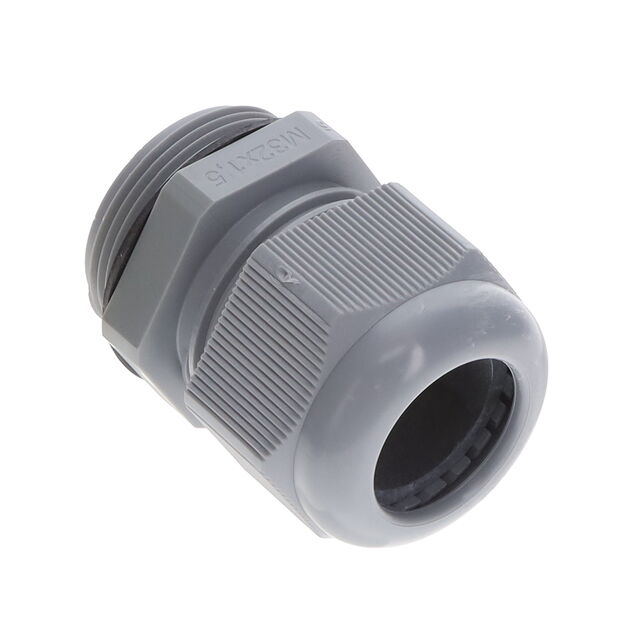

Jacob GmbH 50.632 PA7001	Sealing Ring	IP68 - Dust Tight Waterproof	M32x1.5		Gray	-40 C	100 °C	0.827 in		0.394 in	10 mm	0.591 in	15 mm	Cable Gland	21 mm
Jacob GmbH 50.632 PA7035	Sealing Ring	IP68 - Dust Tight Waterproof	M32x1.5		Gray	-40 C	100 °C	0.827 in		0.394 in	10 mm	0.591 in	15 mm	Cable Gland	21 mm
