M80-754 Series

Catalog

2+2 POS. MALE DIL VERTICAL THROUGHBOARD CONN. NO LATCHES ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights	Style	Fastening Type	Number of Positions	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Shrouding	Mounting Type	Voltage Rating	Number of Positions Loaded	Insulation Material	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Post	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Connector Type	Contact Material

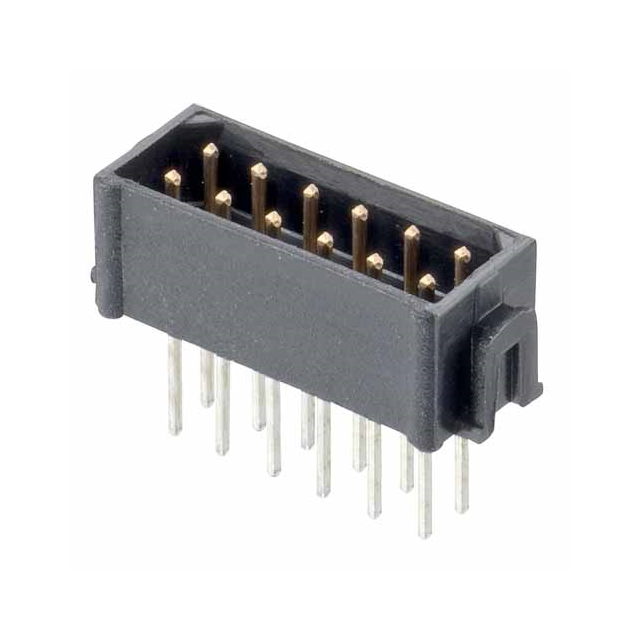

Harwin Inc. M80-7540442	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Board to Board Cable	Latch Holder	4	Circular	2 mm	0.079 in	Black	Gold	4.5 mm	0.177 in	2	Shrouded - 4 Wall	Through Hole	120 VDC	All	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	2.2 A	29.5 µin	0.75 µm	Tin	Male Pin	0.079 "	2 mm	0.219 in	5.56 mm	-55 C	125 °C	Solder	Header	Phosphor Bronze
Harwin Inc. M80-7541242	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Board to Board Cable	Latch Holder	12	Circular	2 mm	0.079 in	Black	Gold	4.5 mm	0.177 in	2	Shrouded - 4 Wall	Through Hole	120 VDC	All	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	2.2 A	29.5 µin	0.75 µm	Tin	Male Pin	0.079 "	2 mm	0.219 in	5.56 mm	-55 C	125 °C	Solder	Header	Phosphor Bronze
Harwin Inc. M80-7542042	118.1 µin	3 µm	7.23 mm 7.85 mm 10.2 mm 13.51 mm	Board to Board Cable	Latch Holder	20	Circular	2 mm	0.079 in	Black	Gold	4.5 mm	0.177 in	2	Shrouded - 4 Wall	Through Hole	120 VDC	All	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	2.2 A	29.5 µin	0.75 µm	Tin	Male Pin	0.079 "	2 mm	0.219 in	5.56 mm	-55 C	125 °C	Solder	Header	Phosphor Bronze
