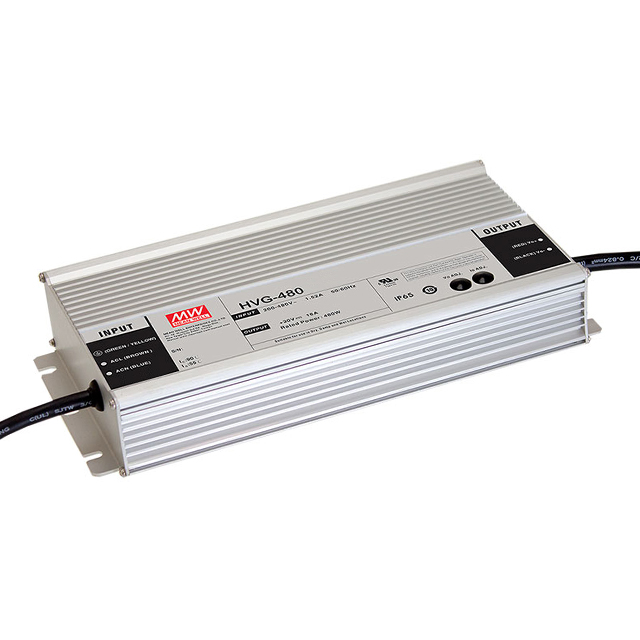

HVG-480 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRVR CC/CV AC/DC 45.9-56.7V
| Part | Mounting Type | Voltage - Isolation | Current - Output (Max) [Max] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Features | Type | Voltage - Input (Min) [Min] | Ratings | Topology | Number of Outputs | Power (Watts) | Termination Style | Voltage - Output [Min] | Voltage - Output [Max] | Voltage - Output | Approval Agency | Dimming |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 3750 VDC | 8.9 A | 95 % | 85 °C | -40 C | 528 VAC | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | OCP OTP OVP SCP | Constant Current Voltage | 180 VAC | IP65 | AC DC Converter | 1 | 481 W | Wire Leads | 45.9 V | 56.7 V | |||
 MEAN WELL USA Inc. | Chassis Mount | 3750 VDC | 20 A | 94 % | 85 °C | -40 C | 528 VAC | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | OCP OTP OVP SCP | Constant Current Voltage | 180 VAC | IP67 | AC DC Converter | 1 | 480 W | Wire Leads | 24 V | cURus EAC FCC | |||
 MEAN WELL USA Inc. | Chassis Mount | 3750 VDC | 10 A | 95 % | 85 °C | -40 C | 528 VAC | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | OCP OTP OVP SCP | Constant Current Voltage | 180 VAC | IP67 | AC DC Converter | 1 | 480 W | Wire Leads | 24 V | 48 V | Analog PWM | ||
MEAN WELL USA Inc. | Chassis Mount | 3750 VDC | 20 A | 94 % | 85 °C | -40 C | 528 VAC | 125 mm | 9.26 in | 43.8 mm | 235.2 mm | 4.92 in | 1.72 " | OCP OTP OVP SCP | Constant Current Voltage | 180 VAC | IP65 | AC DC Converter | 1 | 480 W | Wire Leads | 20.4 V | 25.2 V |
