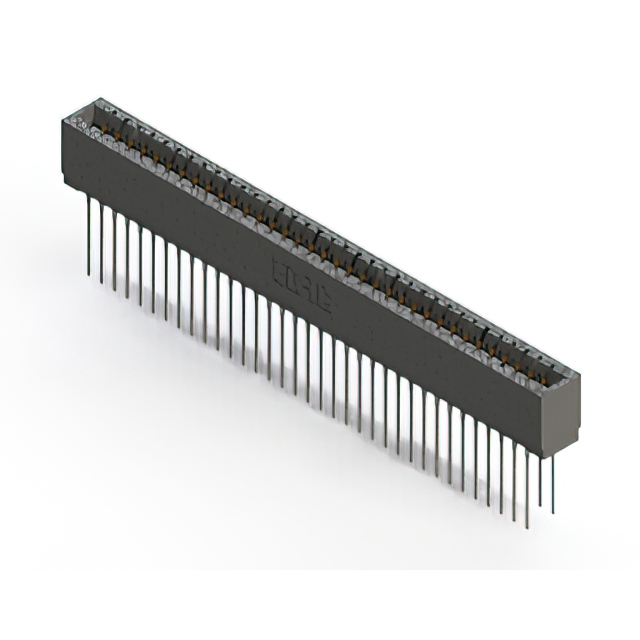

726 Series

Manufacturer: EDAC Inc.

Catalog

STANDARD CARD EDGE CONNECTORS PRESS-FIT CARD EDGE CONNECTORS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Termination	Number of Positions/Bay/Row	Color	Read Out	Contact Type	Pitch	Pitch	Contact Finish	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Material	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Material - Insulation	Termination Rows [custom]	Number of Positions [custom]
EDAC Inc. 726-068-541-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit Wire Wrap	34	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold	68 positions	Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 726-068-553-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit Wire Wrap	34	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold	68 positions	Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 726-044-520-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	22	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold	44	Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Polyester Thermoplastic	2
EDAC Inc. 726-058-525-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	29	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold	58	Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Polyester Thermoplastic	2
EDAC Inc. 726-086-525-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	43	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold	86	Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 726-084-525-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	42	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold		Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm			84
EDAC Inc. 726-070-520-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	35	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold	70	Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 726-020-525-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	10	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold	20	Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Polyester Thermoplastic	2
EDAC Inc. 726-096-527-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	48	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold	96	Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Polyester Thermoplastic	2
EDAC Inc. 726-040-520-201	-40 C	105 ░C	Non Specified - Dual Edge	Press-Fit	20 Bay/Row	Black	Dual	Cantilever	3.18 mm	0.125 in	Gold	40	Through Hole	30 Áin	0.76 Ám	Female	Copper Alloy	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Polyester Thermoplastic	2
