833-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 19POS 0.156

Part	Termination Rows	Material - Insulation	Number of Positions	Contact Material	Flange Feature	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Rows	Termination	Number of Positions/Bay/Row	Card Type	Read Out	Gender	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]

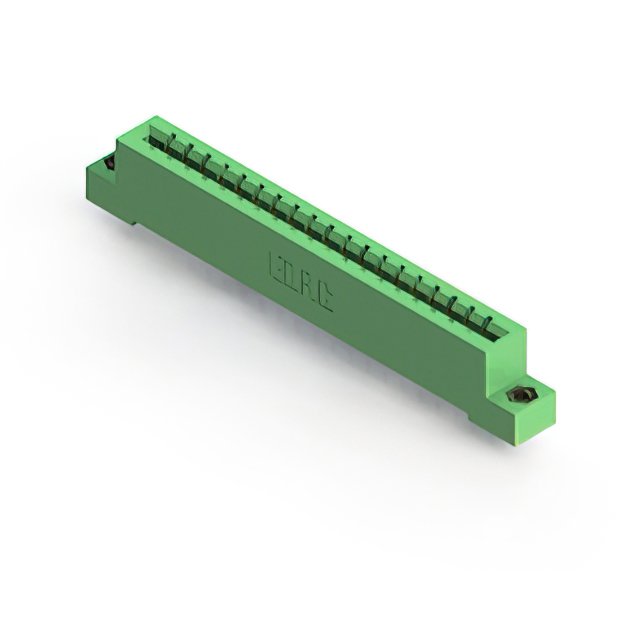

EDAC Inc. 833-019-541-108	1	Diallyl Phthalate (DAP)	19	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Gold	125 °C	-40 C	Cantilever	1	Wire Wrap	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in

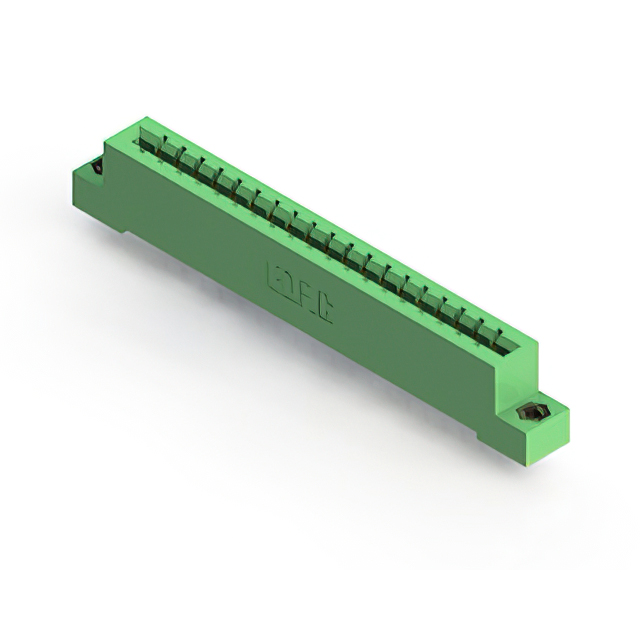

EDAC Inc. 833-019-540-108	1	Diallyl Phthalate (DAP)	19	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Gold	125 °C	-40 C	Cantilever	1	Wire Wrap	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in
EDAC Inc. 833-019-542-612	1	Diallyl Phthalate (DAP)	19	Copper Alloy	Side Mount Opening Unthreaded	Gold	125 °C	-40 C	Cantilever	1	Wire Wrap	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in	0.128 "	3.25 mm
EDAC Inc. 833-019-541-604	1	Diallyl Phthalate (DAP)	19	Copper Alloy		Gold	125 °C	-40 C	Cantilever	1	Wire Wrap	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in	0.156 "	3.96 mm

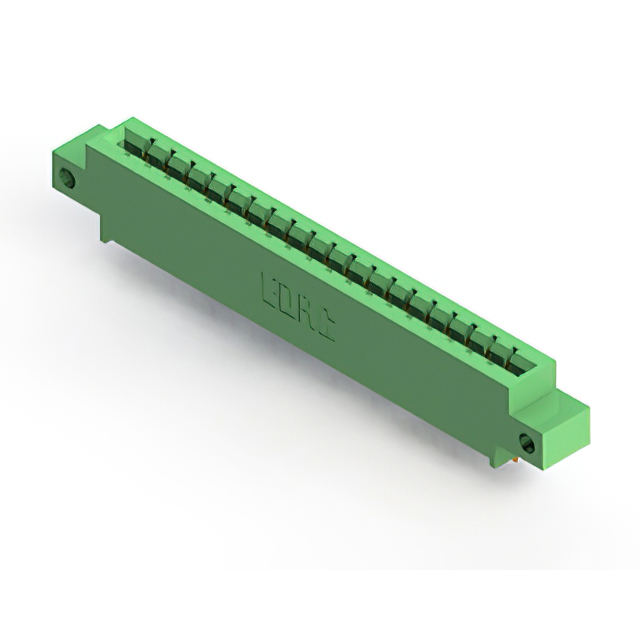

EDAC Inc. 833-019-520-612	1	Diallyl Phthalate (DAP)	19	Copper Alloy	Side Mount Opening Unthreaded	Gold	125 °C	-40 C	Cantilever	1	Solder	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in	0.128 "	3.25 mm

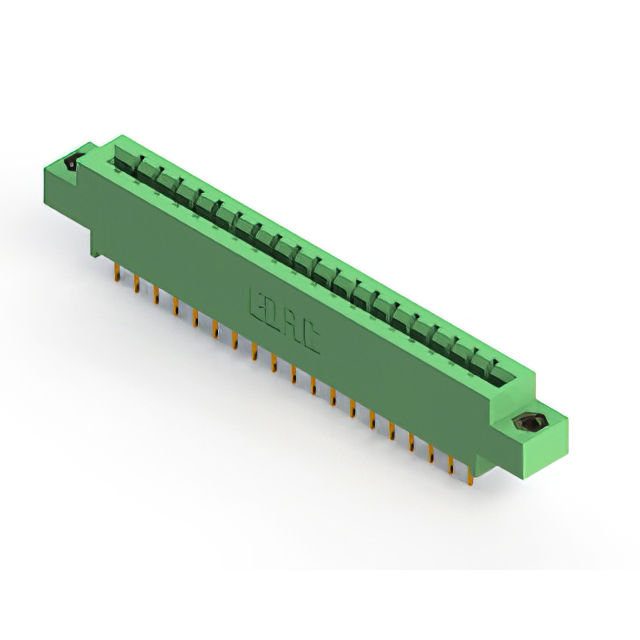

EDAC Inc. 833-019-558-608	1	Diallyl Phthalate (DAP)	19	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Gold	125 °C	-40 C	Cantilever	1	Solder	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in
EDAC Inc. 833-019-541-112	1	Diallyl Phthalate (DAP)	19	Copper Alloy	Side Mount Opening Unthreaded	Gold	125 °C	-40 C	Cantilever	1	Wire Wrap	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in	0.128 "	3.25 mm

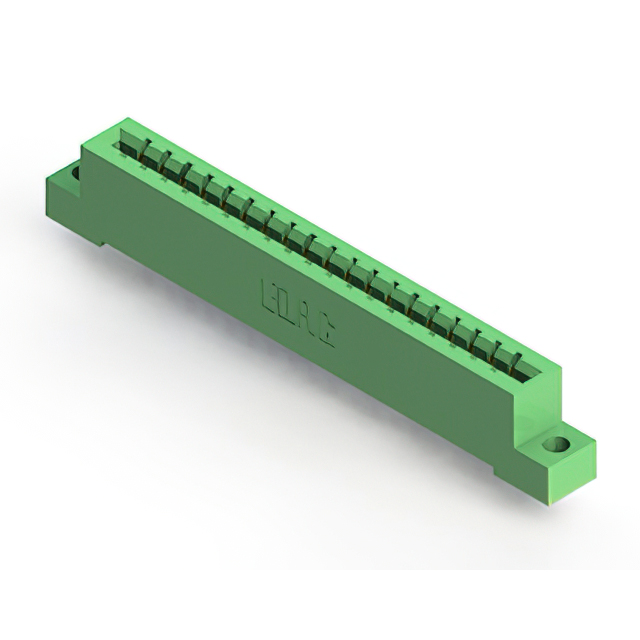

EDAC Inc. 833-019-500-104	1	Diallyl Phthalate (DAP)	19	Copper Alloy	Flush Mount Top Opening Unthreaded	Gold	125 °C	-40 C	Cantilever	1	Solder Eyelet(s)	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in	0.156 "	3.96 mm

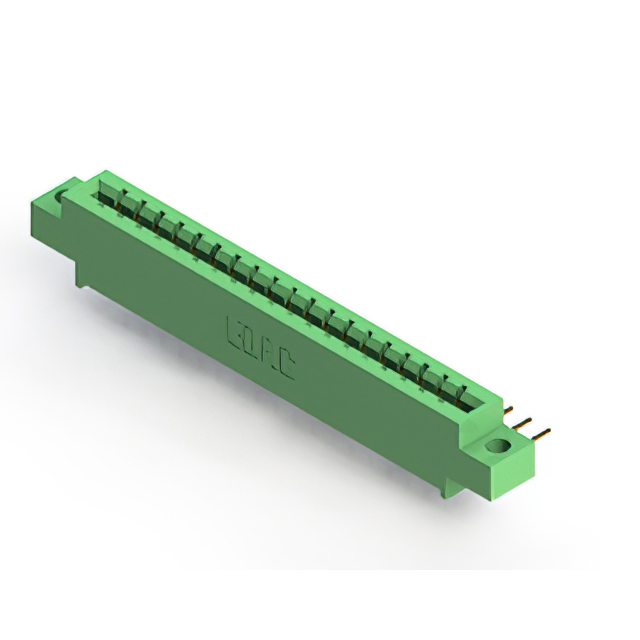

EDAC Inc. 833-019-559-604	1	Diallyl Phthalate (DAP)	19	Copper Alloy		Gold	125 °C	-40 C	Cantilever	1	Solder	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in	0.156 "	3.96 mm

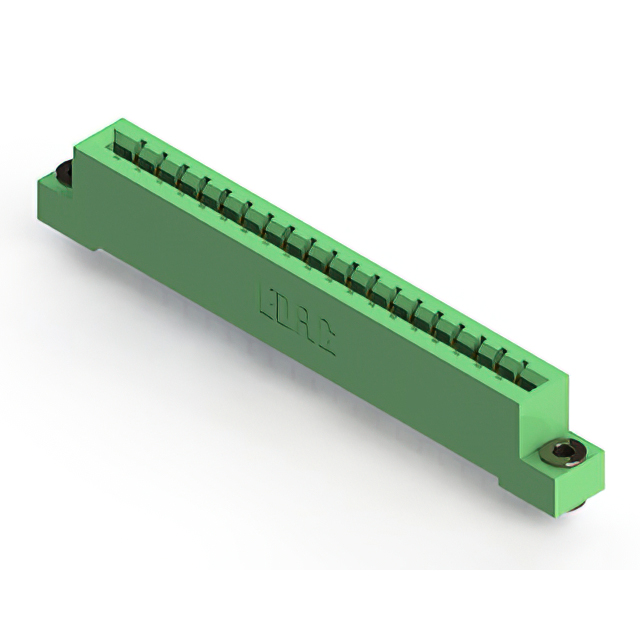

EDAC Inc. 833-019-524-103	1	Diallyl Phthalate (DAP)	19	Copper Alloy	Floating Bobbin Flush Mount	Gold	125 °C	-40 C	Cantilever	1	Solder	19	Non Specified - Single Edge	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	0.25 Ám	10 Áin	Green	3.96 mm	0.156 in	0.116 "	2.95 mm
