TPS651 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVALUATION MOD FOR TPS65131-63
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Current - Output | Voltage - Output | Contents | Regulator Topology | Main Purpose | Frequency - Switching | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

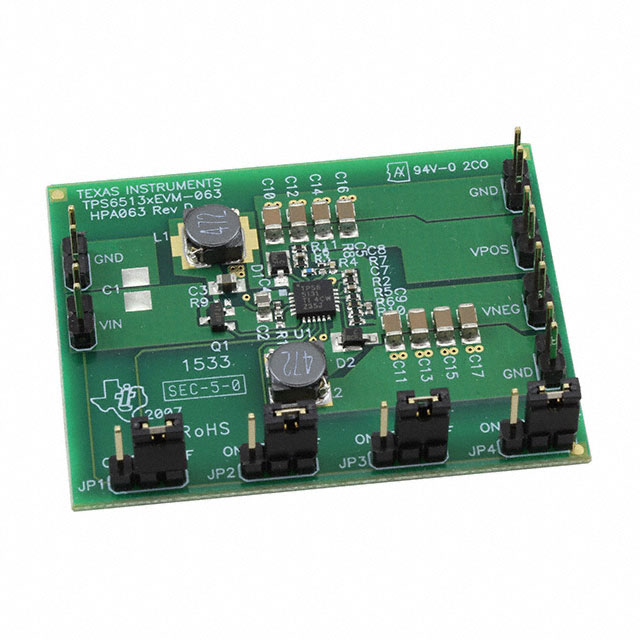

 Texas Instruments | 2 | 2 Non-Isolated Outputs Non-Isolated | Board(s) | Fully Populated | 3 V | 3.6 V | TPS65131 | 165 mA 410 mA | -12 V 12 V | Board(s) | Boost | DC/DC Positive and Negative | ||
 Texas Instruments | ||||||||||||||
 Texas Instruments | 2 | 2 Non-Isolated Outputs Non-Isolated | Board(s) | Fully Populated | 2.7 V | 5.5 V | TPS65130 | 260 mA 400 mA | -5 V 8 V | Board(s) | Boost | DC/DC Positive and Negative | 1.38 MHz | |

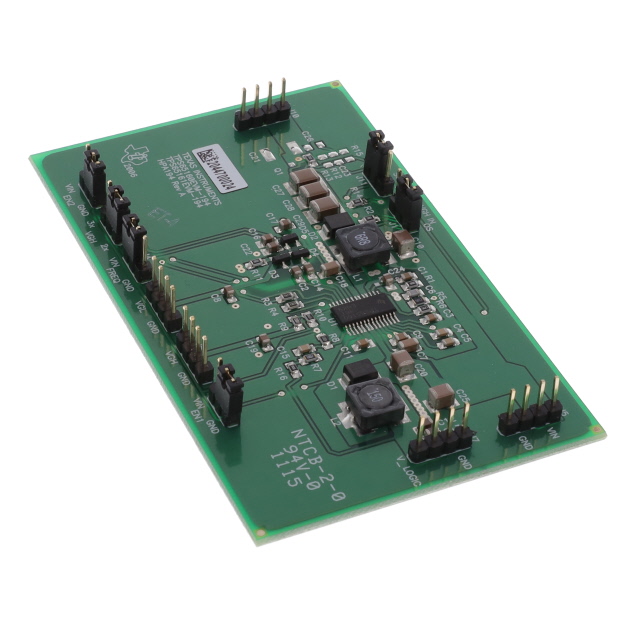

 Texas Instruments | 4 | 4 Non-Isolated Outputs Non-Isolated | Board(s) | Fully Populated | 11.4 V | 12.6 V | TPS65160 | 1.5 A 50 mA | -5 V 3.3 V 15 V 23 V | Board(s) | Buck-Boost | Special Purpose DC/DC LCD Supply | 750 kHz | 29.8 W |
