C4BSNB Series

Manufacturer: KEMET

Catalog

CAP, 1ΜF, 600VAC, 5%, PP, RADIAL

Part	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Capacitance	Package / Case	Dielectric Material	Termination	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]
KEMET C4BSNBX4100ZAFJ	DC Filtering DC Link Snubber	5 %	85 °C	-40 C	41.5 mm	1.634 in	20 mm	0.787 in	40 mm	1.575 in	Chassis Mount	1 µF	Rectangular Box	Polypropylene (PP) Metallized	Screw Terminals	3.7 mOhms	25.5 mm	1.004 in	1 kV	1 kVDC	600 V

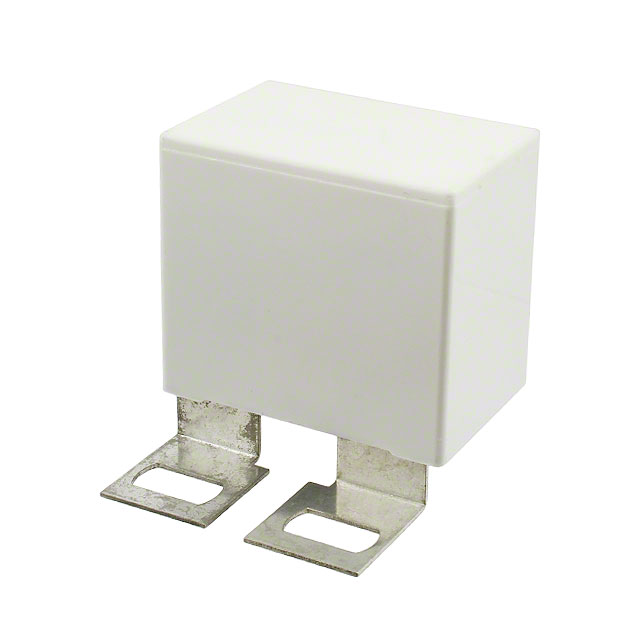

KEMET C4BSNBX4150ZBJJ	DC Filtering DC Link Snubber	5 %	85 °C	-40 C	42.5 mm	1.673 "		1.102 "			Chassis Mount	1500 nF	Rectangular Box	Polypropylene (PP) Metallized	Screw Terminals	2.5 mOhms	22 mm	0.866 "	1 kV	1 kVDC	600 V	37 mm	1.457 in	28 mm

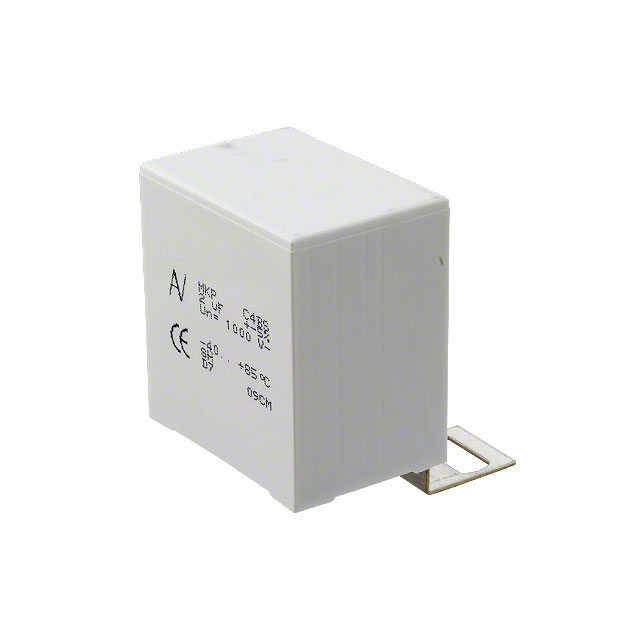

KEMET C4BSNBX4200ZBLJ	DC Filtering DC Link Snubber	5 %	85 °C	-40 C	42 mm	1.654 in	30 mm	1.181 in			Chassis Mount	2 µF	Rectangular Box	Polypropylene (PP) Metallized	Screw Terminals	2 mOhms	22 mm	0.866 "	1 kV	1 kVDC	600 V		1.772 "		45 mm
KEMET C4BSNBX4200ZALJ	DC Filtering DC Link Snubber	5 %	85 °C	-40 C	42 mm	1.654 in	30 mm	1.181 in			Chassis Mount	2 µF	Rectangular Box	Polypropylene (PP) Metallized	Screw Terminals	2 mOhms	25.5 mm	1.004 in	1 kV	1 kVDC	600 V		1.772 "		45 mm

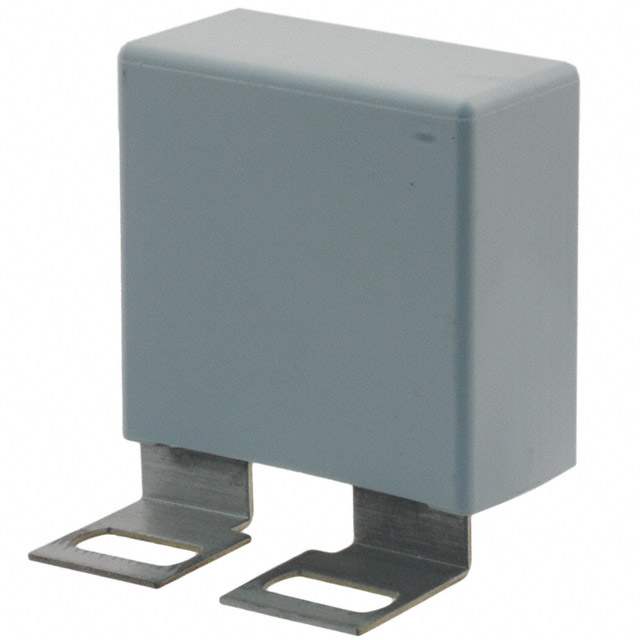

KEMET C4BSNBX4100ZBFJ	DC Filtering DC Link Snubber	5 %	85 °C	-40 C	41.5 mm	1.634 in	20 mm	0.787 in	40 mm	1.575 in	Chassis Mount	1 µF	Rectangular Box	Polypropylene (PP) Metallized	Screw Terminals	3.7 mOhms	22 mm	0.866 "	1 kV	1 kVDC	600 V

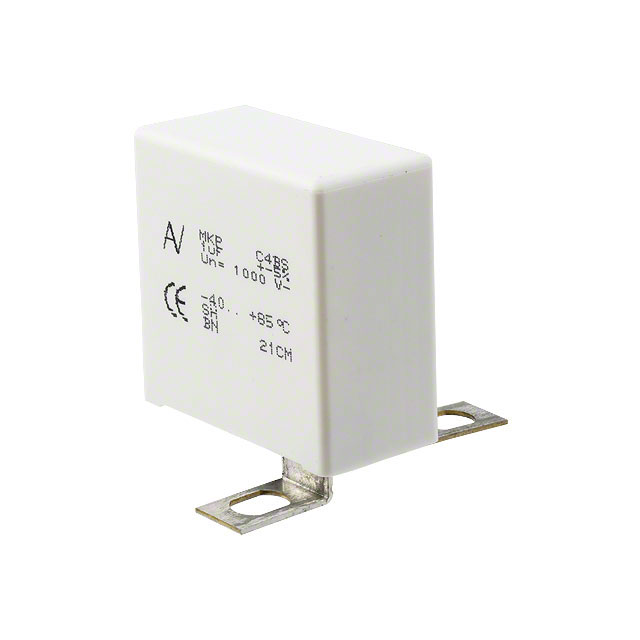

KEMET C4BSNBX4100ZEFJ	DC Filtering DC Link Snubber	5 %	85 °C	-40 C	41.5 mm	1.634 in	20 mm	0.787 in	40 mm	1.575 in	Chassis Mount	1 µF	Rectangular Box	Polypropylene (PP) Metallized	Screw Terminals	3.7 mOhms	33 mm	1.299 in	1 kV	1 kVDC	600 V

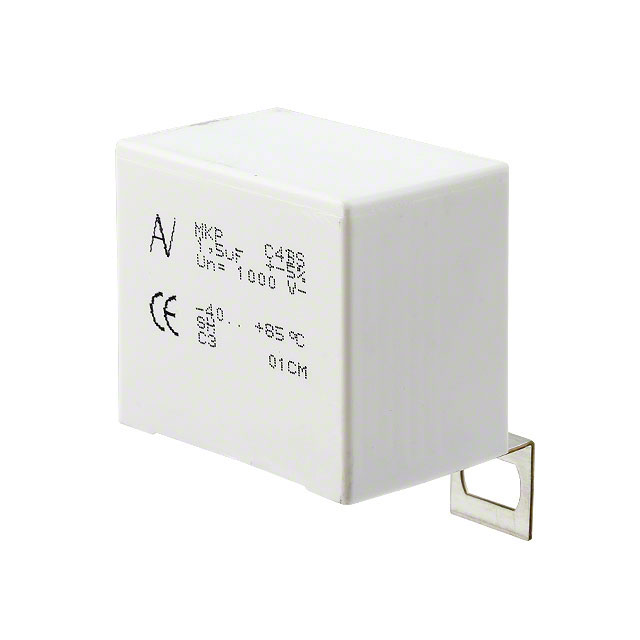

KEMET C4BSNBX4150ZAJJ	DC Filtering DC Link Snubber	5 %	85 °C	-40 C	42.5 mm	1.673 "		1.102 "			Chassis Mount	1500 nF	Rectangular Box	Polypropylene (PP) Metallized	Screw Terminals	2.5 mOhms	25.5 mm	1.004 in	1 kV	1 kVDC	600 V	37 mm	1.457 in	28 mm
KEMET C4BSNBX4100ZA0J	DC Filtering DC Link Snubber	5 %	85 °C	-40 C							Chassis Mount	1 µF	Rectangular Box	Polypropylene (PP) Metallized	Screw Terminals				1 kV	1 kVDC
KEMET C4BSNBX3470ZA0J	DC Filtering DC Link Snubber	5 %	85 °C	-40 C							Chassis Mount	0.47 µF	Rectangular Box	Polypropylene (PP) Metallized	Screw Terminals				1 kV	1 kVDC
KEMET C4BSNBX4250ZAMJ
