55416 Series

Catalog

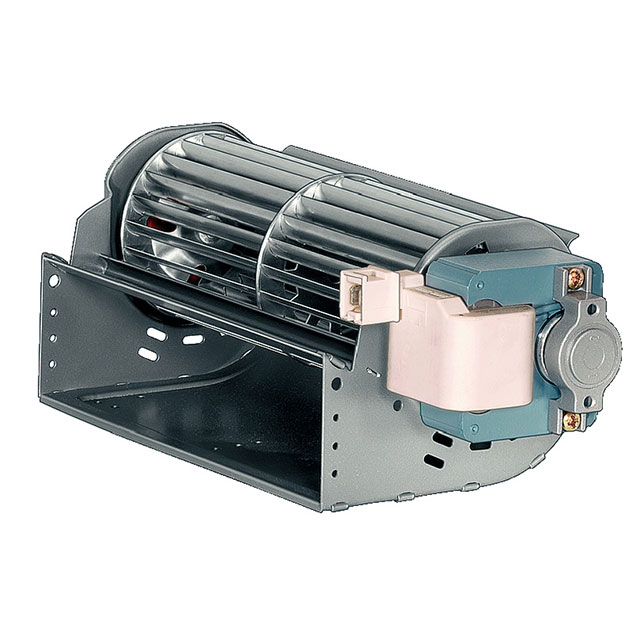

FAN BLOWER, QLN65AC SERIES, CROSSFLOW, 115 VAC, AC, 300 MM, 65 MM, 150 CFM

Part	Air Flow	Air Flow	Material - Blade [custom]	Material - Frame	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Width [x]	Fan Type	Bearing Type	Power (Watts)	Voltage - Rated	Static Pressure	Static Pressure	RPM	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [x]	Termination	Width	Weight [custom]	Weight [custom]	Size / Dimension	Noise	Size / Dimension [z]	Weight	Weight	Size / Dimension [custom]
ebm-papst Inc. 55416.35031	4.2 mł/min	150 CFM	Aluminum	Steel	60 °C	0 °C	0 °C	60 °C	108 mm	Blower Cross Flow	Sleeve	65 W	115 VAC	0.442 in H2O	110 Pa	1400 RPM	65 mm	90 mm	400 mm	Terminal Block
ebm-papst Inc. 55416.27260	3.19 m³/min	114 CFM			60 °C	0 °C	0 °C	60 °C		Blower Cross Flow	Sleeve	49 W	115 VAC	0.373 in H2O	93 Pa	1700 RPM					71 mm
ebm-papst Inc. 55416.32130	3.61 m³/min	129 CFM	Aluminum	Steel	60 °C	0 °C	0 °C	60 °C		Blower Cross Flow	Sleeve	55 W	115 VAC	0.333 in H2O	83 Pa	1500 RPM				Terminal Block		3.2 lbs	1.5 kg

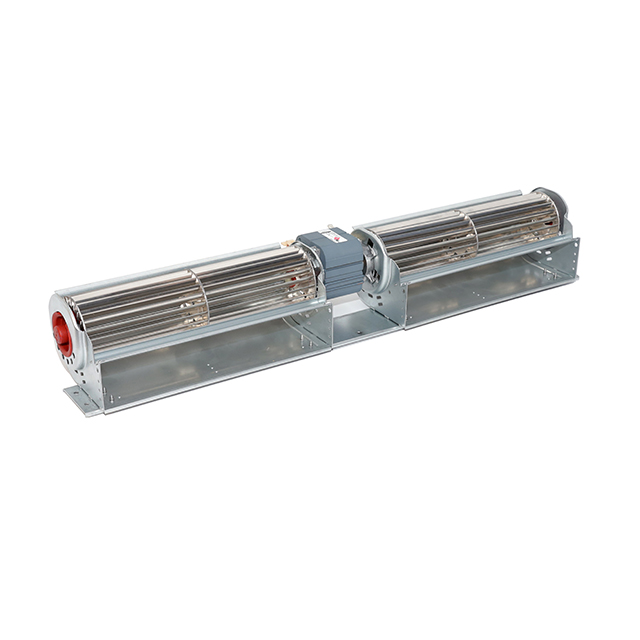

ebm-papst Inc. 55416.34099	5.26 m³/min	188 CFM			60 °C	0 °C	0 °C	60 °C		Blower Cross Flow	Sleeve	54 W	115 VAC	0.433 in H2O	107.9 Pa	1050 RPM					71 mm
ebm-papst Inc. 55416.32080	3.56 m³/min	127 CFM	Aluminum	Steel					108 mm	Blower Cross Flow	Sleeve	56 W	115 VAC				65 mm	90 mm	605 mm	Terminal Block				Rectangular	46 dB(A)
ebm-papst Inc. 55416.25078
ebm-papst Inc. 55416.25170	3.19 m³/min	114 CFM	Aluminum	Steel	60 °C	0 °C	0 °C	60 °C	108 mm	Blower Cross Flow	Sleeve	49 W	115 VAC	0.373 in H2O	93 Pa	1700 RPM	65 mm		266 mm	Terminal Block				Rectangular		90 mm	2.7 lbs	1.2 kg
ebm-papst Inc. 55416.17090	2.07 mł/min	74 CFM	Aluminum	Steel	60 °C	0 °C	0 °C	60 °C	108 mm	Blower Cross Flow	Sleeve	42 W	115 VAC	0.2 in H2O	49.8 Pa	1950 RPM	65 mm	90 mm	196 mm	Terminal Block							2 lbs	907.2 g
ebm-papst Inc. 55416.37070	4.2 mł/min	150 CFM	Aluminum	Steel	60 °C	0 °C	0 °C	60 °C	108 mm	Blower Cross Flow	Sleeve	65 W	115 VAC	0.442 in H2O	110 Pa	1400 RPM	65 mm	90 mm	400 mm	Terminal Block
ebm-papst Inc. 55416.30250	3.61 m³/min	129 CFM	Aluminum	Steel	60 °C	0 °C	0 °C	60 °C	108 mm	Blower Cross Flow	Sleeve	55 W	115 VAC	0.333 in H2O	83 Pa	1500 RPM		90 mm	331 mm	Terminal Block		3.2 lbs	1.5 kg						65 mm
