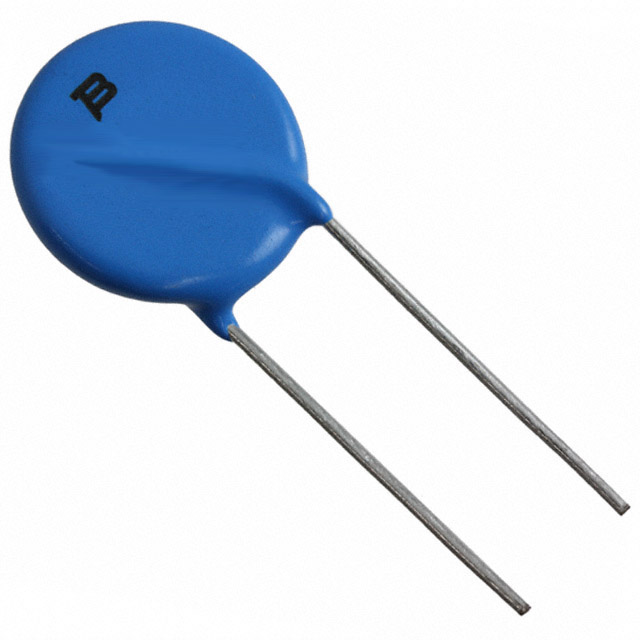

MOV-20 Series

Catalog

VARISTOR 22V 2KA DISC 20MM

Part	Energy	Capacitance @ Frequency	Maximum AC Volts [Max]	Varistor Voltage (Max) [Max]	Maximum DC Volts [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Current - Surge	Mounting Type	Number of Circuits	Varistor Voltage (Min) [Min]	Varistor Voltage (Typ)	Maximum DC Volts
Bourns Inc. MOV-20D220KTR	14 J	24000 pF	14 V	24 V	18 V	-40 C	105 ░C	20 mm	Disc	2 kA	Through Hole	1	20 V	22 V
Bourns Inc. MOV-20D181KTR	85 J	1 kHz 2640 pF	115 V	198 V	150 V	-40 C	105 ░C	20 mm	Disc		Through Hole	1	162 V	180 V
Bourns Inc. MOV-20D271KTR	127 J	1 kHz 1800 pF	175 V	297 V	225 V	-40 C	105 ░C	20 mm	Disc		Through Hole	1	243 V	270 V
Bourns Inc. MOV-20D182K	625 J	312 pF	1.1 kV	1.98 kV	1.465 kV	-40 C	105 ░C	20 mm	Disc		Through Hole	1	1620 V	1800 V
Bourns Inc. MOV-20D560KTR	41 J	13200 pF	35 V	62 V	45 V	-40 C	105 ░C	20 mm	Disc	2 kA	Through Hole	1	50 V	56 V
Bourns Inc. MOV-20D270KTR	18 J	21600 pF	17 V	30 V	22 V	-40 C	105 ░C	20 mm	Disc	2 kA	Through Hole	1	24 V	27 V
Bourns Inc. MOV-20D301K		1560 pF	190 V	330 V	250 V	-40 C	105 ░C	20 mm	Disc		Through Hole	1	270 V	300 V
Bourns Inc. MOV-20D152K	383 J	1 kHz 384 pF	940 V	1650 V	1.2 kV	-40 C	105 ░C	20 mm	Disc		Through Hole	1	1.35 kV	1.5 kV
Bourns Inc. MOV-20D301KTR		1560 pF	190 V	330 V	250 V	-40 C	105 ░C	20 mm	Disc		Through Hole	1	270 V	300 V
Bourns Inc. MOV-20D101K	45 J	1 kHz 5040 pF	60 V	110 V		-40 C	105 ░C	20 mm	Disc		Through Hole	1	90 V	100 V	85 V
