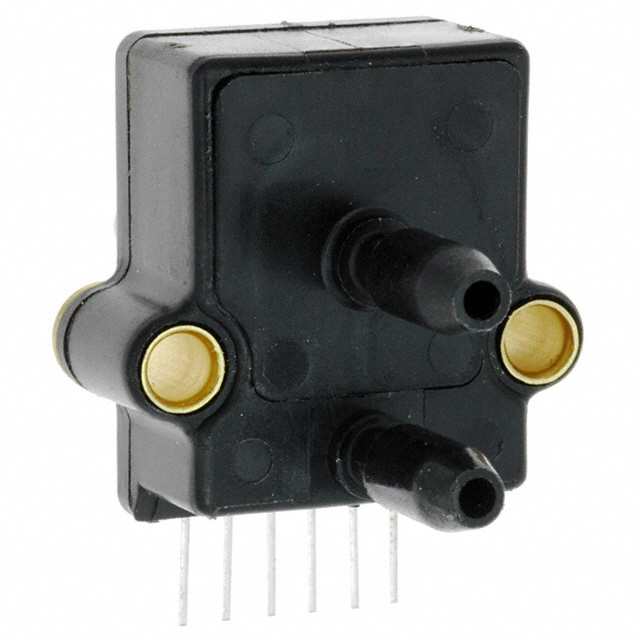

SCX05 Series

Catalog

SENSOR 5PSID 0.19" .06V

Part	Maximum Pressure	Maximum Pressure	Termination Style	Pressure Type	Output Type	Mounting Type	Output [Min]	Output	Output [Max]	Voltage - Supply	Port Style	Applications	Features	Accuracy	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Port Size	Port Size

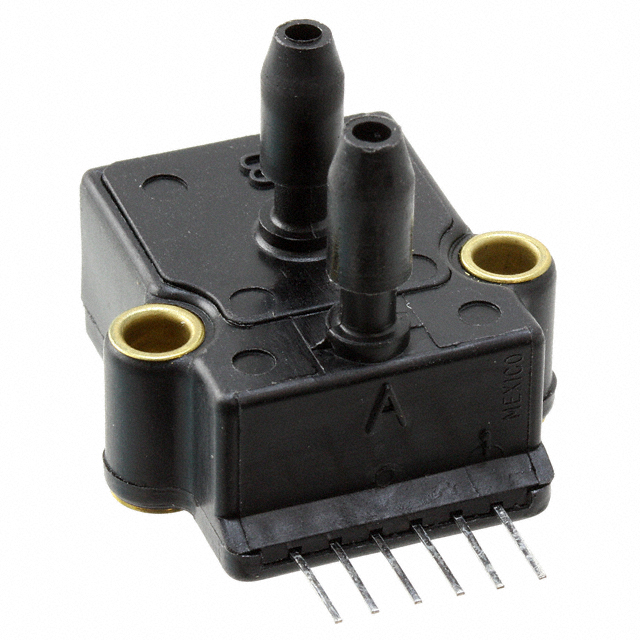

Honeywell Sensing and Productivity Solutions SCX05DNC	20 PSI	137.9 kPa	PC Pin	Differential	Wheatstone Bridge	Through Hole	0 mV	12V	60 mV	20 V	Barbed	Board Mount	Temperature Compensated	0.05 %	34.47 kPa	5 PSI	85 °C	-40 °C	6-SIP Module	4.8 mm 4.826 mm	Dual Male Tube
Honeywell Sensing and Productivity Solutions SCX05DN	20 PSI	137.9 kPa	PC Pin	Differential	Wheatstone Bridge	Through Hole	0 mV	12V	60 mV	20 V	Barbed	Board Mount	Temperature Compensated	1 %	34.47 kPa	5 PSI	85 °C	-40 °C	6-SIP Module	4.8 mm 4.826 mm	Dual Male Tube
