SF2189 Series

Manufacturer: RFMi

Catalog

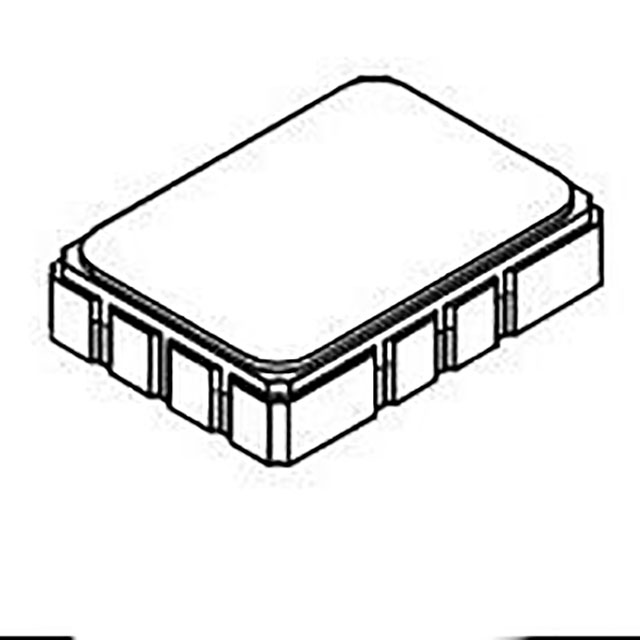

FILTER, SAW, 140 MHZ, 12SMD

Part	Mounting Type	Package / Case	Applications	Bandwidth	Frequency - Center	Height (Max) [z]	Ratings	Insertion Loss	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
RFMi SF2189A	Surface Mount	12-SMD No Lead	IF	33 MHz 35 MHz 42.4 MHz	140 MHz	0.079 in 2 mm	AEC-Q200	11.3 dB	6.5 mm	13.31 mm	0.256 "	0.524 "
RFMi SF2189A	Surface Mount	12-SMD No Lead	IF	33 MHz 35 MHz 42.4 MHz	140 MHz	0.079 in 2 mm	AEC-Q200	11.3 dB	6.5 mm	13.31 mm	0.256 "	0.524 "
