TAS6424M-Q1 Series

Automotive, 45-W, 2-MHz, 4-ch 4.5- to 18-V digital input Class-D audio amplifier w/ load dump

Catalog

Automotive, 45-W, 2-MHz, 4-ch 4.5- to 18-V digital input Class-D audio amplifier w/ load dump

Part	Mounting Type	Features	Qualification	Package / Case	Package / Case	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Type	Output Type	Supplier Device Package	Utilized IC / Part	Supplied Contents	Board Type
Texas Instruments TAS6424LQDKQRQ1	Surface Mount	Depop Short-Circuit Thermal Protection	AEC-Q100	7.5 mm	0.295 in	56-PowerBSSOP	18 V	4.5 V	-40 °C	125 °C	Automotive	2 Ohm	80 W	4	Class D	4-Channel (Quad)	56-HSSOP
Texas Instruments TAS6424MQDKQRQ1			AEC-Q100								Automotive

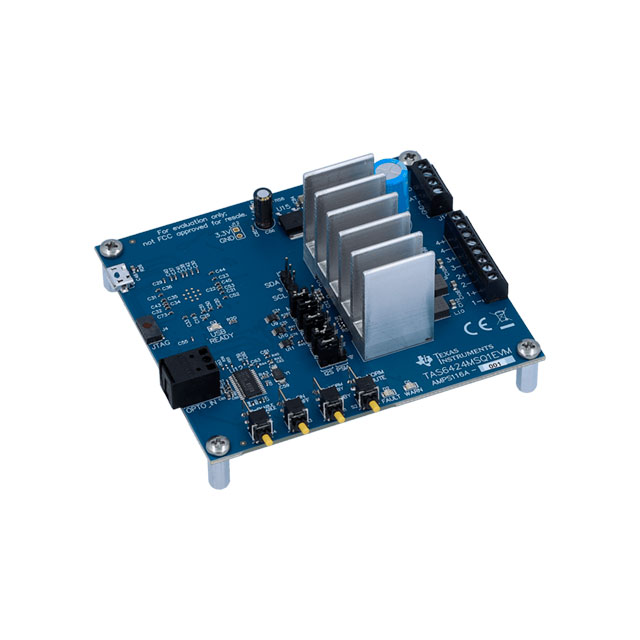

Texas Instruments TAS6424MSQ1EVM							18 V	4.5 V					27 W 45 W 80 W			4-Channel (Stereo)		TAS6424MS-Q1	Board(s) Cable(s)	Fully Populated
Texas Instruments TAS6424QDKQRQ1	Surface Mount	Depop Short-Circuit Thermal Protection	AEC-Q100	7.5 mm	0.295 in	56-PowerBSSOP	26.4 V	4.5 V	-40 °C	125 °C	Automotive		75 W 150 W		Class D	4-Channel (Quad)	56-HSSOP

Catalog

Automotive, 45-W, 2-MHz, 4-ch 4.5- to 18-V digital input Class-D audio amplifier w/ load dump

Key Features

• AEC-Q100 Qualified for Automotive ApplicationsDevice Temperature Grade 1:–40°C to +125°C TAAdvanced Load DiagnosticsDC Diagnostics run without Input ClocksAC Diagnostic for Tweeter Detection with Impedance and Phase ResponseEasily meet CISPR25-L5 EMC SpecificationAudio Inputs4 Channel I2S or 4/8-Channel TDM InputInput Sample Rates: 44.1 kHz, 48 kHz, 96 kHzInput Formats: 16-bit to 32-bit I2S, and TDMAudio OutputsFour-Channel Bridge-Tied Load (BTL)Two-Channel Parallel BTL (PBTL)Up to 2.1 MHz Output Switching Frequency27 W, 10% THD Into 4 Ω at 14.4 V BTL45 W, 10% THD Into 2 Ω at 14.4 V BTL80 W, 10% THD Into 2 Ω at 18 V PBTLAudio Performance Into 4 Ω at 14.4 V BTLTHD+N < 0.02% at 1 W42 µVRMSOutput Noise–90 dB CrosstalkLoad DiagnosticsOutput Open and Shorted LoadOutput-to-Battery or Ground ShortsLine Output Detection Up to 6 kΩHost-Independent OperationProtectionOutput Current LimitingOutput Short Protection40 V Load DumpOpen Ground and Power TolerantDC OffsetOvertemperatureUndervoltage and OvervoltageGeneral Operation4.5 V to 18 V Supply voltageI2C Control With 4 Address OptionsClip Detection and Thermal WarningAEC-Q100 Qualified for Automotive ApplicationsDevice Temperature Grade 1:–40°C to +125°C TAAdvanced Load DiagnosticsDC Diagnostics run without Input ClocksAC Diagnostic for Tweeter Detection with Impedance and Phase ResponseEasily meet CISPR25-L5 EMC SpecificationAudio Inputs4 Channel I2S or 4/8-Channel TDM InputInput Sample Rates: 44.1 kHz, 48 kHz, 96 kHzInput Formats: 16-bit to 32-bit I2S, and TDMAudio OutputsFour-Channel Bridge-Tied Load (BTL)Two-Channel Parallel BTL (PBTL)Up to 2.1 MHz Output Switching Frequency27 W, 10% THD Into 4 Ω at 14.4 V BTL45 W, 10% THD Into 2 Ω at 14.4 V BTL80 W, 10% THD Into 2 Ω at 18 V PBTLAudio Performance Into 4 Ω at 14.4 V BTLTHD+N < 0.02% at 1 W42 µVRMSOutput Noise–90 dB CrosstalkLoad DiagnosticsOutput Open and Shorted LoadOutput-to-Battery or Ground ShortsLine Output Detection Up to 6 kΩHost-Independent OperationProtectionOutput Current LimitingOutput Short Protection40 V Load DumpOpen Ground and Power TolerantDC OffsetOvertemperatureUndervoltage and OvervoltageGeneral Operation4.5 V to 18 V Supply voltageI2C Control With 4 Address OptionsClip Detection and Thermal Warning

Description

The TAS6424L-Q1 device is a four-channel digital-input Class-D audio amplifier designed for use in automotive head units and external amplifier modules. The device provides four channels at 27 W into 4 Ω at 10% THD+N and 27 W into 2 Ω at 10% THD+N from a 14.4 V supply . The Class-D topology dramatically improves efficiency over traditional linear amplifier solutions. The output switching frequency can be set either above the AM band, which eliminates the AM-band interference and reduces output filtering and cost, or below AM band to optimize efficiency. The wide supply-voltage range from 4.5 V to 18 V helps minimize audio artefacts in start-stop applications The device incorporates all the functionality required to perform in the demanding OEM applications area. The device has a built-in load diagnostic function for detecting and diagnosing misconnected outputs as well as detection AC-coupled tweeters to help to reduce test time during the manufacturing process. The device is offered in a 56-pin HSSOP PowerPAD™ package with the exposed thermal pad up. For a pin compatible two-channel devices see the TAS6422-Q1 device. The TAS6424L-Q1 device is a four-channel digital-input Class-D audio amplifier designed for use in automotive head units and external amplifier modules. The device provides four channels at 27 W into 4 Ω at 10% THD+N and 27 W into 2 Ω at 10% THD+N from a 14.4 V supply . The Class-D topology dramatically improves efficiency over traditional linear amplifier solutions. The output switching frequency can be set either above the AM band, which eliminates the AM-band interference and reduces output filtering and cost, or below AM band to optimize efficiency. The wide supply-voltage range from 4.5 V to 18 V helps minimize audio artefacts in start-stop applications The device incorporates all the functionality required to perform in the demanding OEM applications area. The device has a built-in load diagnostic function for detecting and diagnosing misconnected outputs as well as detection AC-coupled tweeters to help to reduce test time during the manufacturing process. The device is offered in a 56-pin HSSOP PowerPAD™ package with the exposed thermal pad up. For a pin compatible two-channel devices see the TAS6422-Q1 device.
