G125-MH2 Series

Catalog

25+25 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES (T+R) ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Connector Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Shape	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Style	Termination	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Contact Finish - Post	Number of Rows [custom]	Fastening Type	Number of Positions	Shrouding	Number of Positions Loaded	Insulation Height	Insulation Height	Mounting Type	Contact Type	Contact Material	Insulation Height [z]	Number of Positions [custom]	Features	Insulation Height [z]
Harwin Inc. G125-MH25005L2R	0.203 µm	8 µin	8 µin	0.203 µm	Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.189 in	4.8 mm	450 VAC/DC	Gold	2	Latch Lock	50	Shrouded - 4 Wall	All	5.55 mm	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze

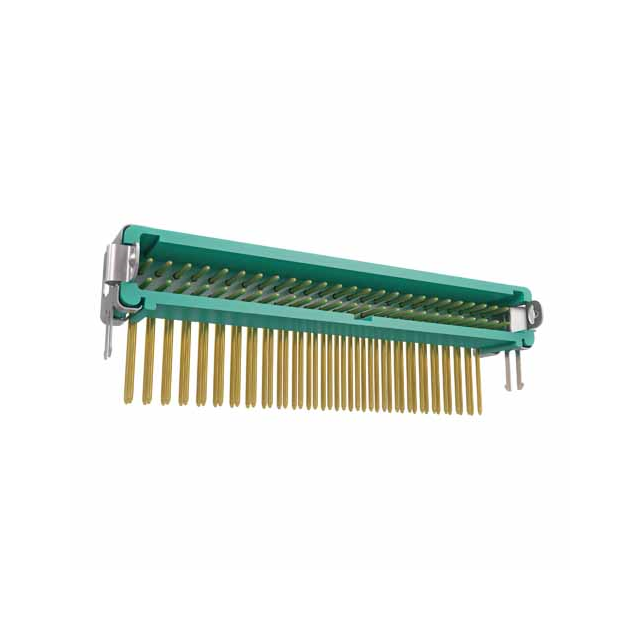

Harwin Inc. G125-MH25005L2P	0.203 µm	8 µin	8 µin	0.203 µm	Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.189 in	4.8 mm	450 VAC/DC	Gold	2	Latch Lock	50	Shrouded - 4 Wall	All	5.55 mm	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze

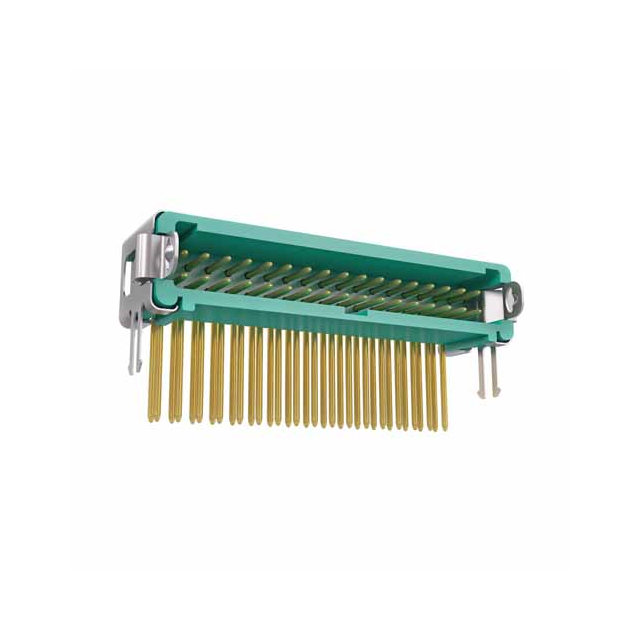

Harwin Inc. G125-MH23405L2P					Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2.8 A	Circular	Glass Filled Nylon Polyamide (PA)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.185 in	4.7 mm		Gold	2	Latch Lock		Shrouded - 4 Wall	All	5.5 mm 5.51 mm	0.217 in	Through Hole	Male Pin	Phosphor Bronze	0.217 in	34

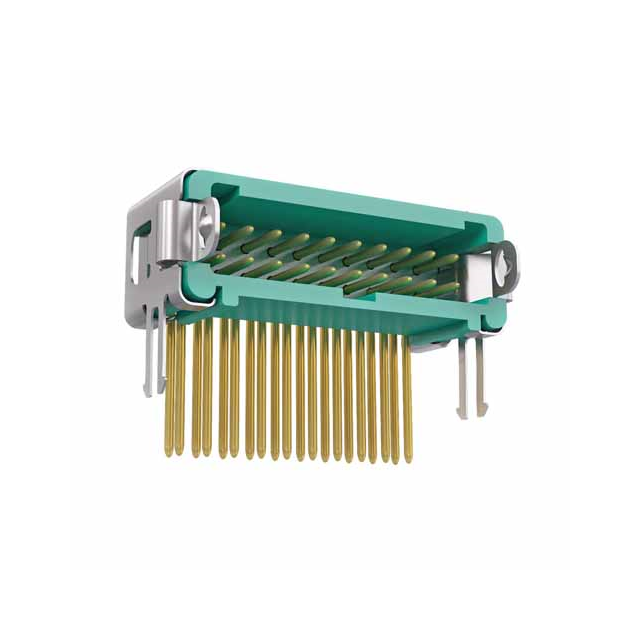

Harwin Inc. G125-MH22005L2P			8 µin	0.203 µm	Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.189 in	4.8 mm	250 V		2	Latch Holder	20	Shrouded - 4 Wall	All			Right Angle Through Hole	Male Pin	Phosphor Bronze	0.219 in		Solder Retention	5.56 mm
Harwin Inc. G125-MH21605L2R	0.203 µm	8 µin	8 µin	0.203 µm	Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.189 in	4.8 mm	450 VAC/DC	Gold	2	Latch Lock	16	Shrouded - 4 Wall	All	5.55 mm	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze

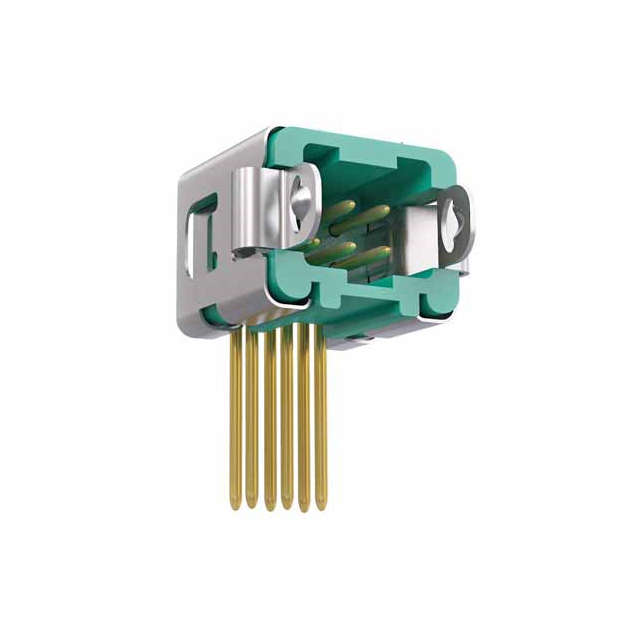

Harwin Inc. G125-MH20605L3P	0.203 µm	8 µin	8 µin	0.203 µm	Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.189 in	4.8 mm	450 VAC/DC	Gold	2	Latch Lock	6	Shrouded - 4 Wall	All	5.55 mm	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze			Solder Retention
Harwin Inc. G125-MH21005L2R	0.203 µm	8 µin	8 µin	0.203 µm	Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.189 in	4.8 mm	450 VAC/DC	Gold	2	Latch Lock	10	Shrouded - 4 Wall	All	5.55 mm	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
Harwin Inc. G125-MH20605L2R	0.203 µm	8 µin	8 µin	0.203 µm	Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.189 in	4.8 mm	450 VAC/DC	Gold	2	Latch Lock	6	Shrouded - 4 Wall	All	5.55 mm	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze

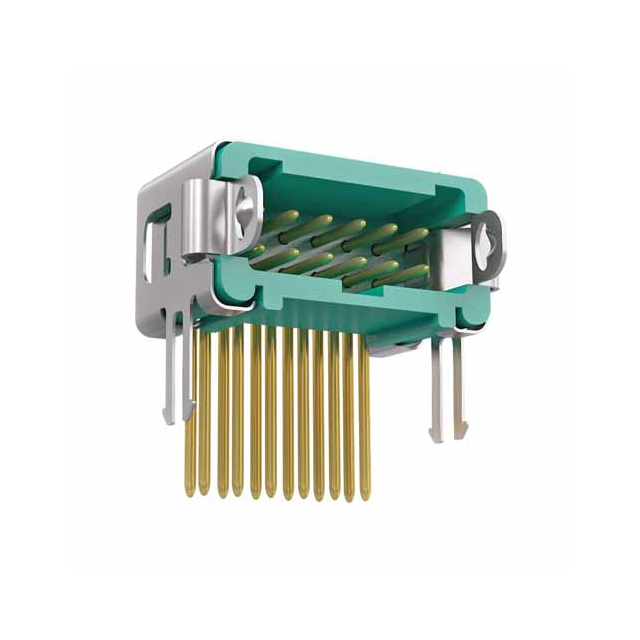

Harwin Inc. G125-MH21205L2P	0.203 µm	8 µin	8 µin	0.203 µm	Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.189 in	4.8 mm	450 VAC/DC	Gold	2	Latch Lock	12	Shrouded - 4 Wall	All	5.55 mm	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
Harwin Inc. G125-MH21205L2R	0.203 µm	8 µin	8 µin	0.203 µm	Gold	150 °C	-65 ░C	Green	Header	0.049 in	1.25 mm	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	1.25 mm	0.049 in	Board to Board Cable	Solder	UL94 V-0	0.189 in	4.8 mm	450 VAC/DC	Gold	2	Latch Lock	12	Shrouded - 4 Wall	All	5.55 mm	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
