540-44 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN SOCKET PLCC 32POS TIN

Part	Contact Resistance	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Pitch - Post	Pitch - Post	Type	Contact Material - Mating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Contact Material - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Contact Finish Thickness - Post	Number of Positions or Pins (Grid) [custom]	Contact Finish Thickness - Post	Current Rating (Amps)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]

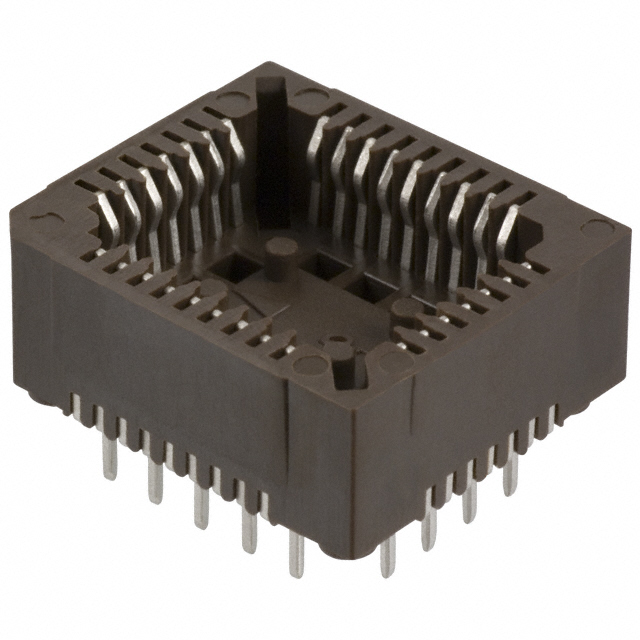

Mill-Max Manufacturing Corp. 540-44-032-24-000000	20 mOhm	UL94 V-0	1.27 mm	0.05 in	Closed Frame	-55 C	125 °C	Tin	0.05 in	1.27 mm	PLCC	Copper Alloy	32	7 9	2	Copper Alloy	150 Áin	3.81 Ám	Solder	Through Hole	3.81 Ám

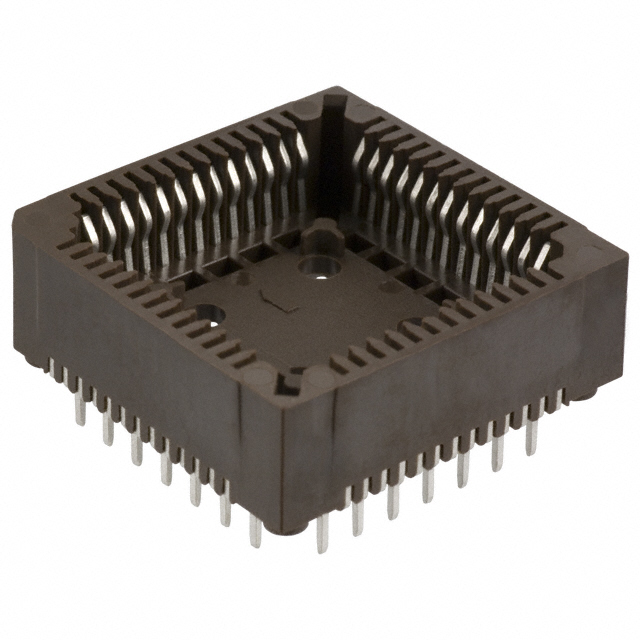

Mill-Max Manufacturing Corp. 540-44-052-24-000000	20 mOhm	UL94 V-0	1.27 mm	0.05 in	Closed Frame	-55 C	125 °C	Tin	0.1 in	2.54 mm	PLCC	Copper Alloy	52			Copper Alloy	150 Áin	3.81 Ám	Solder	Through Hole	3.81 Ám	4 x 13
Mill-Max Manufacturing Corp. 540-44-028-17-400004		UL94 V-0	1.27 mm	0.05 in	Closed Frame			Tin	0.05 in	1.27 mm	PLCC		28				100 çin	2.54 çm	Solder	Surface Mount	5.08 µm		200 µin

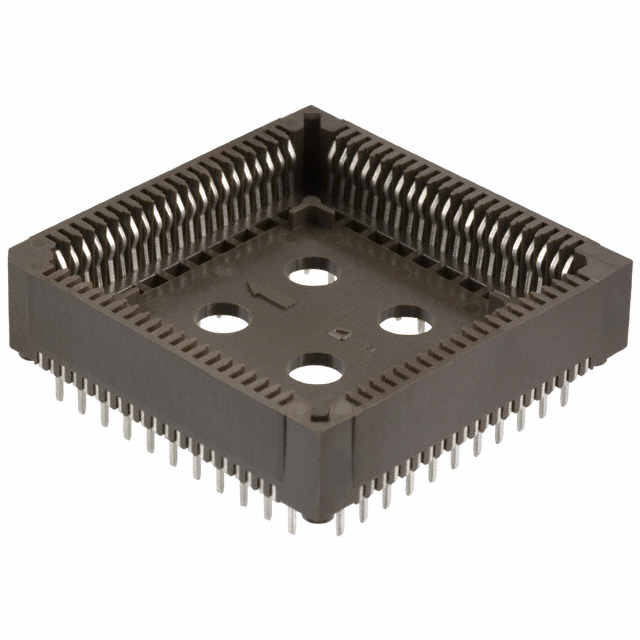

Mill-Max Manufacturing Corp. 540-44-084-24-000000	20 mOhm	UL94 V-0	1.27 mm	0.05 in	Closed Frame	-55 C	125 °C	Tin	0.1 in	2.54 mm	PLCC	Copper Alloy				Copper Alloy	150 Áin	3.81 Ám	Solder	Through Hole	3.81 Ám
Mill-Max Manufacturing Corp. 540-44-068-17-400004	20 mOhm	UL94 V-0	1.27 mm	0.05 in	Closed Frame	-55 C	125 °C	Tin	0.05 in	1.27 mm	PLCC	Copper Alloy				Copper Alloy			Solder	Surface Mount				1 A	4	17	68

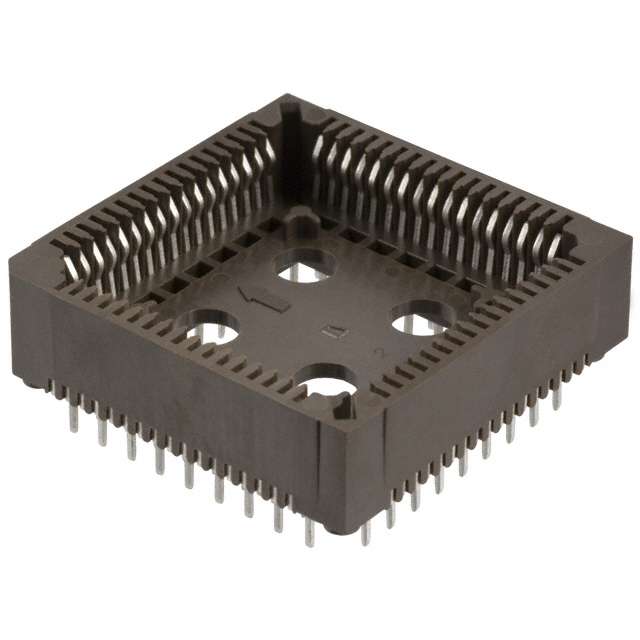

Mill-Max Manufacturing Corp. 540-44-068-24-000000	20 mOhm	UL94 V-0	1.27 mm	0.05 in	Closed Frame	-55 C	125 °C	Tin	0.1 in	2.54 mm	PLCC	Copper Alloy				Copper Alloy	150 Áin	3.81 Ám	Solder	Through Hole	3.81 Ám				4	17	68

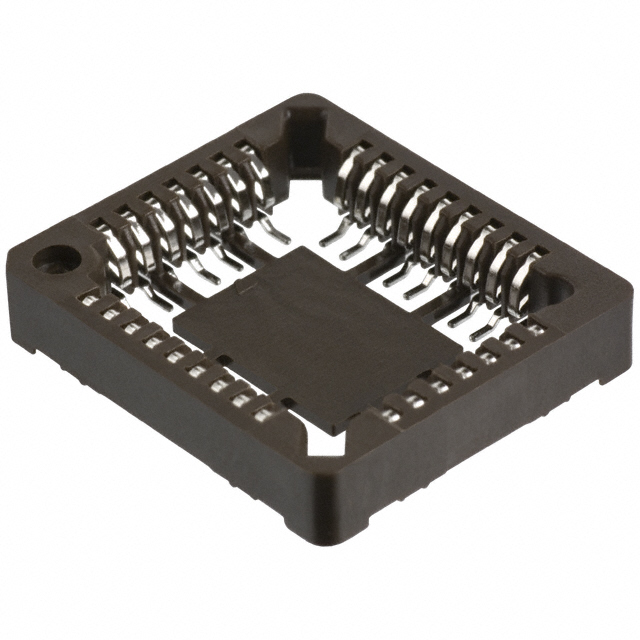

Mill-Max Manufacturing Corp. 540-44-032-17-400000	20 mOhm	UL94 V-0	1.27 mm	0.05 in	Closed Frame	-55 C	125 °C	Tin	0.1 in	2.54 mm	PLCC	Copper Alloy	32	7 9	2	Copper Alloy	150 Áin	3.81 Ám	Solder	Surface Mount	3.81 Ám

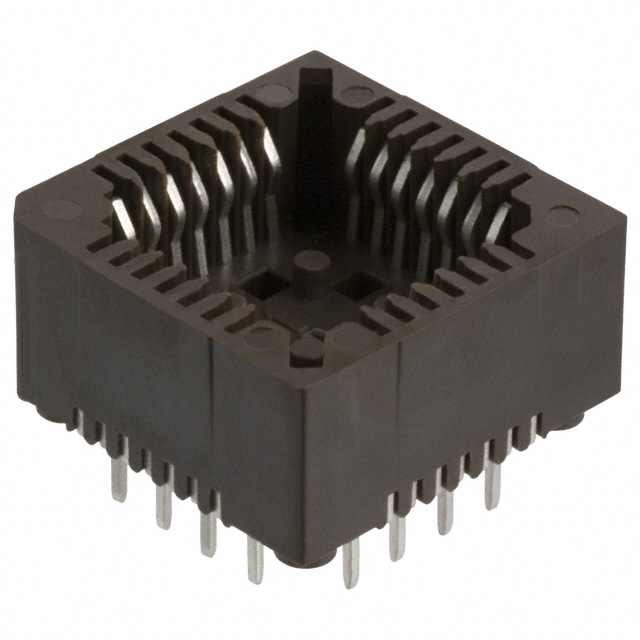

Mill-Max Manufacturing Corp. 540-44-028-24-000000	20 mOhm	UL94 V-0	1.27 mm	0.05 in	Closed Frame	-55 C	125 °C	Tin	0.1 in	2.54 mm	PLCC	Copper Alloy	28			Copper Alloy	150 Áin	3.81 Ám	Solder	Through Hole	3.81 Ám

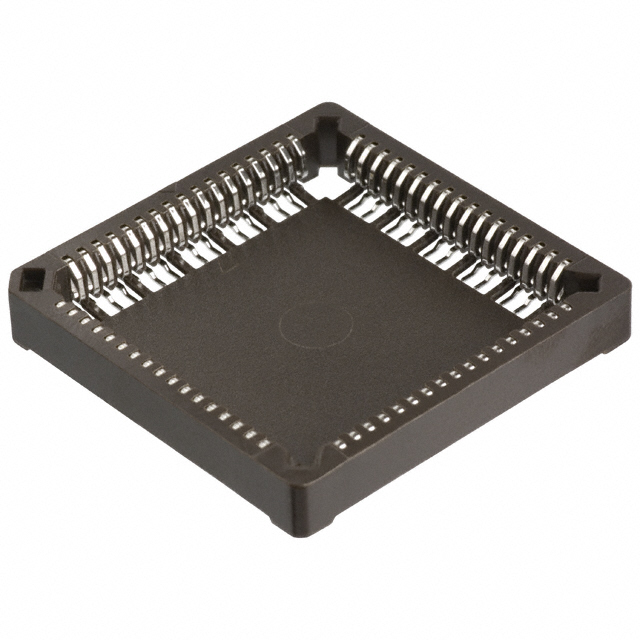

Mill-Max Manufacturing Corp. 540-44-068-17-400000	20 mOhm	UL94 V-0	1.27 mm	0.05 in	Closed Frame	-55 C	125 °C	Tin	0.05 in	1.27 mm	PLCC	Copper Alloy				Copper Alloy	150 Áin	3.81 Ám	Solder	Surface Mount	3.81 Ám				4	17	68

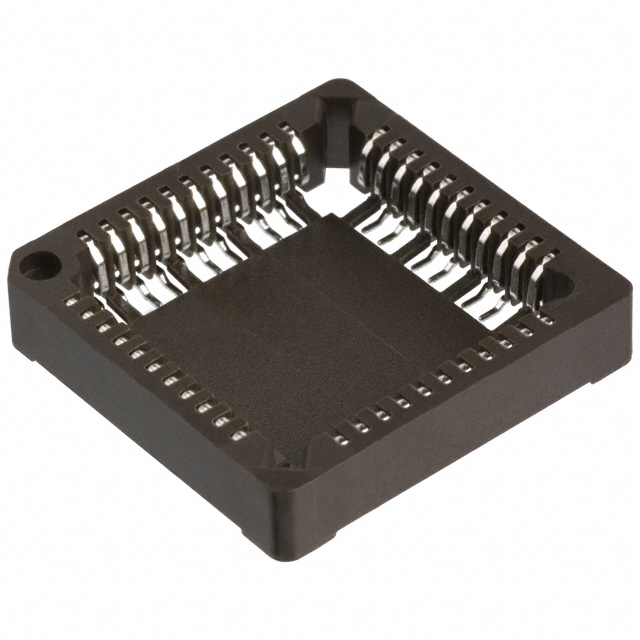

Mill-Max Manufacturing Corp. 540-44-044-17-400004		UL94 V-0	1.27 mm	0.05 in	Closed Frame			Tin	0.05 in	1.27 mm	PLCC		44	11	4		100 çin	2.54 çm	Solder	Surface Mount	5.08 µm		200 µin
