HCPL-6650 Series
Manufacturer: Broadcom Limited
Beta
⌘K

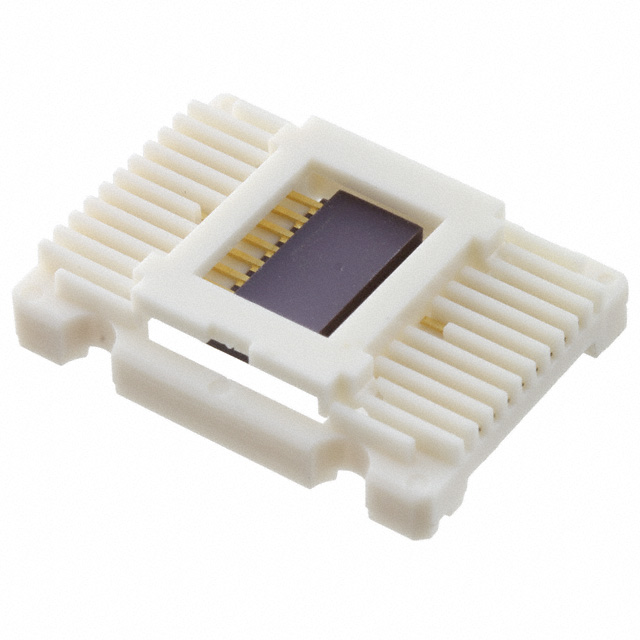

OPTOISO 1.5KV OPEN COLL 16FLATPK
| Part | Propagation Delay tpLH / tpHL (Max) [custom] | Propagation Delay tpLH / tpHL (Max) [custom] | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of Channels | Mounting Type | Package / Case | Common Mode Transient Immunity (Min) [Min] | Current - DC Forward (If) (Max) [Max] | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Current - Output / Channel | Operating Temperature [Min] | Operating Temperature [Max] | Data Rate | Voltage - Isolation | Voltage - Forward (Vf) (Typ) | Input Type | Output Type | Inputs - Side 1/Side 2 | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 100 ns | 100 ns | 4.5 V | 5.5 V | 4 | Surface Mount | 16-FlatPack | 1 kV/µs | 20 mA | 35 ns | 35 ns | 25 mA | -55 °C | 125 °C | 10 Mbps | 1.5 kV | 1.5 V | DC | Open Collector Schottky Clamped | 4/0 | 16-Flatpack |
