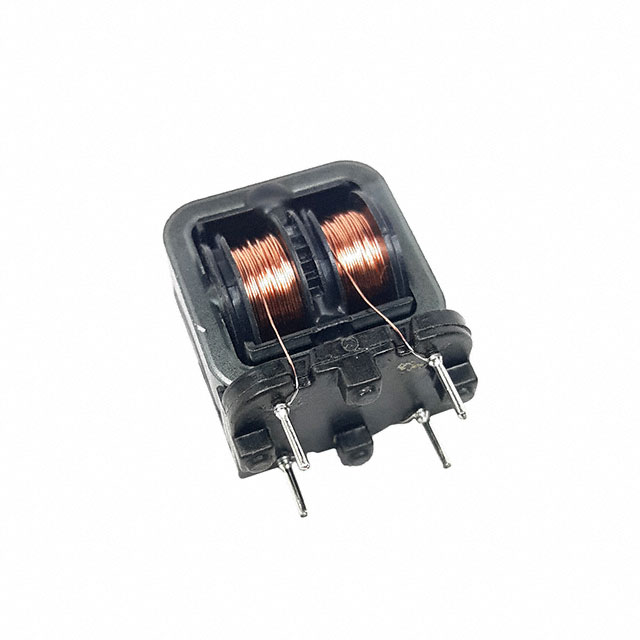

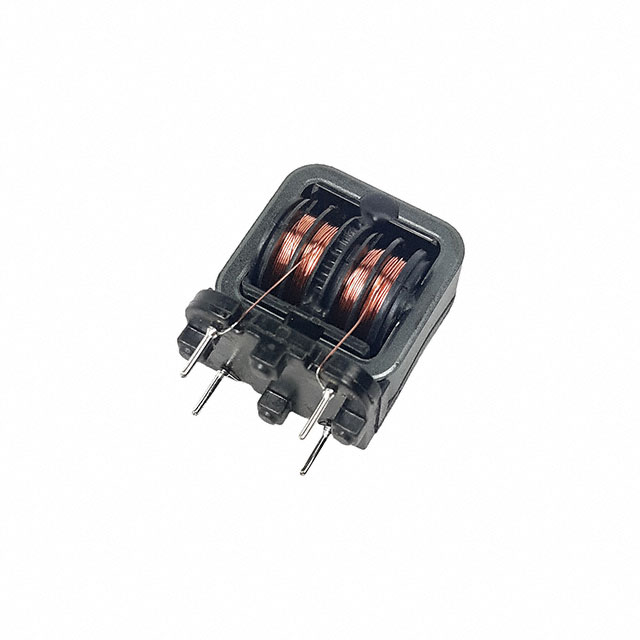

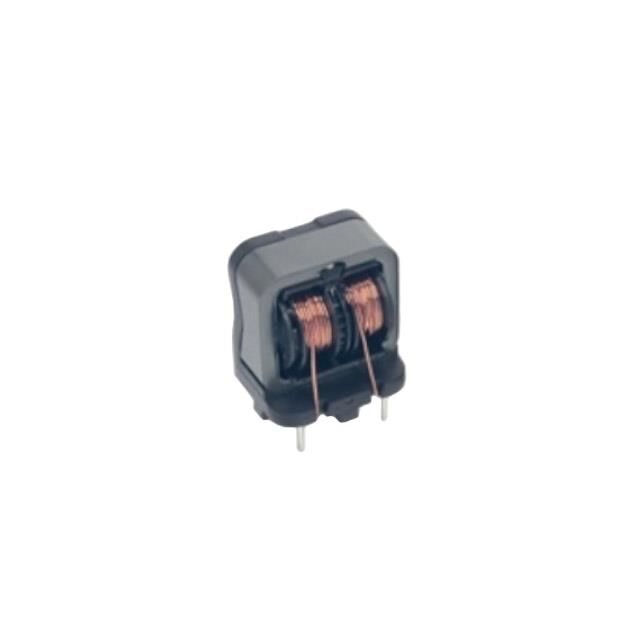

SSR21NV Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKE, 16MH, 1A

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance @ Frequency	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)	Height (Max) [z]	Height (Max) [z]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Package / Case	Voltage Rating - AC	DC Resistance (DCR) (Max) [Max]
KEMET SSR21NVS-10160	Through Hole	0.866 "	16 mm	0.63 "	22 mm	10 kHz 16 mH	1 A	290 mOhm	1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V
KEMET SSR21NVS-12135	Through Hole	0.866 "	16 mm	0.63 "	22 mm	10 kHz 13.5 mH	1.2 A		1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V	240 mOhm
KEMET SSR21NVS-M25064	Through Hole	0.866 "	16 mm	0.63 "	22 mm	6.4 mH	2.5 A	90 mOhm	1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V
KEMET SSR21NV-20064	Through Hole	0.866 "	16 mm	0.63 "	22 mm	6.4 mH	2 A	90 mOhm	1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V
KEMET SSR21NVS-M10345	Through Hole	0.866 "	16 mm	0.63 "	22 mm	34.5 mH	1 A	510 mOhm	1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V
KEMET SSR21NVS-20034	Through Hole	0.866 "	16 mm	0.63 "	22 mm	3.4 mH	2 A	70 mOhm	1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V
KEMET SSR21NV-M30064	Through Hole	0.866 "	16 mm	0.63 "	22 mm	6.4 mH	3 A		1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V	80 mOhm
KEMET SSR21NVS-08235	Through Hole	0.866 "	16 mm	0.63 "	22 mm	23.5 mH	800 mA		1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V	420 mOhm
KEMET SSR21NV-10250	Through Hole	0.866 "	16 mm	0.63 "	22 mm	10 kHz 25 mH	1 A		1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V	360 mOhm
KEMET SSR21NV-M041500	Through Hole	0.866 "	16 mm	0.63 "	22 mm	150 mH	400 mA		1.063 in	27 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	250 V	2 Ohm
