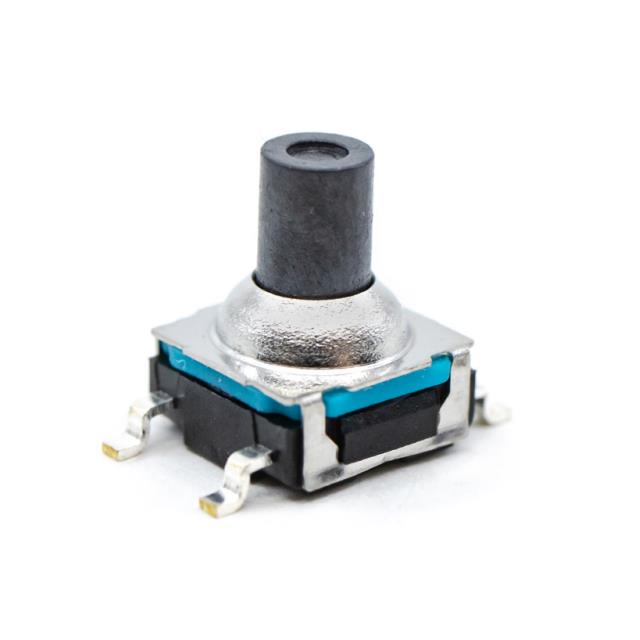

TL6170 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Contact Rating @ Voltage | Actuator Orientation | Ingress Protection | Mounting Type | Illumination | Termination Style | Switch Function | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Height off PCB, Vertical [z] | Outline [x] | Outline [y] | Circuit | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.4 mm | 0.05 A 12 VDC | Top Actuated | IP67 - Dust Tight Waterproof | Surface Mount | Non-Illuminated | Gull Wing | Off-Mom | 180 gf | 85 °C | -40 C | 7.7 mm | 6.3 mm | 6.3 mm | SPST-NO | Standard |

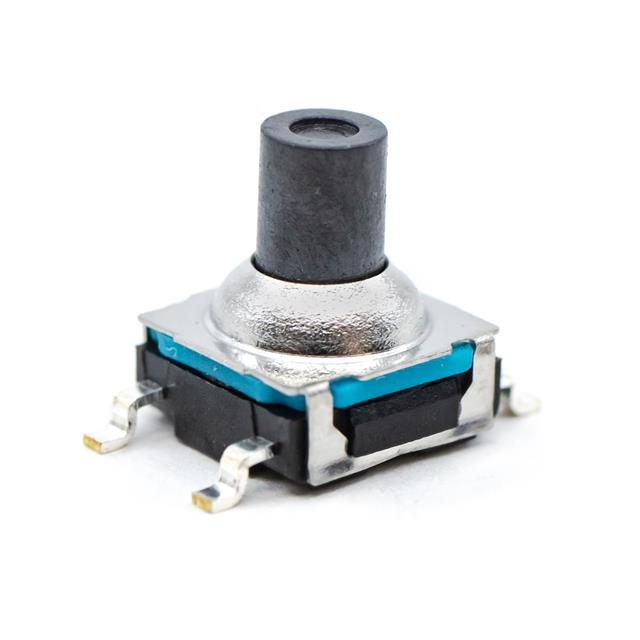

 E-Switch | 0.4 mm | 0.05 A 12 VDC | Top Actuated | IP67 - Dust Tight Waterproof | Surface Mount | Non-Illuminated | Gull Wing | Off-Mom | 0.25 kgf | 85 °C | -40 C | 7.2 mm | 6.3 mm | 6.3 mm | SPST-NO | Standard |
