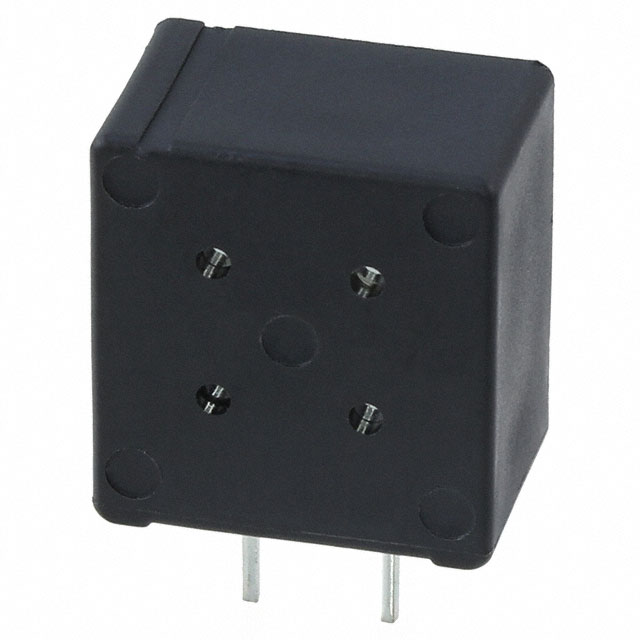

FM Series

Manufacturer: KEMET

Catalog

SUPERCAPACITORS / ULTRACAPACITORS 5.5V 0.022F -20/+80% LS=5MM

Part	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max)	Termination	Lead Spacing	Lead Spacing	Tolerance [Max]	Tolerance [Min]	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
KEMET FME0H223ZF	22000 µF	0.472 in	12 mm	PC Pins	0.197 "	5 mm	80 %	-20 %	5.5 V	5 mm	10.5 mm	0.413 in	0.197 "	Radial	1000 Hrs	40 Ohms	-25 °C	70 °C	Through Hole
KEMET FM0V104ZF	0.1 F	0.472 in	12 mm	PC Pins	0.197 "	5 mm	80 %	-20 %	3.5 V	5 mm	10.5 mm	0.413 in	0.197 "	Radial		100 Ohm	-25 °C	70 °C	Through Hole
KEMET FM0H103ZF	10000 µF	0.472 in	12 mm	PC Pins	0.197 "	5 mm	80 %	-20 %	5.5 V	5 mm	10.5 mm	0.413 in	0.197 "	Radial		300 Ohm	-25 °C	70 °C	Through Hole
KEMET FMR0H104ZF	0.1 F			PC Pins	0.197 "	5 mm	80 %	-20 %	5.5 V		10.5 mm	0.413 in	0.256 "	Radial	1000 Hrs	50 Ohms	-40 C	85 °C	Through Hole	11.5 mm	0.453 in	6.5 mm
KEMET FM0H473ZF	47 mF			PC Pins	0.197 "	5 mm	80 %	-20 %	5.5 V	5 mm	10.5 mm	0.413 in	0.197 "	Radial	1000 Hrs	200 Ohm	-25 °C	70 °C	Through Hole	11.5 mm	0.453 in
