SM8S2 Series
Manufacturer: Bourns Inc.
Beta
⌘K

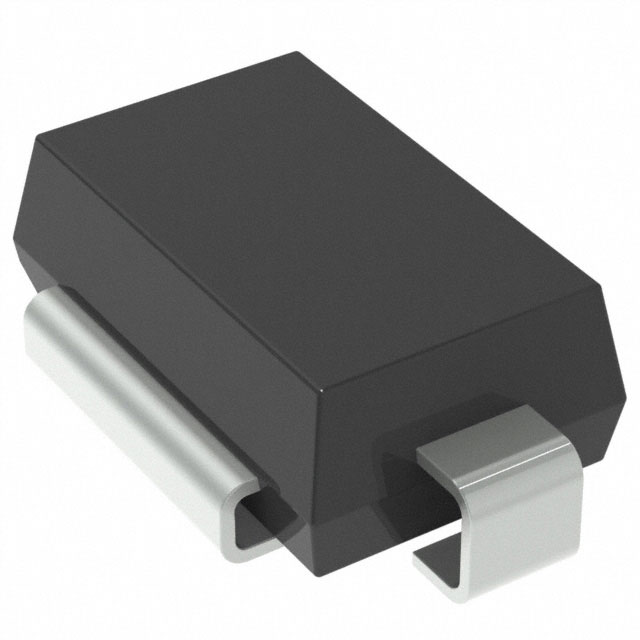

TVS DIODE SINGLE BI-DIR 26V 6.6KW AUTOMOTIVE AEC-Q101 2-PIN(1+TAB) DO-218 T/R
| Part | Grade | Bidirectional Channels [custom] | Power - Peak Pulse | Power - Peak Pulse | Qualification | Power Line Protection | Type | Supplier Device Package | Voltage - Clamping (Max) @ Ipp [Max] | Mounting Type | Voltage - Breakdown (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current - Peak Pulse (10/1000µs) | Voltage - Reverse Standoff (Typ) | Unidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Automotive | 1 | 6600 W | 6.6 kW | AEC-Q101 | Zener | DO-218 | 42.1 V | Surface Mount | 28.9 V | 175 °C | -55 °C | DO-218AB | 157 A | 26 V | ||
 Bourns Inc. | Automotive | 6600 W | 6.6 kW | AEC-Q101 | Zener | DO-218 | 35.5 V | Surface Mount | 24.4 V | 175 °C | -55 °C | DO-218AB | 186 A | 22 V | 1 |
