16SVPF Series

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 1000 ΜF, 16 V, RADIAL CAN - SMD, 0.016 OHM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Capacitance	Voltage - Rated	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Package / Case	Lifetime @ Temp.	Applications	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Height - Seated (Max)

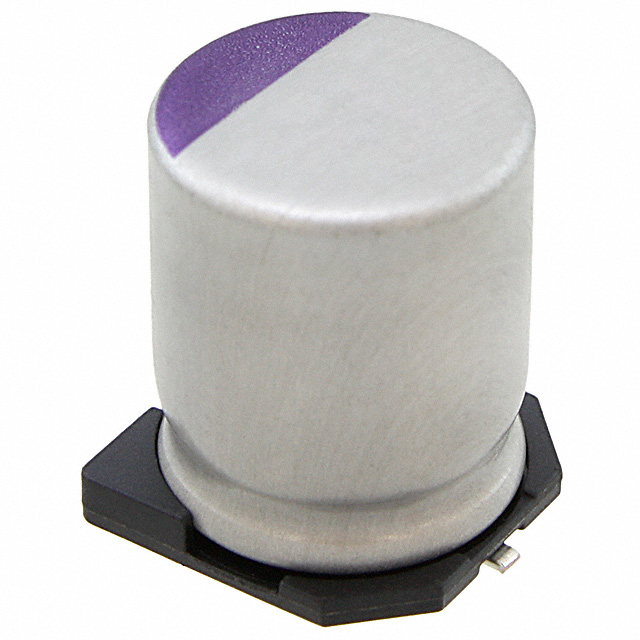

Panasonic Electronic Components 16SVPF1000MX	-55 C	105 ░C	Polymer	0.406 "	0.406 in	10.3 mm	10.3 mm	0.413 "	10.5 mm	20 %	1000 µF	16 V	16 mOhm	0.394 in	10 mm	Surface Mount	Radial Can - SMD	5000 Hrs	General Purpose	4.3 A	215 mA

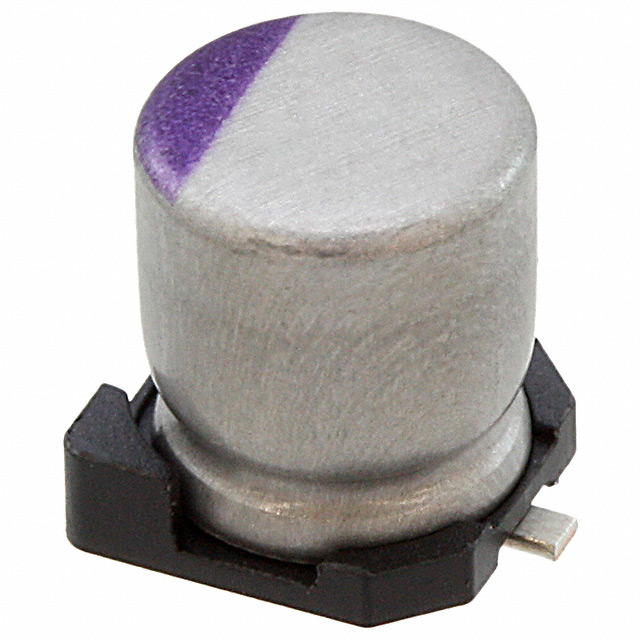

Panasonic Electronic Components 16SVPF82M	-55 C	105 ░C	Polymer			0.209 in 5.3 mm	0.209 in 5.3 mm	0.236 "		20 %	0.082 mF	16 V	27 mOhms	0.197 in	5 mm	Surface Mount	Radial Can - SMD	5000 Hrs	General Purpose	3000 mA	150 mA	6 mm

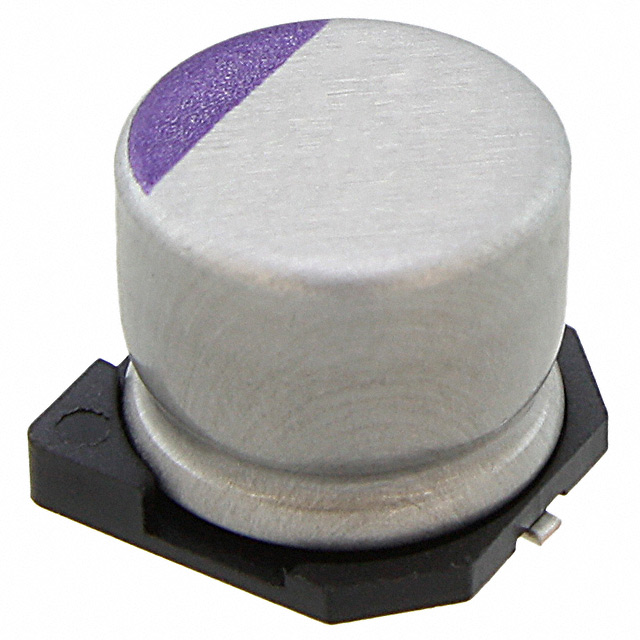

Panasonic Electronic Components 16SVPF270M	-55 C	105 ░C	Polymer	0.327 in	0.327 in	8.3 mm	8.3 mm	0.276 in	7 mm	20 %	270 µF	16 V	22 mOhms	0.315 in	8 mm	Surface Mount	Radial Can - SMD	5000 Hrs	General Purpose	3.3 A	165 mA
Panasonic Electronic Components 16SVPF560MX	-55 C	105 ░C	Polymer	0.327 in	0.327 in	8.3 mm	8.3 mm	0.413 "	10.5 mm	20 %	560 µF	16 V		0.315 in	8 mm	Surface Mount	Radial Can - SMD	5000 Hrs	General Purpose	3.9 A
Panasonic Electronic Components 16SVPF560M	-55 C	105 ░C	Polymer	0.327 in	0.327 in	8.3 mm	8.3 mm	0.472 in		20 %	560 µF	16 V	14 mOhms	0.315 in	8 mm	Surface Mount	Radial Can - SMD	5000 Hrs	General Purpose	4.95 A	247.5 mA	12 mm
