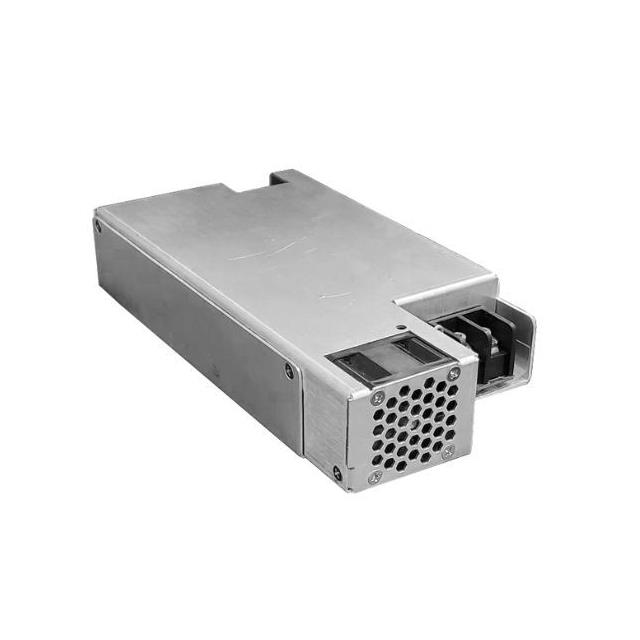

ASM550 Series
Manufacturer: Astrodyne TDI
Beta
⌘K
AC/DC CONVERTER 54V 567W
| Part | Approval Agency | Minimum Load Required | Mounting Type | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Features | Number of Outputs | Efficiency | Standard Number | Applications | Power (Watts) | Current - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type | Voltage - Output 1 | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Astrodyne TDI | CB CE cTUVus TUV | Chassis Mount | 4000 V | 70 °C | -20 °C | 275 VAC 380 VDC | 80 VAC 110 VDC | Standby Output Universal Input | 1 | 92 % | 60601-1 | Medical | 567 W | 10.5 A | 7 " | 40.1 mm | 1.58 in | 110.7 mm | 4.36 in | 177.8 mm | Enclosed | 54 V | ||
Astrodyne TDI | CB CE cTUVus TUV | Chassis Mount | 4000 V | 70 °C | -20 °C | 275 VAC 380 VDC | 80 VAC 110 VDC | Standby Output Universal Input | 1 | 92 % | 60601-1 | Medical | 551 W | 15.3 A | 7 " | 40.1 mm | 1.58 in | 110.7 mm | 4.36 in | 177.8 mm | Enclosed | 36 V | ||
Astrodyne TDI | CB CE cTUVus TUV | Chassis Mount | 4000 V | 70 °C | -20 °C | 275 VAC 380 VDC | 80 VAC 110 VDC | Standby Output Universal Input | 1 | 90 % | 60601-1 | Medical | 551 W | 36.7 A | 7 " | 40.1 mm | 1.58 in | 110.7 mm | 4.36 in | 177.8 mm | Enclosed | 15 V | ||
Astrodyne TDI | CB CE cTUVus TUV | Chassis Mount | 4000 V | 70 °C | -20 °C | 275 VAC 380 VDC | 80 VAC 110 VDC | Standby Output Universal Input | 1 | 90 % | 60601-1 | Medical | 540 W | 45 A | 7 " | 40.1 mm | 1.58 in | 110.7 mm | 4.36 in | 177.8 mm | Enclosed | 12 V | ||
Astrodyne TDI | CB CE cTUVus TUV | Chassis Mount | 4000 V | 70 °C | -20 °C | 275 VAC 380 VDC | 80 VAC 110 VDC | Standby Output Universal Input | 1 | 92 % | 60601-1 | Medical | 552 W | 11.5 A | 7 " | 40.1 mm | 1.58 in | 110.7 mm | 4.36 in | 177.8 mm | Enclosed | 48 V |
