9457 Series
Manufacturer: Belden Inc.
Beta
⌘K

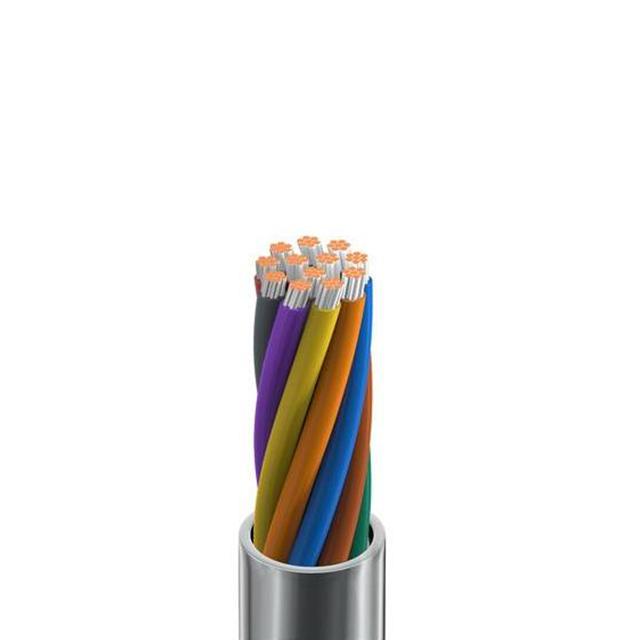

CABLE 12COND 20AWG CHROME
| Part | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Material | Voltage | Usage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Ratings | Cable Type | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 20 AWG | 8.59 mm | 0.338 in | 0.035 in | 0.889 mm | 80 °C | -20 ░C | Chrome | Copper Tinned | 300 VDC | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Multi-Conductor | 12 | ||
 Belden Inc. | 20 AWG | 8.59 mm | 0.338 in | 0.035 in | 0.889 mm | 80 °C | -20 ░C | Chrome | Copper Tinned | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Multi-Conductor | 12 | 100 ft | 30.5 m |
