1478763 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN BACKSHELL 15POS 45DEG SHLD

Part	Primary Material	Number of Positions	Shielding	Cable Type	Features	Compatible Shell Size	Compatible D-Sub Size	Hardware	Color	Cable Exit	Material	Accessory Type	Plating

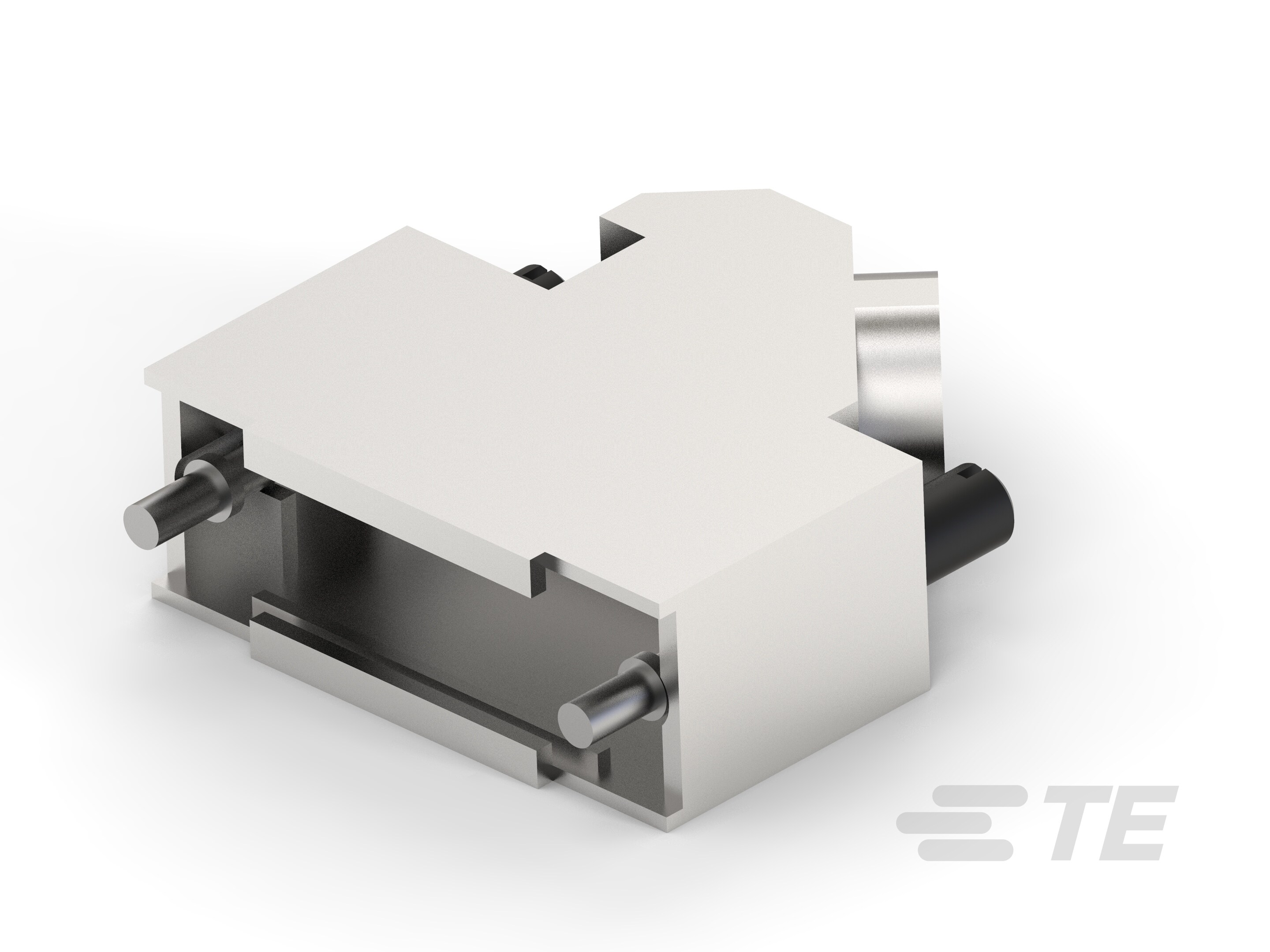

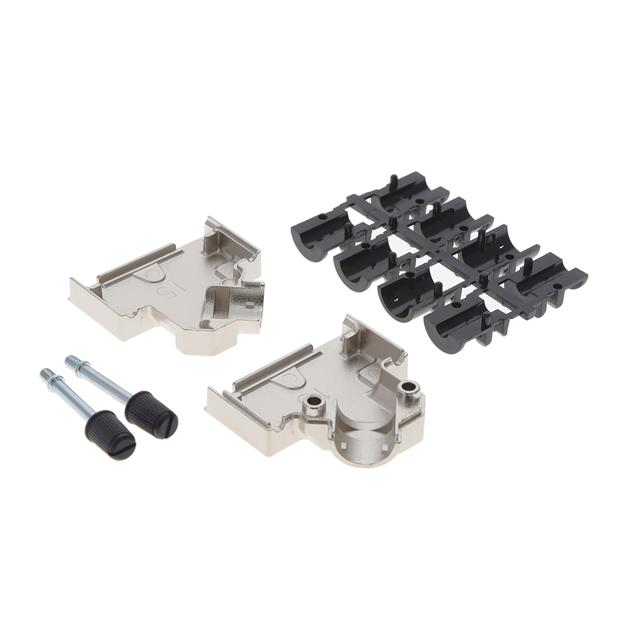

TE Connectivity AMP Connectors 4-1478763-6	Metal	15	Shielded	Round	Mating Screws M3	A	15pos HD26pos	Assembly Hardware Strain Relief	Silver	45 °	Zinc	Two Piece Backshell	Nickel
TE Connectivity AMP Connectors 4-1478763-7	Metal	25	Shielded	Round	Mating Screws M3	B	25pos HD44pos	Assembly Hardware Strain Relief	Silver	45 °	Zinc	Two Piece Backshell	Nickel

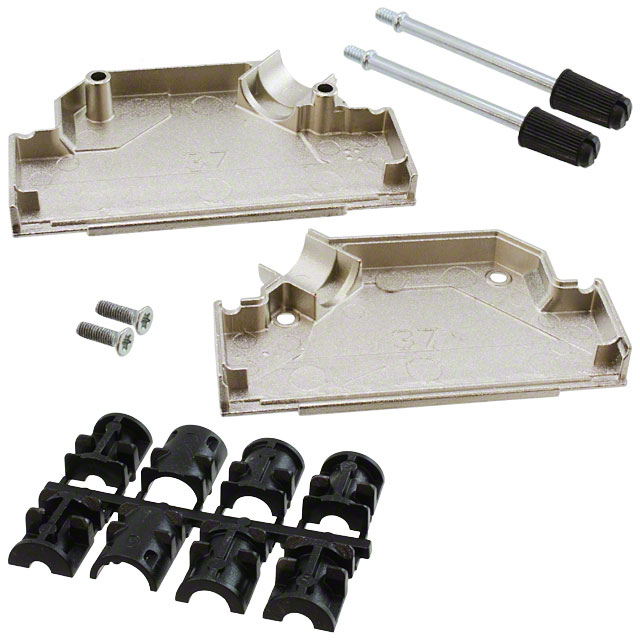

TE Connectivity AMP Connectors 5-1478763-4	Metal	37	Shielded	Round	Mating Screws 4-40	C	37pos HD62pos	Assembly Hardware Grommets Strain Relief	Silver	45 °	Metal Zinc	Two Piece Backshell	Nickel
TE Connectivity AMP Connectors 1478763-9	Metal	9	Shielded	Round	Mating Screws 4-40	E	9pos HD15pos	Assembly Hardware Grommets Strain Relief	Silver	45 °	Metal Zinc	Two Piece Backshell	Nickel

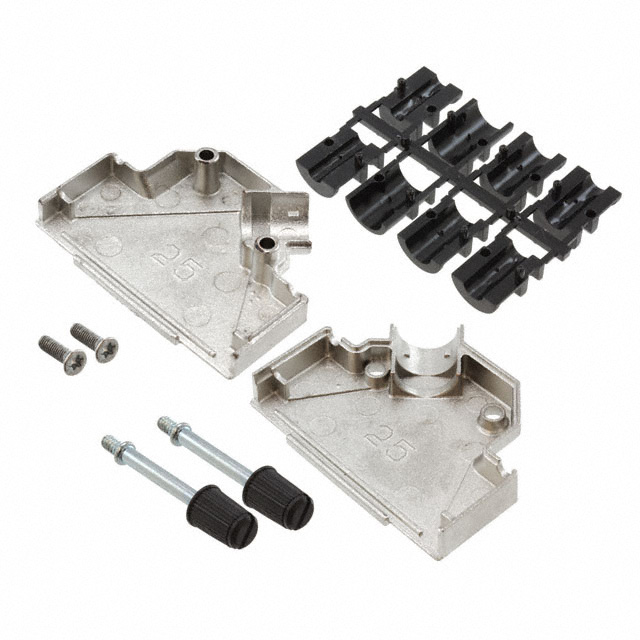

TE Connectivity AMP Connectors 2-1478763-5	Metal	25	Shielded	Round	Mating Screws 4-40	B	25pos HD44pos	Assembly Hardware Grommets Strain Relief	Silver	45 °	Metal Zinc	Two Piece Backshell	Nickel
TE Connectivity AMP Connectors 1-1478763-5	Metal	15	Shielded	Round	Mating Screws 4-40	A	15pos HD26pos	Assembly Hardware Grommets Strain Relief	Silver	45 °	Metal Zinc	Two Piece Backshell	Nickel

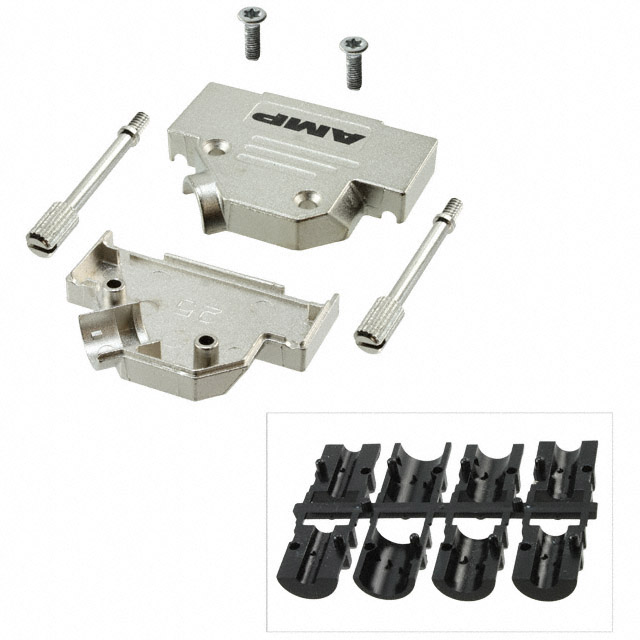

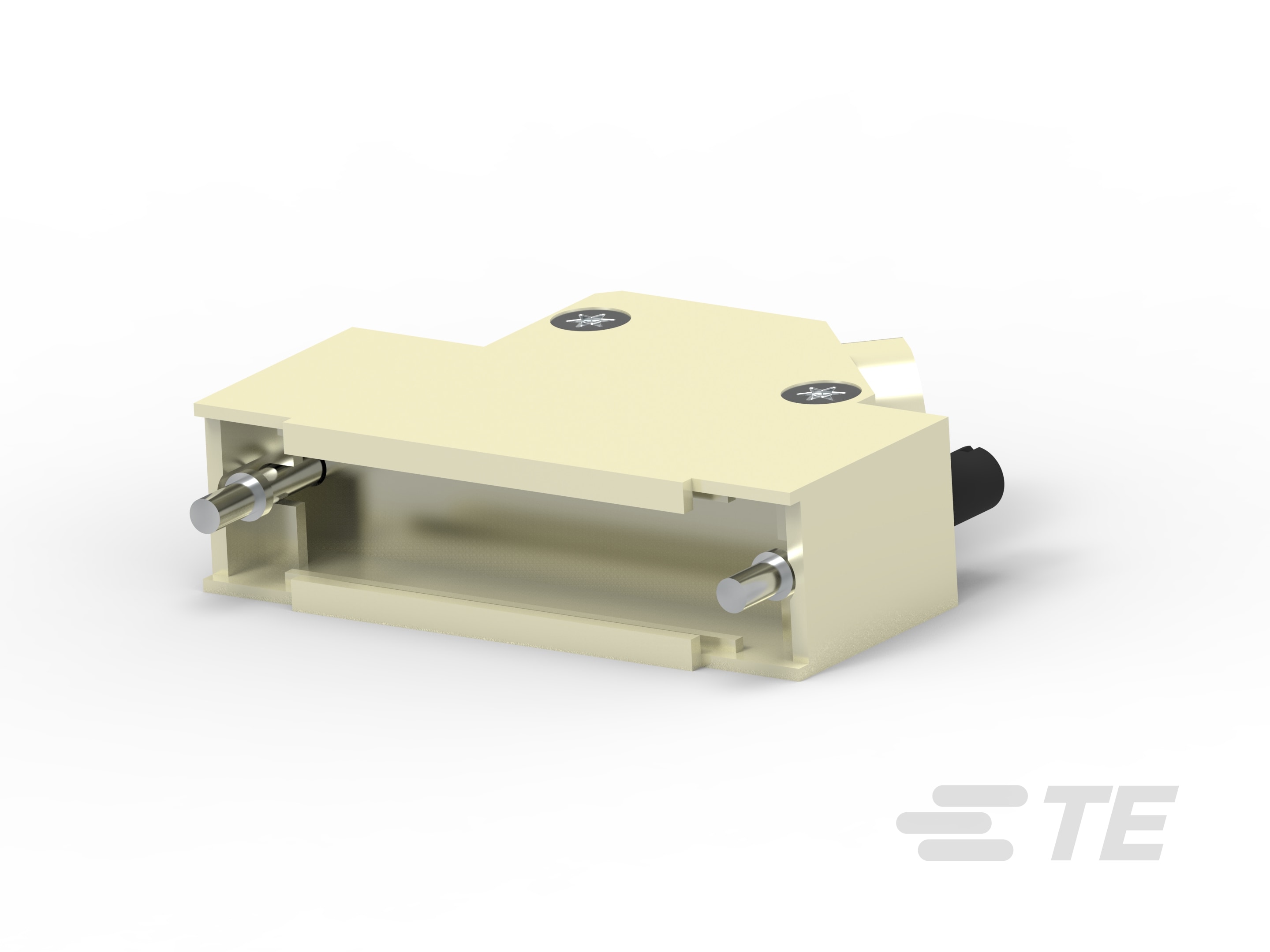

TE Connectivity AMP Connectors 5-1478763-3	Metal	25	Shielded	Round	Mating Screws 4-40	B	25pos HD44pos	Assembly Hardware Grommets Strain Relief	Silver	45 °	Metal Zinc	Two Piece Backshell	Nickel
TE Connectivity AMP Connectors 3-1478763-7	Metal	37	Shielded	Round	Mating Screws 4-40	C	37pos HD62pos	Assembly Hardware Grommets Strain Relief	Silver	45 °	Metal Zinc	Two Piece Backshell	Nickel
